Browning®
1228170

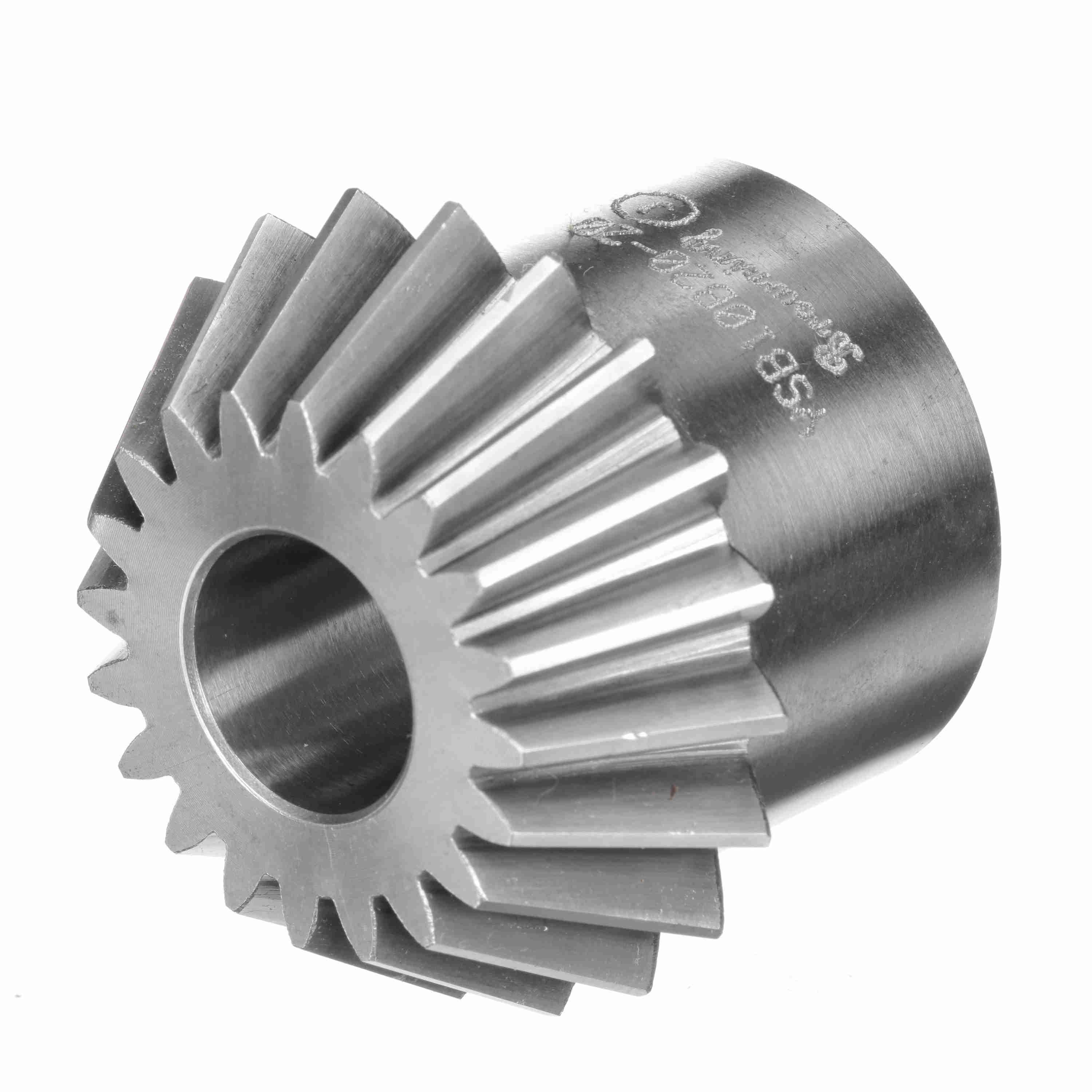

Browning® Bevel Pinion Gear, MPB Straight Tooth, 3/4 to 15/16 in Bore, 2:1 Gear Ratio, 20 Teeth, 10 Diametral Pitch, 2 in Pitch Diameter, 0.71 in Face Width, 1-3/4 in Diameter Hub, 1-51/64 in Hub Projection, 1-51/64 in Overall Length, 20 deg Pressure Angle, Steel

• Browning Gears are rated in accordance with AGMA standards
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided

• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_YSB20B2020_Catalog.pdf
