Browning®
1229491

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

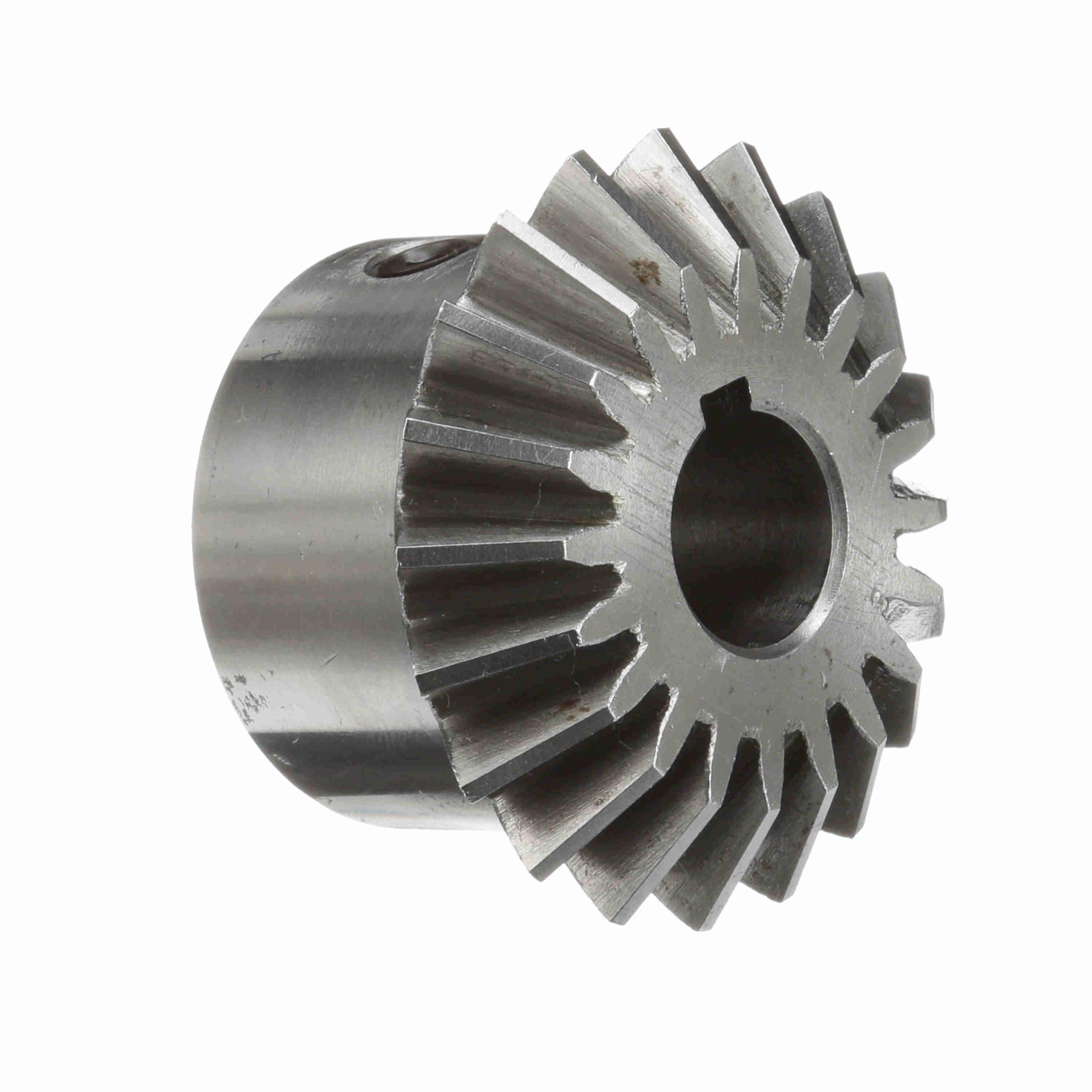

Browning® Miter Gear, Finished Bore Straight Tooth, 5/8 to 7/8 in Bore, 1:1 Gear Ratio, 20 Teeth, 10 Diametral Pitch, 2 in Pitch Diameter, 0.44 in Face Width, 1-5/8 in Diameter Hub, 13/16 in Hub Projection, 1-23/64 in Overall Length, 20 deg Pressure Angle, 3/16 x 3/32 in Keyway, Unhardened Steel

• Browning Gears are rated in accordance with AGMA standards
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
