CR Seals®
402206

V-ring seals (or V-rings) are unique all-rubber seals for rotating shafts and are used in an extremely wide range of applications. The V-ring can be used alone to protect a wide assortment of bearing types from contaminants. They are also often used as secondary seals to protect primary seals in highly contaminated environments.

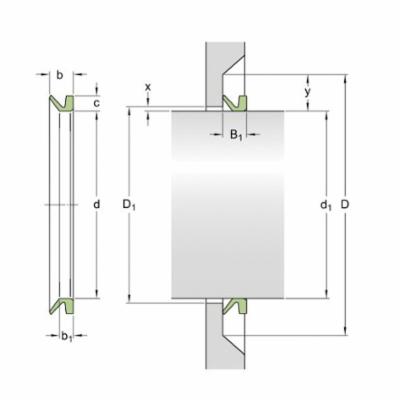

CR Seals® V-Ring Seal, Type VR3, 7.7953 in ID, 9.55 in OD, 0.31 in Width, 8.2677 to 9.1732 in Shaft Diameter, 1600 fpm Speed, 5 deg at 3000 fpm/1 to 4 deg at 2400 fpm Misalignment, -40 to 400 deg F, 10 psi Pressure, FKM

• V-ring consists of a seal body, flexible and conical-shaped sealing lip and an integral, resilient hinge
• It is stretched and installed directly on the shaft, where it is held in place by the inherent tension of the seal body
• It rotates with the shaft and seals axially against a stationary counter face

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_524371_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_402206_Specification_Sheet.pdf
