Micron® 32-513795-C114

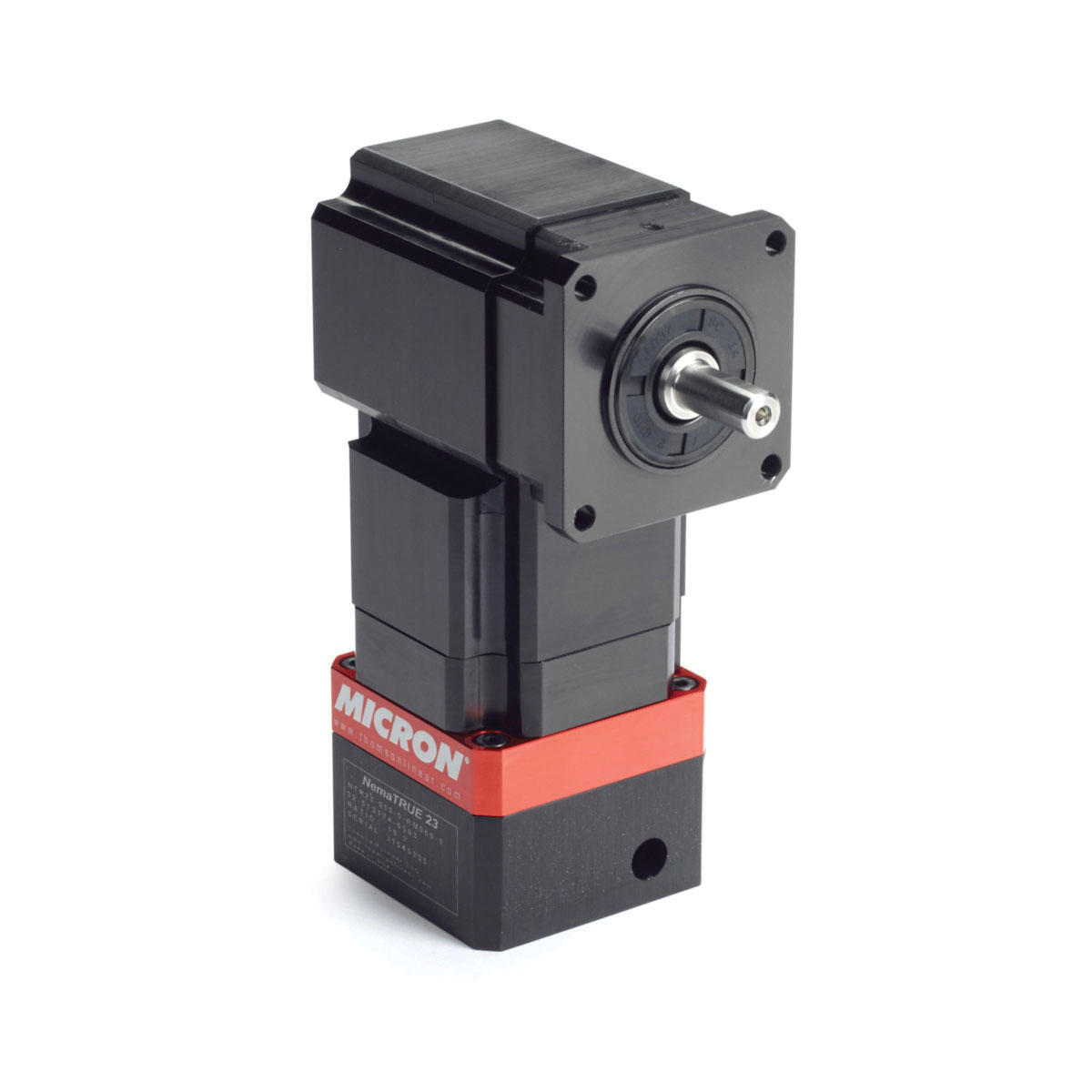

Micron® TRUE Planetary™ 32-513795-C114 NemaTRUE™ Cyclical-Duty Spur Gearhead, RediMount™ Motor Mounting System Input, Single Shaft Output, 50:1 Gear Ratio, 100 rpm Maximum Output, 55 in-lb Torque Rating
- Manufacturer: Thomson Industries
- Brand: Micron®
- BSC Item#: 32-513795C114 MICRON
- MPN: 32-513795-C114
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
In addition to standard NEMA frame sizes, Micron® NemaTRUE™ planetary gearheads are now available in three metric sizes 60, 90 and 115 mm and with the innovative RediMount™ adapter kit, which allows for quick and error-free mounting to any servo motor. Micron® TRUE Planetary™ gearing technology allows for highly efficient and precise torque multiplication for servo motor applications. The NemaTRUE™ has many ratios in stock for immediate delivery.
Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: NemaTRUE™, 50:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 3/8 in Output, 100 rpm Output Maximum Speed, 5000 rpm Input Maximum Speed, 55 in-lb, 15 arcmin Backlash, 3.79 in Centre Distance, 93 % Efficiency, Grease Lubrication, Right Angle Vertical Mount, Anodized Aluminum
- RediMount™ system provides error-free motor installation
- Sealed deep groove ball bearings provide high radial load carrying capability
- HRC 55-60 steel gears provide superior wear resistance and increased backlash integrity

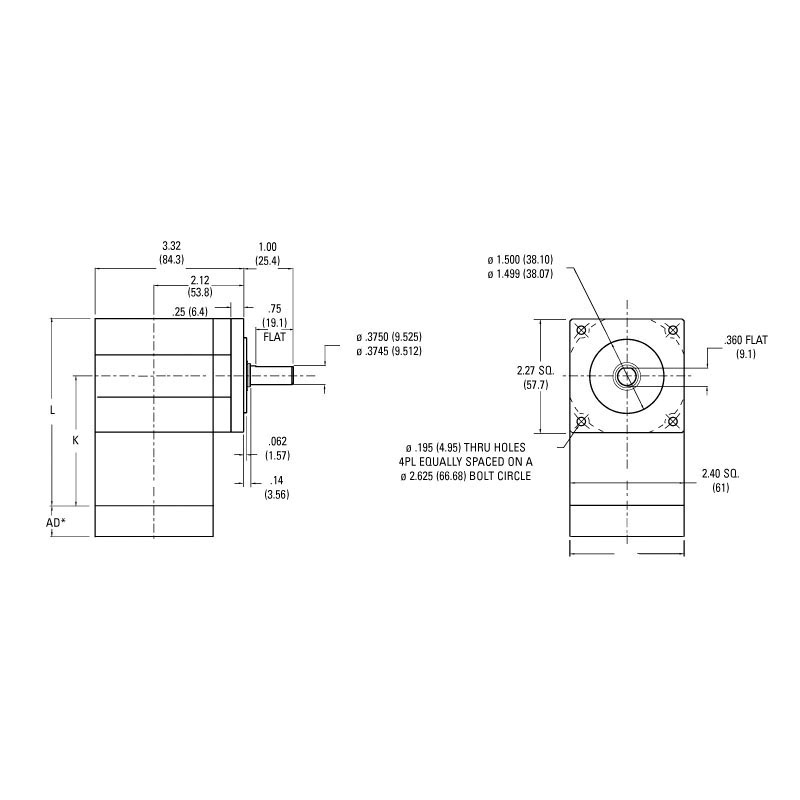

- Adapter length (AD) may vary depending on motor
- Sealed deep groove ball bearing provides precision alignment of sun gear
- Anodized aluminum housing reduces weight and prevents corrosion
- Stainless steel output shaft
- Size 23 frame
- RM060-129 RediMount™ kit
Catalog
| Standard/Approvals | : | AGMA 14|RoHS Compliant |
| Application | : | For high precision motion control applications |
