Sealmaster®
700750

Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

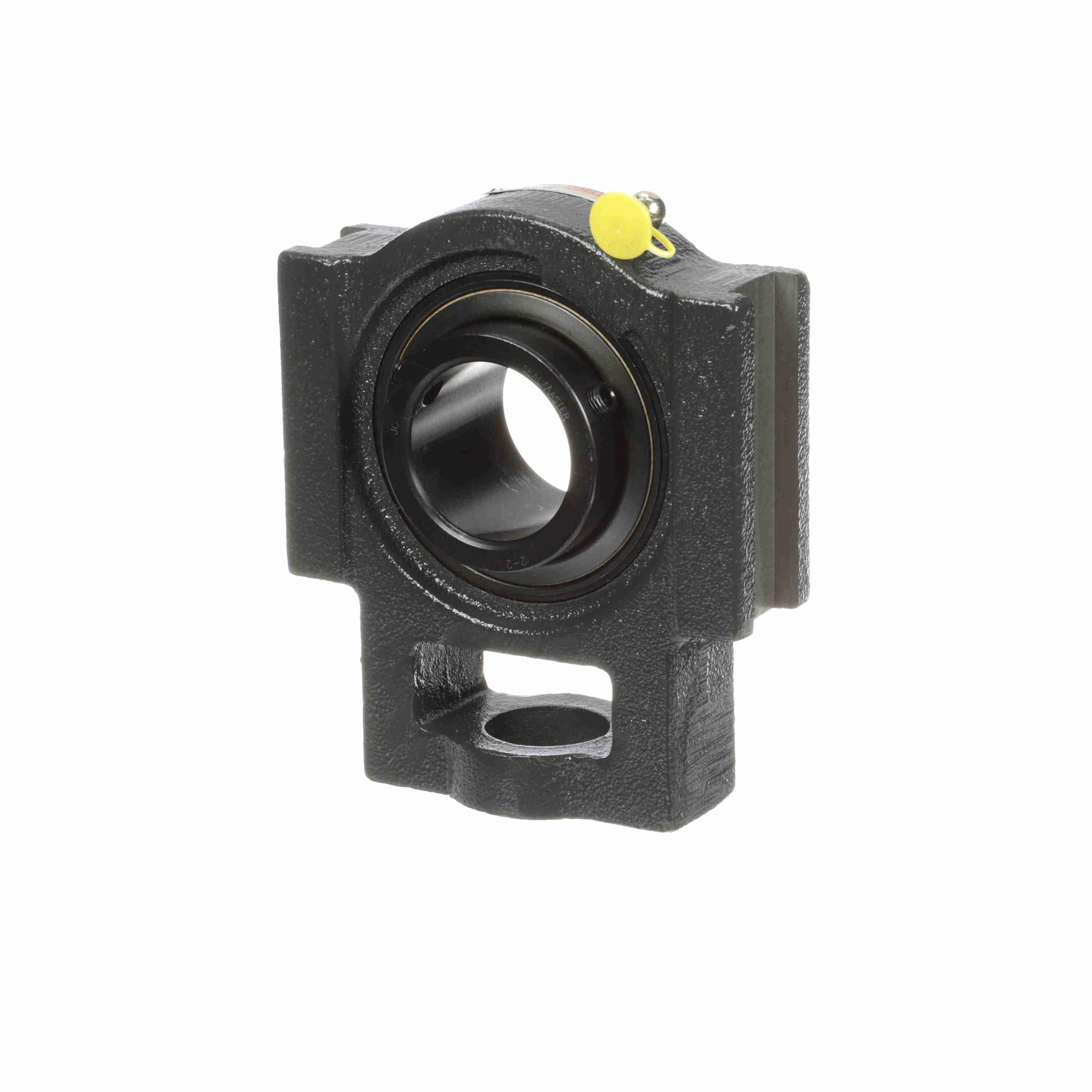

Sealmaster® Take-Up Ball Bearing Unit, Standard Duty Wide Slot, Series: ST Series, 2 in Bore, 6-3/4 in Length, 2-1/4 in Width, 5-3/4 in Height, 9752 lb Dynamic/6601 lb Static Load, For Use With: STH-32 Center Pull Take Up Frame, Steel Bearing, 250 deg F, Uncoated

• Setscrew locking
• GoldPlex® HP grease lubrication
• Cast iron housing
• Metal land riding retainer type
• Wide outer race
• Lock pin and dimple system
• Zone hardened inner race
• Metal nameplate riveted to the housing allows for easy identification even after years of operation

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700171_Installation_Manual.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_703700_Catalog.pdf
