Morse®
XG1010

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

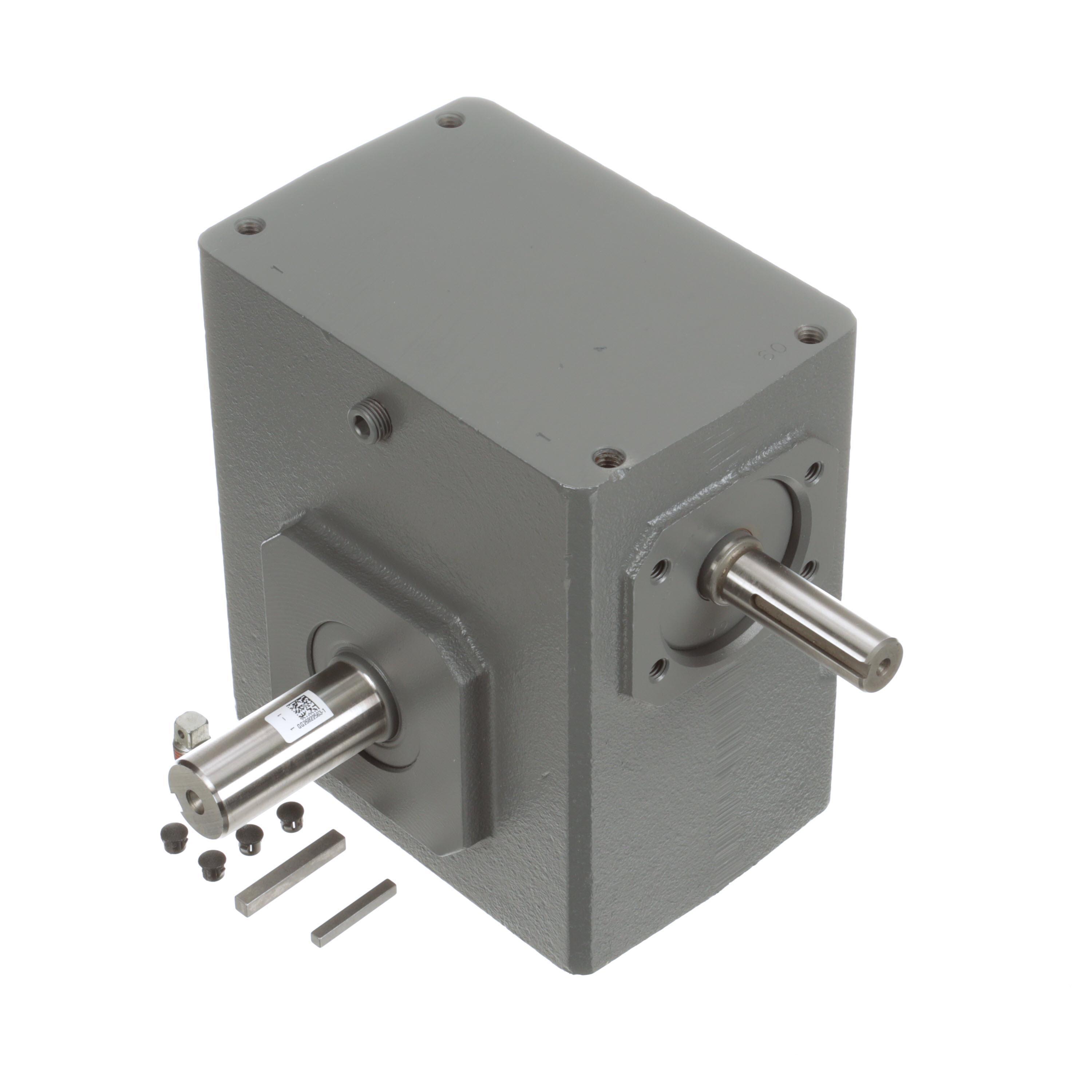

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 60:1 Gear Ratio, 1 hp, Universal Shaft-In Input, Left Output, 0.75 in Dia x 2.38 in L Input, 1-1/8 in Dia x 2.73 in L Output, 29.1 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 43.79 in-lb Input/29.1 in-lb Output, 2.62 in Centre Distance, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Universal Mount, Cast Iron, 10.41 in L x 8.74 in W x 8 in H

• Rugged cast iron housing provides maximum strength and dependability
• High lead angle worm is case hardened, ground and polished
• Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
• Forged bronze worm gears provide optimum balance of strength and wear
• Heavy duty tapered roller bearings on all output shafts

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Morse_262UL5_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Morse_XB1095_Installation_Manual.pdf
