Martin
9TSDS14

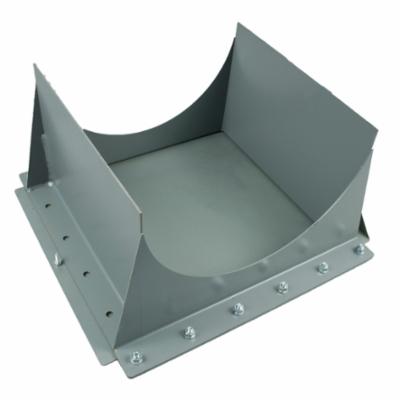

Martin 9TSDS14 Plain Standard Discharge Fixed Spout With Slide, For Use With Discharge and Gate, 10 in Spout Width and Length (Opening), 12 Bolt, 0.105 in THK Spout, 9 in Conveyor Dia,19 in W Open, 0.313 in H Slide, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 9TSDS14 MART
  • MPN: 9TSDS14
  • UPC: 697950128306
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Standard discharge spouts with slide and slide guides are fabricated in proportion to the size and thickness of the corresponding trough. They can be furnished loose for attachment in the field or welded to the trough. The bottom flanges of the spout are drilled per CEMA standards.

Martin Fixed Spout, Plain Standard Discharge, For Use With: Discharge and Gate, 10 in Spout Width and Length (Opening), 12 Bolt, 0.105 in THK Spout, 9 in Conveyor Dia,19 in W Open, 0.313 in H Slide, Steel, Protective Coating, 7-1/8 in W

  • Made from carbon steel, stainless steel, galvanized or other materials upon request
