Sealmaster®
700949

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

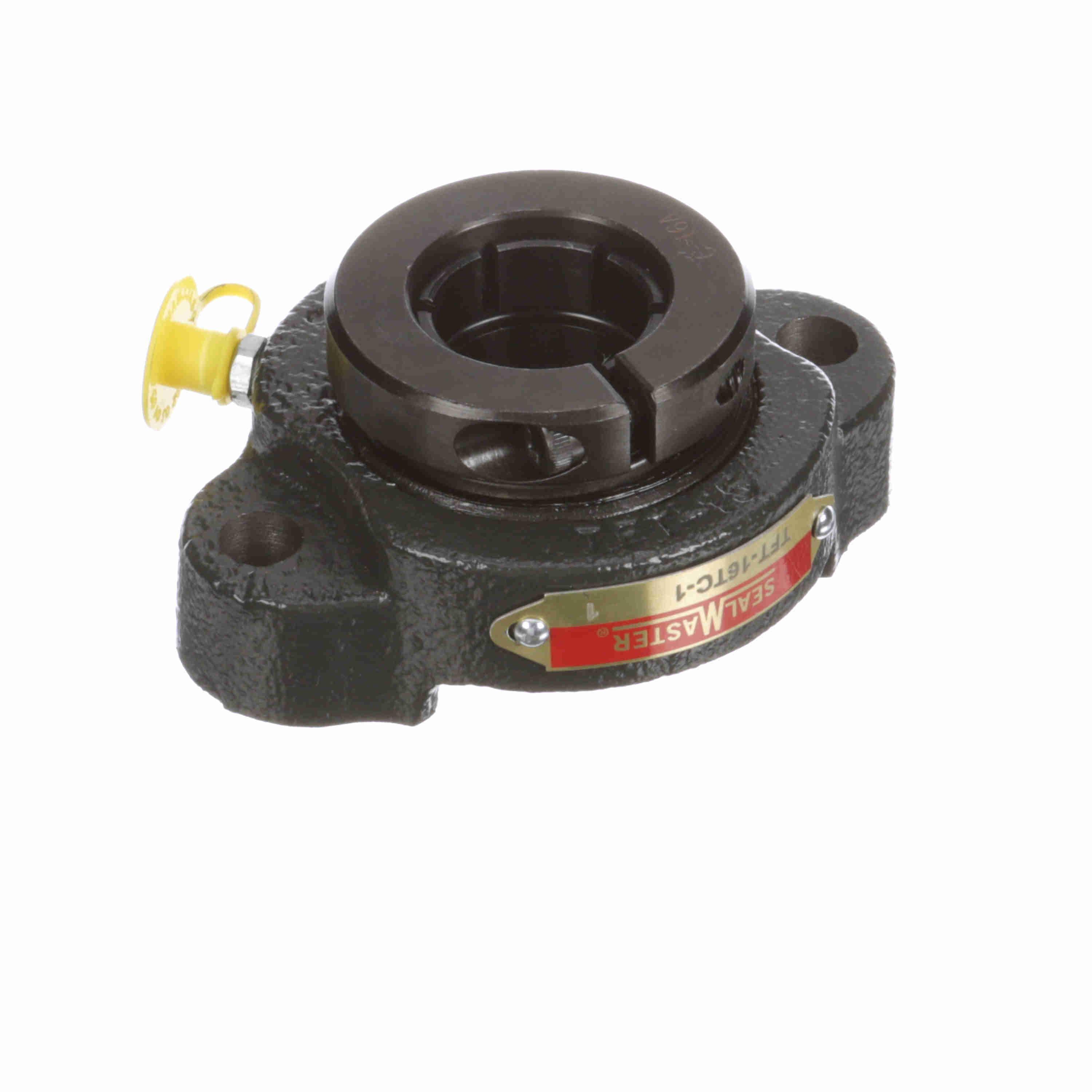

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Standard-Duty, Series: TFT, 1 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-1/2 in Overall Depth, 2-3/4 in Overall Height, Skwezloc® Locking Device, Steel Bearing, Nitrile rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 6350 rpm Maximum, -20 to 220 deg F, Uncoated

• Wide outer ring
• Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
• Zone hardened inner race
• 52100 black oxide coated steel bearing
• Skwezloc concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
