Timken®
23332EMBW800W848AC4

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5 deg of shaft misalignment can be accommodated.

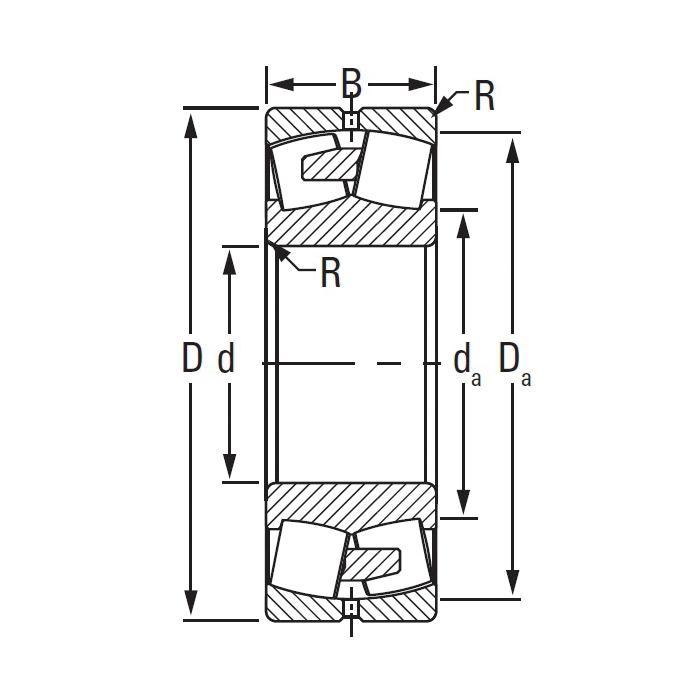

Timken®, 23332EMBW800W848AC4, Spherical Roller Bearing, Straight Bore Type EMB, Series: 233, 160 mm Bore, 340 mm OD, 2 Rows, 136 mm Width, Open Closure, 449000 lb Dynamic/568000 lb Static Load, Steel Bearing, Brass Cage, 900 rpm Grease/990 rpm Oil Maximum, -65 to 392 deg F, Polished Chrome

• Enhanced surface finishes
• Industry leading load ratings
• 1-piece, machined-brass, land riding, finger-type cage
• W848A special features
• C4 radial internal clearance
• Run at consistently lower temperatures than same size competitive bearings for greater reliability
• Multiple cage designs including a wide range of both steel and brass and help reduce stress at high shock loads or speeds and provide strong contaminant purge
• Optimized internal geometries deliver the highest load and speed ratings in the industry
• EMB bearings supersede YMB bearings

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_24068KEMBW33W45A_Catalog.pdf
