Browning®
PG0004

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

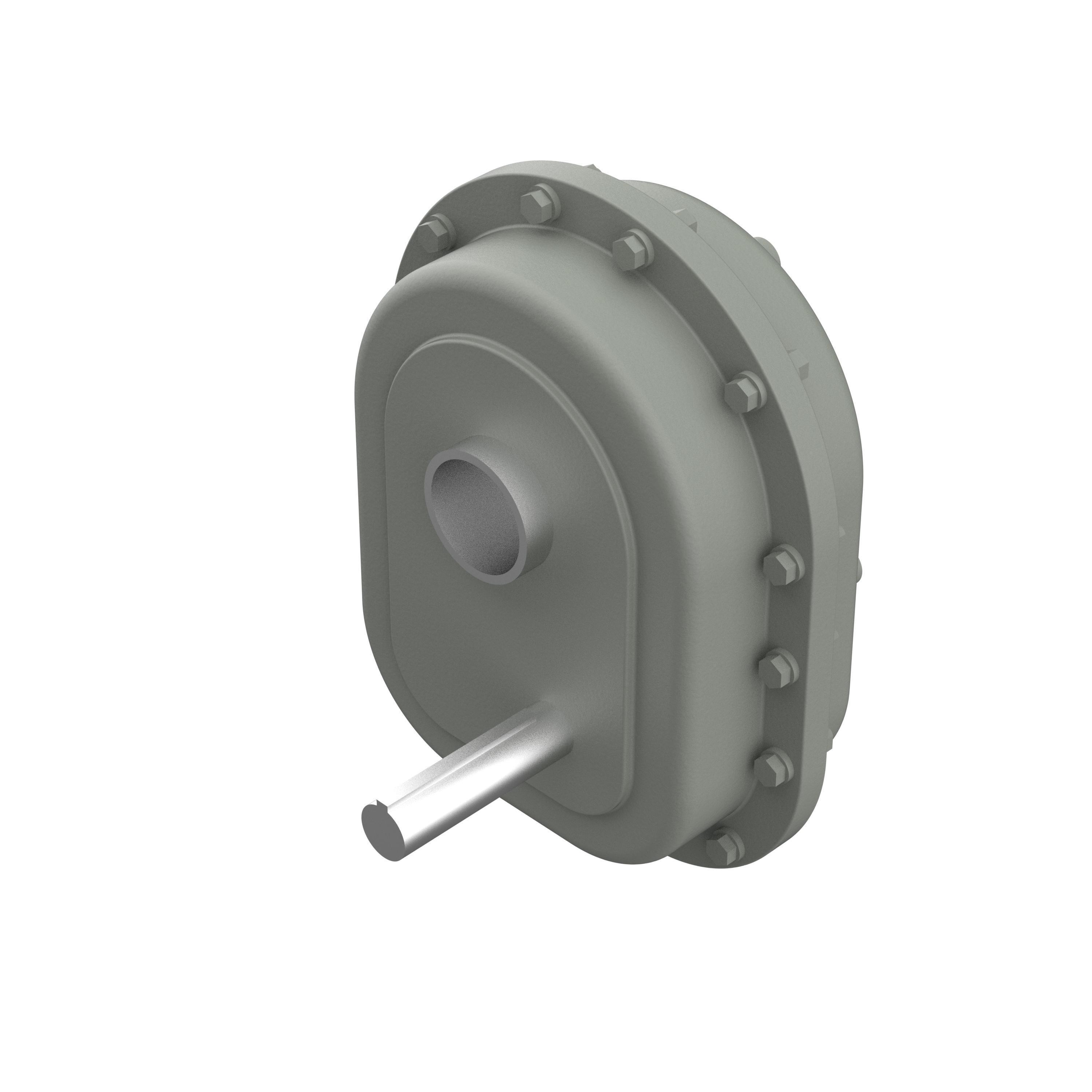

Browning® TorqTaper® Plus Shaft Mount Reducer, Type SMTP, 25:1 Gear Ratio, 1 hp, Solid Shaft Input, Tapered Bore Output, 2 in Dia x 7.45 in L Input, 3-7/16 in Output, 70 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/900.34 in-lb Output, 7.78 in Centre Distance, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, Cast Iron, 19.04 in L x 18.66 in W x 24.37 in H

• Tapered stabilizer ring minimizes wobble and resists fretting corrosion
• End cap seals quill end from contamination
• Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
• Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement
• Options and Accessories, Complete range of motor mounts, belt guards, fan kits, backstops, and screw conveyor drive options

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_PB0001_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_PL9022_Installation_Manual.pdf
