Sealmaster®
711330

Sealmaster® PN gold mounted bearings feature high phosphorus, electroless nickel coated steel insert with patented seal technology available in either setscrew or Skwezloc® concentric locking collar, within a variety of 316 stainless casting high strength composite fluoropolymer coated cast iron housing configurations. The high performance triple lip seal is the latest innovation of over 10 patents on sealing technology. The combination of stainless flingers and FKM lip materials provide a strong contaminant resistance and GoldPlex® FG (USDA H1) food grade grease loss. Specially engineered for industries with corrosive wash down environments such as food and beverage, pharmaceuticals and chemical processing. PN gold mounted ball bearings provide outstanding performance in demanding corrosive environments.

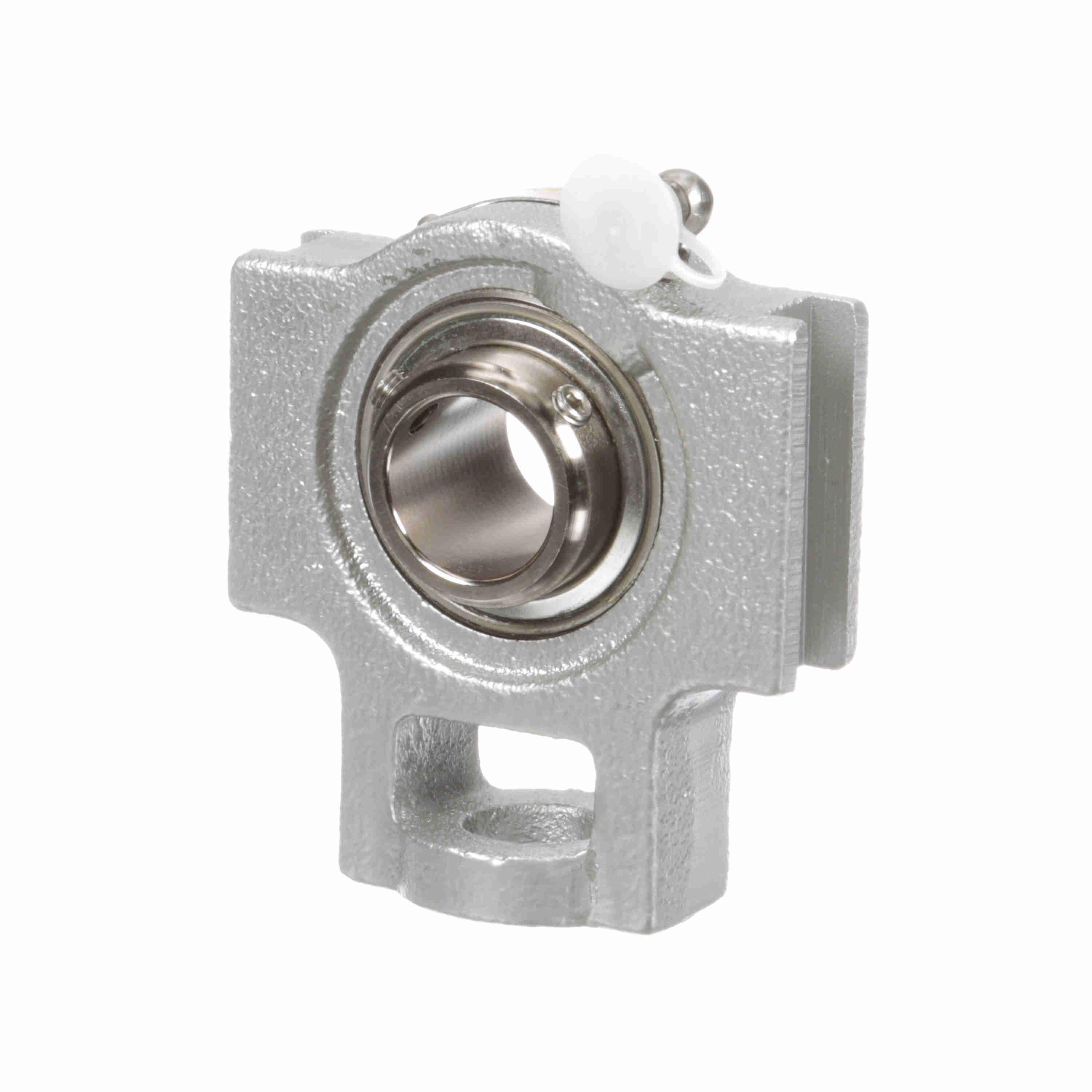

Sealmaster® Take-Up Ball Bearing Unit, Non-Expansion Standard Duty, Series: CRSTF-PN, 3/4 in Bore, 3-11/16 in Length, 1-3/8 in Width, 3-1/2 in Height, 2611 lb Dynamic Load, For Use With: CRSTF-PN Center Pull Take Up Frame, Steel Bearing, 250 deg F, Fluoropolymer Coated

• Setscrew locking
• High performance seal
• GoldPlex® FG grease lubrication
• Fluoropolymer coated cast iron housing material
• Metal land riding retainer type
• Corrosion resistant coated
• Wide outer race
• Lock pin and dimple system
• Zone hardened inner race
• Backside shield included
• Land riding retainer

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_711229_Catalog.pdf
