RBC®

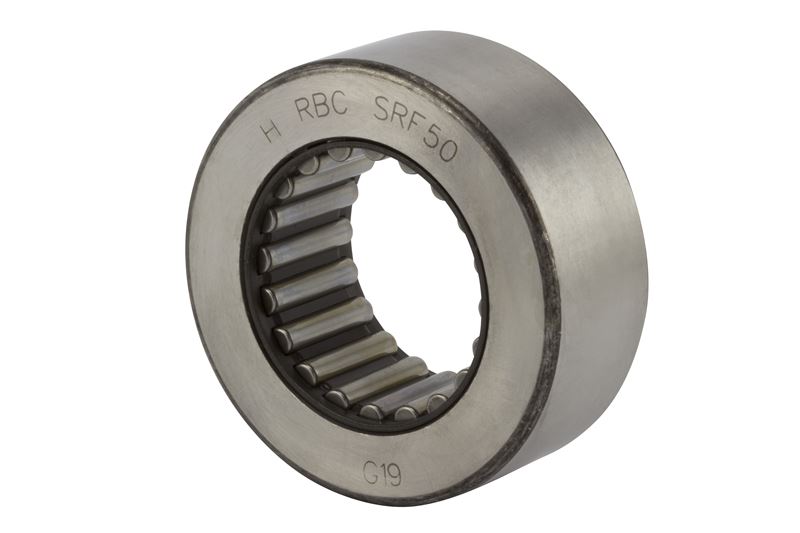

SRF 50

Caged roller followers provide large internal grease storage capacity for applications where relubrication is infrequent. Cage guided rollers and a very heavy outer ring cross section permit operation at high loads and high speeds. Caged roller followers are avail able with and with out seals. The unsealed design provides the additional advantages of very low friction to prevent skidding in lightly loaded applications and provides for flow-through lubrication. Caged roller followers normally mount directly on a hardened and ground pin. RBC® offers a line of Precision Ground Inner Rings to simplify application of caged roller followers.

RBC® Needle Roller Follower, Caged, Series: SRF, 1-3/8 in Bore Dia, 2-1/2 in Roller Dia, 0.995 in Roller Width, 0.995 in Overall Width, 15700 lb, Open Closure, 3900 rpm Maximum, 0 to 250 deg F, Chrome Steel Roller, Uncoated

• Designed with large internal grease storage capacity for applications where relubrication is infrequent
• Cage guided rollers and a very heavy outer ring cross section permit operation at high loads and high speeds
• Unsealed design provides advantages of very low friction to prevent skidding in lightly loaded applications and provides for flow through lubrication
• 8300 lb dynamic/15700 lb static
• Flat outside ring
• Without stud
• Dynamic Load Bearing is 8300 lb
• Enclosure Type Unsealed
• Outer Diameter is 2-1/2 in
• Product Weight is 0.86 lbs
• Style Caged

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RBC_CH104L_Catalog.pdf
