Browning®
767700

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

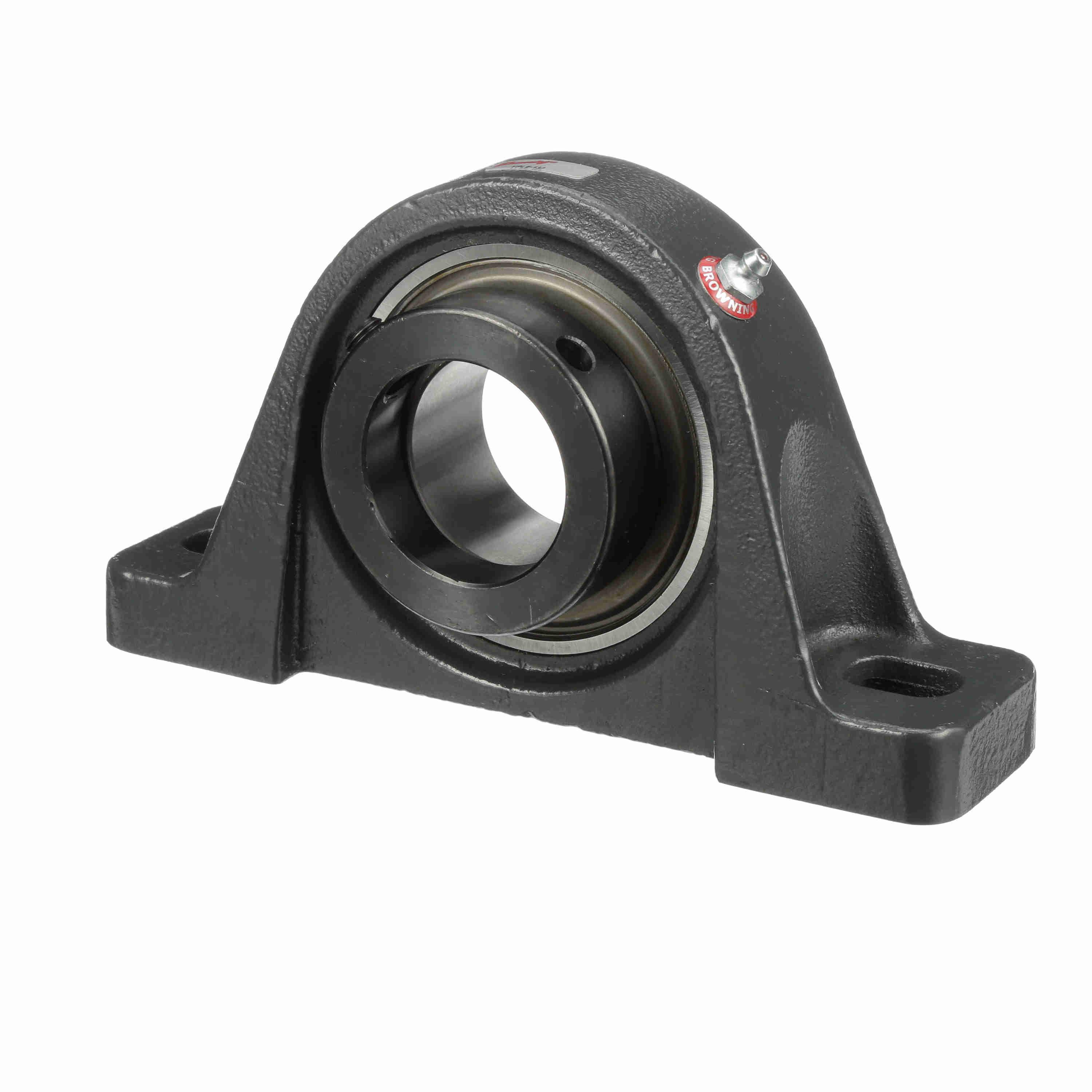

Browning® Pillow Block Ball Bearing Unit, Intermediate Duty Low Base, Series: VPLE 100, 2 in Bore, 6-7/16 to 7-7/16 in Bolt Center-to-Center Length, 2-7/16 in Base to Bore Centerline, 8-13/16 in Overall Length, 4-29/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-5/16 in Base Width, Eccentric Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 7889 lb Dynamic/5216 lb Static Load, 200 to 250 deg F, 1750 rpm Maximum, Cast Iron, Gray Painted

• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Semi solid cast iron rugged base design provides an excellent mounting foundation
• Zone hardened inner race
• Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
• Nylon retainer
• 52100 steel insert
• Alemite fitting lubrication
• Eccentric locking designed for locking in direction of rotation

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VPLE118_Specification_Sheet.pdf
