Gates® Power Transmission
174-3M-15

The PowerGrip® HTD® synchronous belt curvilinear tooth form ensures an optimized load distribution leading to high power transmission in low speed and high torque applications. PowerGrip® HTD® 3M and 5M belts are suitable for domestic appliances, office machines, electric hand tools and for applications in the processing and chemical industry. PowerGrip® HTD® 8M, 14M and 20M belts are used in high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required. These synchronous belts have a larger, more robust curvilinear tooth profile for increased capacity, as compared to other timing belts.

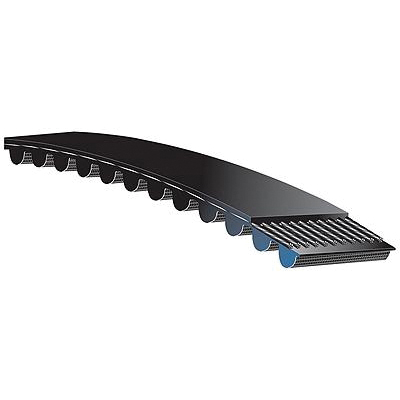

Gates® Power Transmission PowerGrip® HTD® Synchronous Belt, Series: 9293, 58 Teeth, 3 mm Pitch, 174 mm Overall Length, 15 mm Width, 1000 kW, -22 to 212 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced

• Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt
• Fiberglass tensile cord provides the required strength combined with excellent flex life and high resistance to elongation
• Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
• Nylon tooth facing provides a durable wear surface for long service life
• 30% increase in horsepower ratings, as compared to traditional timing belts
• No slippage
• High mechanical efficiency
• Constant driven speeds
• Long trouble-free service life
• Perfect fit on HTD® profile pulleys

• Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92320015_Service_Manual.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
