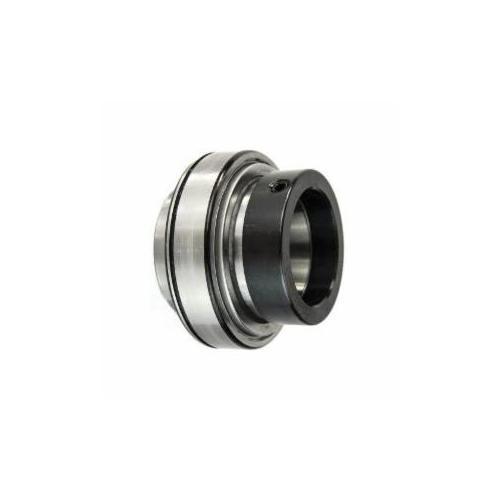

Fafnir®
G1015KRR

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. When set screws are used, Timken® suggests using shaftguarding Technology™, a stainless-steel, hardened band that is inserted in a groove on the inner ring. When the set screws are tightened, they press against the band, tightening the grip on the shaft. Unlike traditional set screws, which can dig into the shaft, there are no nicks, raised metal or permanent shaft damage. The stainless band resists the formation of corrosion on the shaft.

Timken® Fafnir®, G1015KRR, Ball Insert Bearing Housed Unit, Relubricatable Standard Duty, Series: G-KRR, 15/16 in Bore, 2.0472 in OD, 1 Rows, 1-3/8 in Width, Double Seal Closure, 3490 lb Dynamic/1760 lb Static Load, Steel Bearing, Rubber Seal, 4540 rpm Maximum, -50 to 120 deg C, Uncoated

• The G-KRR series eccentric wide-inner-ring ball bearings are the same as the RR series and have a provision for relubrication
• These bearings are designed for extremely dirty or wet conditions
• The bearing includes R-seals with flared lips that firmly contact the ground outer diameter of the inner-ring
• The inner-ring provides a positive seal against dust, dirt and other contaminants, and effectively retains the lubricant
• G-KRR series bearings are equipped with shroud-seals, providing extra effectiveness and protection
• The extra-wide design provides additional shaft support and extra-large grease capacity
• G-KRR series bearings have cylindrical outside diameters

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_1012KRRB_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_G1015KRR_Specification_Sheet.pdf
