Martin
815BS25 1 1/4

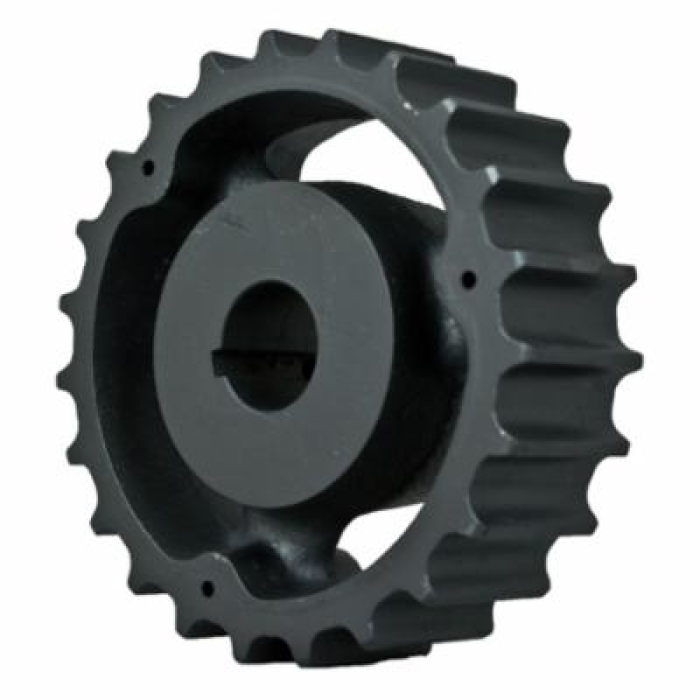

Martin 815BS25 1 1/4 800 Arm Body Bored-to-Size Conveyor Chain Sprocket, 1-1/4 in Dia Bore, 6.07 in OD, 815 Chain, 25 Teeth, Cast Iron

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 815B25-1-1/4
  • MPN: 815BS25 1 1/4
  • UPC: 697950175072
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

800 series sprockets are also known as conveyor sprockets or tabletop sprockets. These specialty sprockets are used to move conveyors. The unique tooth profile allows the conveyors to move without protruding through them.

Martin Conveyor Chain Sprocket, Arm Body Bored-to-Size, Series: 800, 1-1/4 in Bore Dia, 6.07 in Outside Dia, 815 Chain, 25 Teeth, 6.032 in, 5/16-18 x 5/16 in Screw, 1/4 x 1/8 in Keyway, 1.688 in Length Through Bore, Cast Iron

Type      :      Arm Body Bored-to-Size
Series      :      800
Bore Diameter      :      1-1/4 in
Outside Diameter      :      6.07 in
Chain Size      :      815
Number of Teeth      :      25
Pitch Diameter      :      6.032 in
Screw Size      :      5/16-18 x 5/16 in
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      1.688 in
Material      :      Cast Iron
  • pdf Catalog https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_GR19-20_Catalog.pdf
Application      :      For used with table top chains
