Martin
HM824

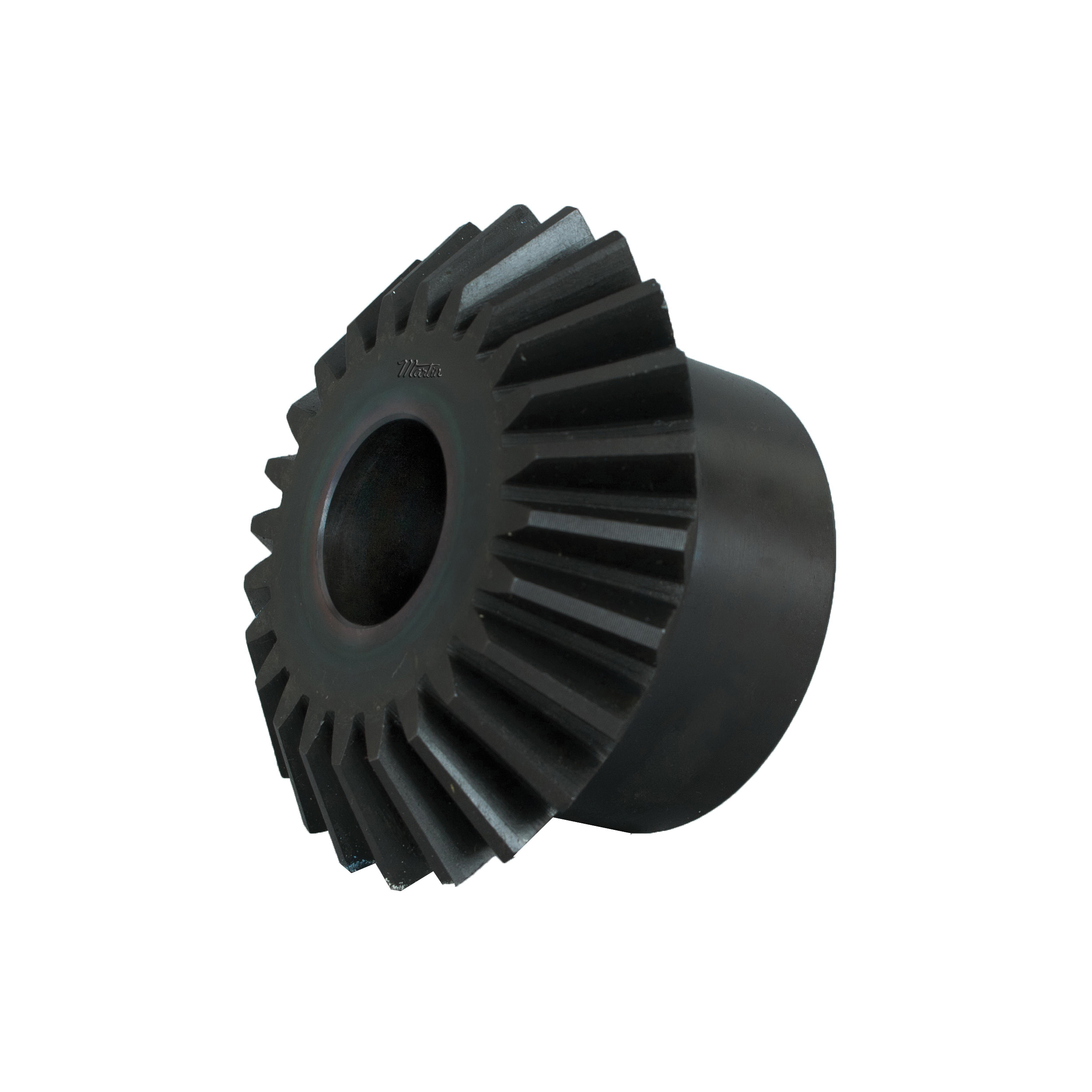

Martin HM824 Plain Reborable Straight Miter Gear, 8 Diametral Pitch, Right Angle Rotation, 20 deg Pressure Angle, 24 Teeth, 3 in Dia Pitch, 0.64 in W Face, 0.75 to 0.9385 in Dia Bore, Carbon Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: HM824 MART
  • MPN: HM824
  • UPC: 697950051635
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Martin stock miter gears are manufactured from 0.4 carbon steel. The "M" series is furnished unhardened with plain bore. The "HM" series is furnished hardened teeth with plain bore. The "HMK" series is furnished hardened teeth with keyway and setscrew for installation on the shaft. Hardened miter gears have approximately 50% more horsepower capacity and provide greater gear wear than untreated gears. All Martin miter gears are cut with the 20 deg pressure angle system.

Martin Straight Miter Gear, Plain Reborable, 0.75 to 0.9385 in Bore Dia, 3.177 in Outside Dia, 1:1 Gear Ratio, 24 Teeth, 8 Diametral Pitch, 3 in, 0.64 in Face Width, Right Angle Direction of Rotation, No Screws, 1-3/4 in Hub Dia, 0.813 in Hub Projection, 1-37/64 in Overall Length, 20 deg Pressure Angle, Carbon Steel

  • Precise machining and processes ensure consistent finish and high quality
  • AGMA 6 to 8 commercial class gear
  • Hardened teeth
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_M424_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_M424_Specification_Sheet.pdf
