Sealmaster®
701137

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

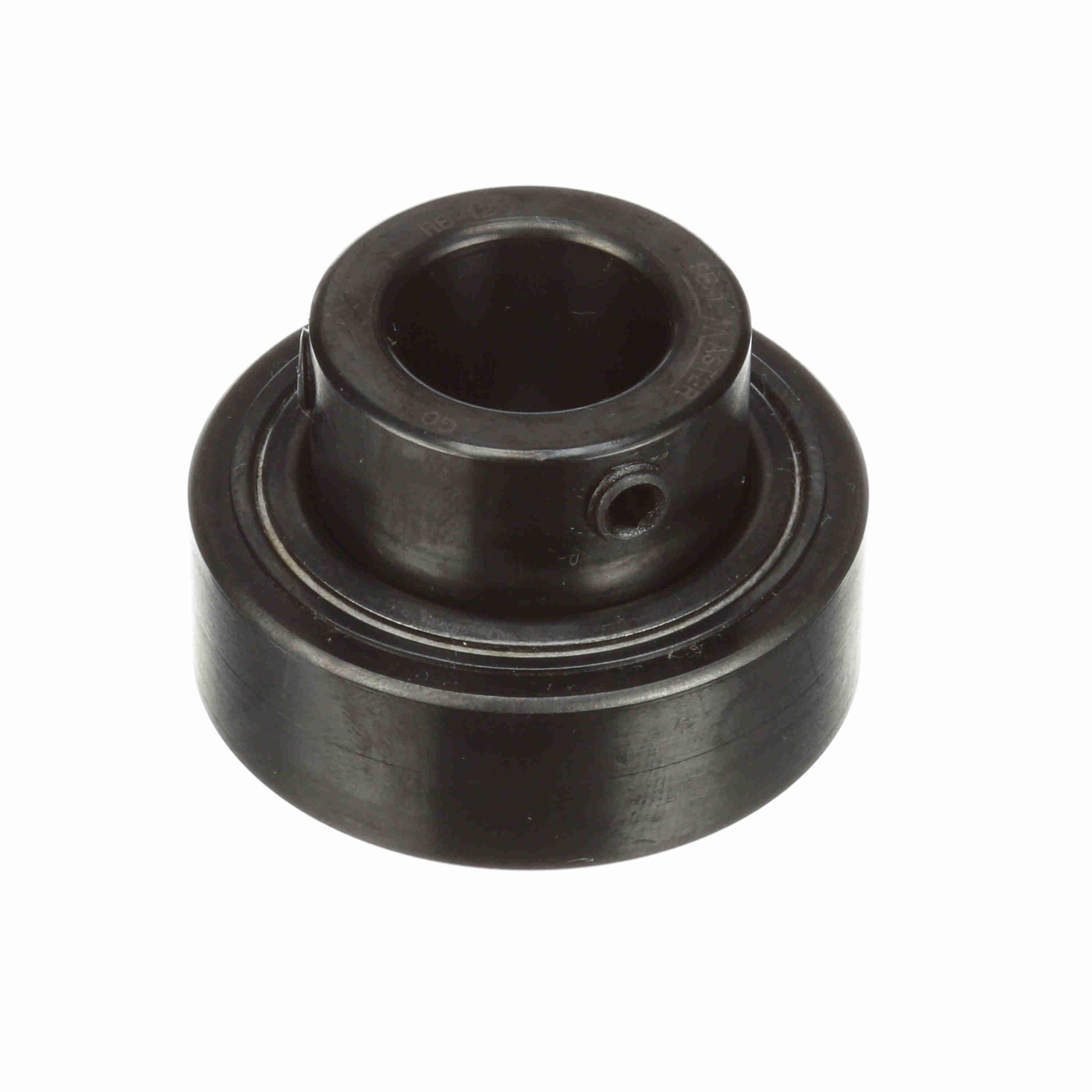

Sealmaster® Ball Bearing Insert, Standard Duty Straight Bore, Series: RB Series, 1/2 in Bore, 1.85 in OD, 1.281 in Width, Double Seal Closure, 2611 lb Dynamic/1444 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 7300 rpm Maximum, 250 deg F, Black Oxide Coated

• Single setscrew locking
• Lithium complex NLGI #2 grease with an EP additive
• Rubber mount insert only
• Wide outer race
• Lock pin and dimple system
• Land riding retainer
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Cylindrical O.D. wide inner ring bearing insert with no lubrication holes_x005f Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
