Sealmaster®
700396

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.

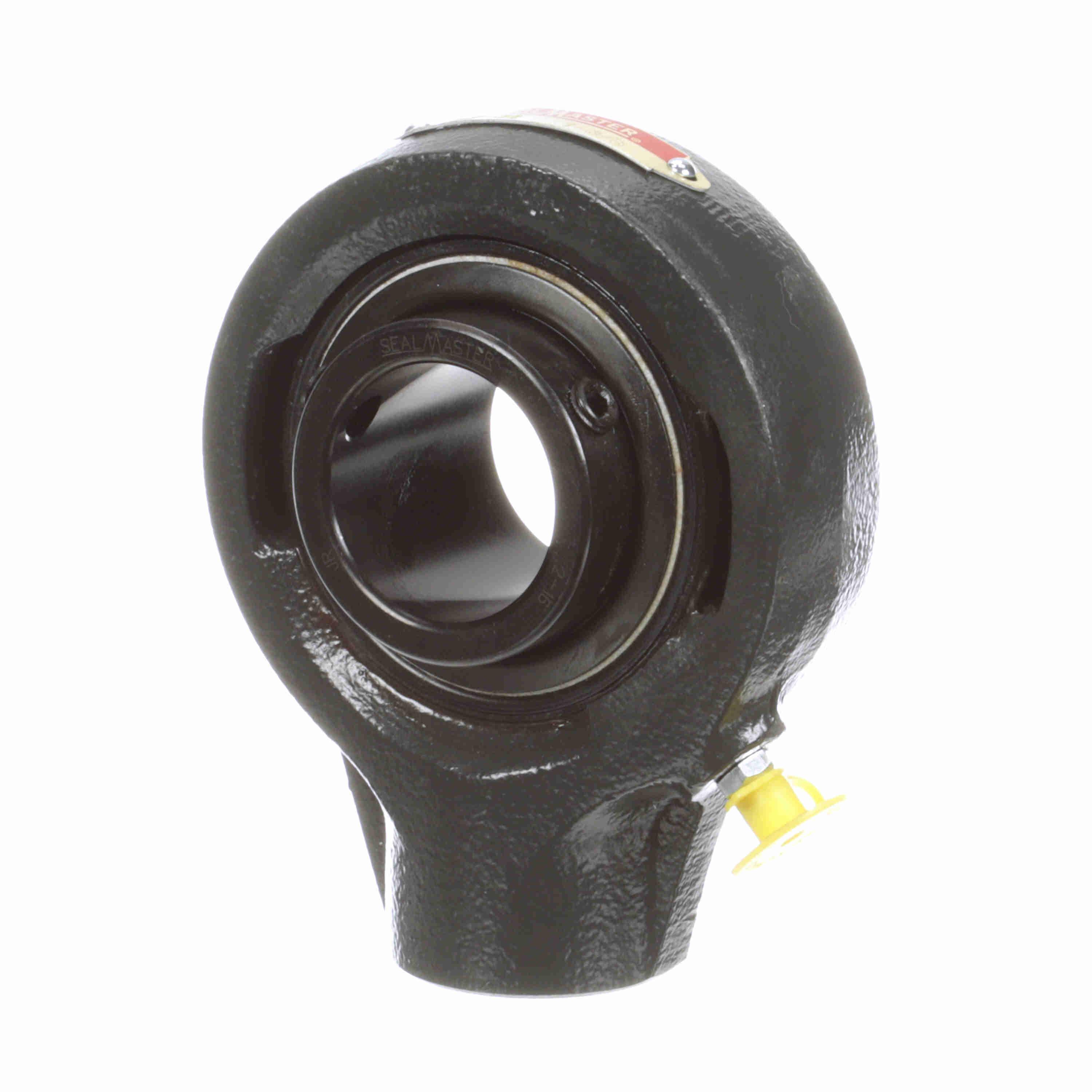

Sealmaster® Hanger Ball Bearing Unit, Standard-Duty, Series: SEHB, 1.38 in Bore, 3.63 in OD, 1.69 in Width, 5782 lb Dynamic/3493 lb Static Load, Set Screw Collar Locking, Cast Iron Bearing, Felt Seal, Metal Cage, 4650 rpm Maximum, 250 deg F, Uncoated

• Wide outer race
• Zone hardened inner race
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_703383_Catalog.pdf
