Sealmaster®
711149

Sealmaster® PN gold mounted bearings come within a variety of 316 stainless casting or high strength composite housing configurations. They feature high phosphorus, electroless nickel coated steel inserts with patented seal technology. They are available with either setscrew or Skwezloc®concentric locking collars. The high performance triple-lip seal is the latest innovation on sealing technology. The combination of stainless flingers and FKM lip materials provides strong defense against contaminant entry, GoldPlex® FG H1 food grade grease loss and wear.

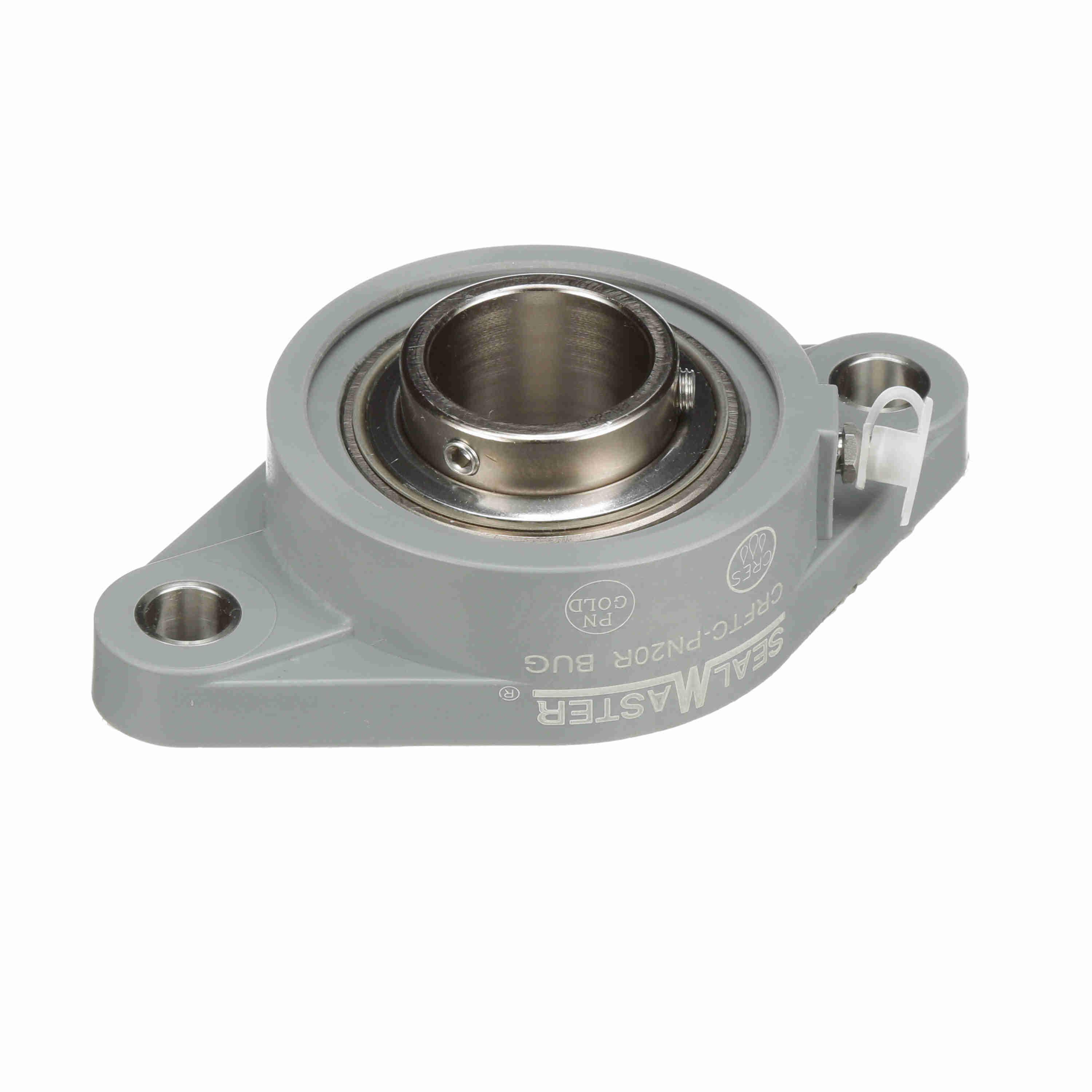

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Standard-Duty, Series: CRFTC-PN, 1-1/4 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 5-11/16 in Overall Length/Diameter, 1-7/32 in Overall Depth, 5-11/16 in Overall Height, Set Screw Locking Device, Steel Bearing, FKM Seal, 4381 lb Dynamic Load, 2300 rpm Maximum, 0 to 150 deg F, Uncoated

• The inner and outer ring of the Sealmaster® PN gold bearing are a high phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• Single setscrew locking is 300 series stainless steel 120 deg spaced
• Balance three point contact and minimizes inner ring distortion vibration
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes
• Solid construction with machined base was designed for minimal gaps and no fillers
• Zone hardened inner ring with 120 deg spacing setscrew lock with corrosion resistant setscrews
• Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease
