Climax H2C-062-S H2C062S CLIMAX
Send NoImagePrint
  1. pin-int

Climax
H2C-062-S

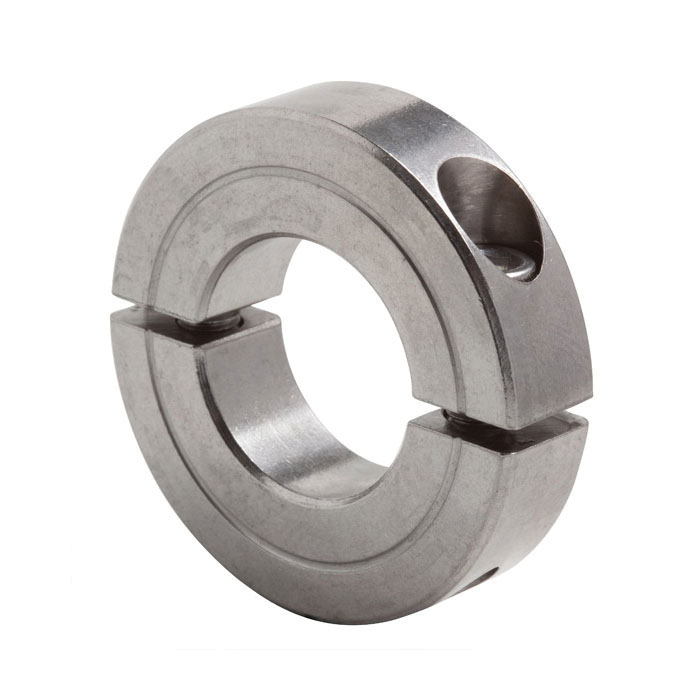

Climax H2C-062-S Clamping Collar With Recessed Screw, 2-Piece Split Construction, 5/8 in ID x 1-1/2 in OD x 13/32 in W, Stainless Steel

  • Manufacturer: Climax Metal Products
  • Brand: Climax
  • BSC Item#: H2C062S CLIMAX
  • MPN: H2C-062-S
  • UPC: 044861272879
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Stainless Steel Two-Piece Clamping Collar - Recessed Screw Head. Recessed Screw Head provides an outside surface free of major projections for safety. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw collars. Effective on hard & soft shafts.

Climax Clamping Collar, Series: H2C, 2-Piece Split Construction, 5/8 in ID, 1-1/2 in OD, 13/32 in Width, Hex Socket Cap Screw Style, 10-32 UN-3A x 1/2 in Screw, Stainless Steel, Plain

  • Recessed screw head provides an outside surface free of major projections for safety
  • Design fully engages the shaft without marring
  • Easily installed where major disassembly would otherwise be required
  • Greater axial holding power than setscrew or 1-piece clamping collars
  • Effective on hard and soft shafts
  • Stainless steel hex socket cap screw
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_H2C_062_S_Line_Drawing.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_H2C_062_S_Specification_Sheet.pdf
Standard/Approvals      :      ASTM A582|ASTM F837 Cap Screw
Application      :      Conveyors, Solar Panel Farms, X-Ray Machines-Medical Indexing, Food Processing, Pressure Sprayers, Lawn Mowers, Truck Hoods, Washing Machines, Exercise Equipment, Hospital Beds, Wheelchairs and Other High Volume Applications
