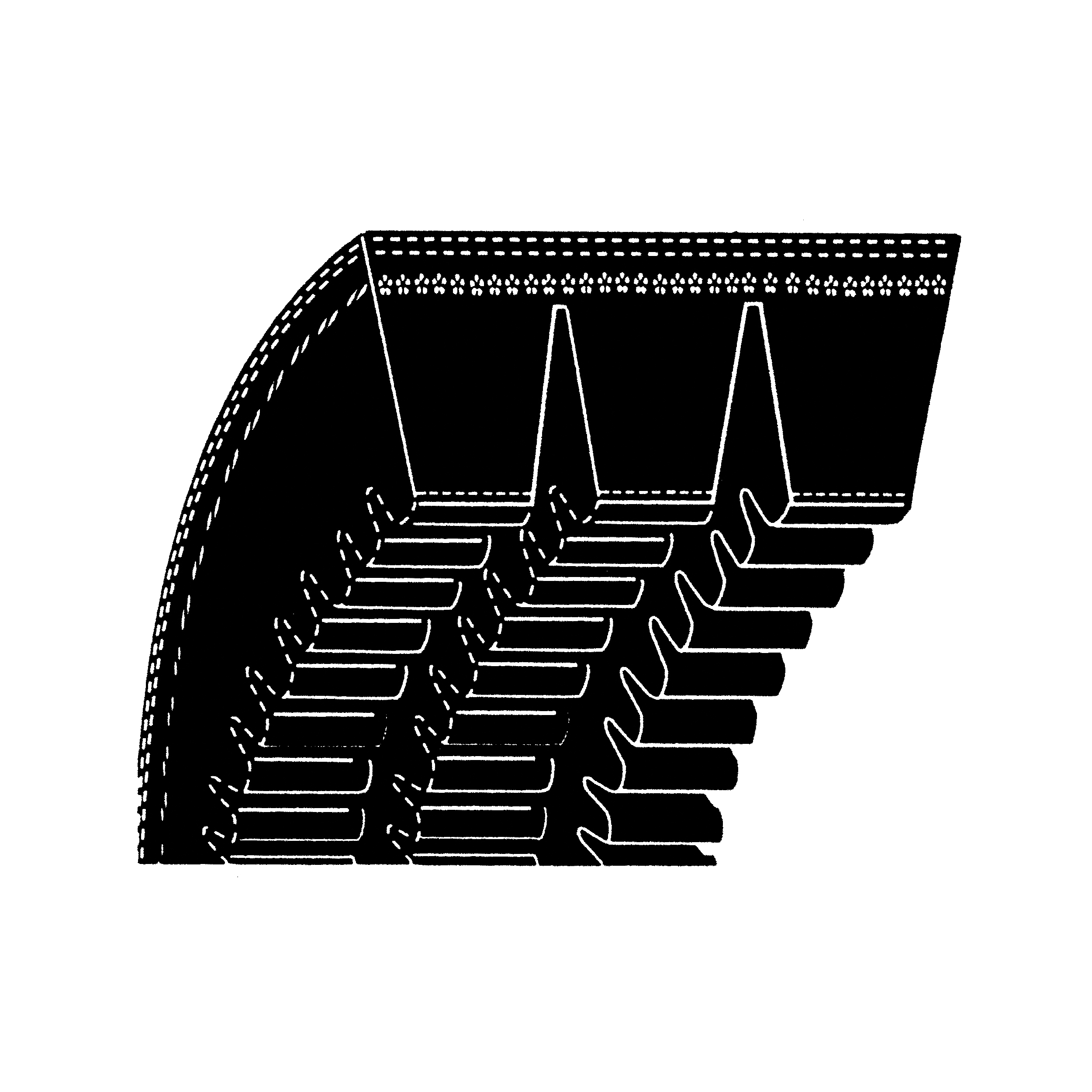

TB Wood's®
3R3VX950

All the same features of the individual Narrow (Ultra-V) Cog belt, but with the added benefit of multiple belts in a single belt. Should be considered for those problem drives where long center distance, vibration, pulsating or shock loads cause individual belts to whip, turn over or jump out of sheave grooves. Stock in all 3V and 5V, 2 thru 5 ribs in lengths up to 200 in.

TB Wood's® Narrow Banded Ultra V-Belt, Cogged, 3VX Section, 3/8 in Top Width, 95 in Outside Length, 5/16 in Thickness, 3 Ribs, 2.2 in Diameter Minimum Pulley, -60 to 250 deg F, Ethylene, Polyester Reinforced, Black

• TB Wood's® Narrow Ultra-V belts transmit more horsepower than the five sizes of the classical V-belt
• The narrower geometry of the belt results in cross sections that are up to 50% smaller than the classical (conventional) cross sections
• Allows the use of smaller dia sheaves resulting in more compact, lighter weight drives that can operate at higher speeds, reduce bearing loads and shaft stresses
• TB Wood's® Narrow Ultra-V belts are static conducting, oil and heat resistant
