Sealmaster®
712482

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

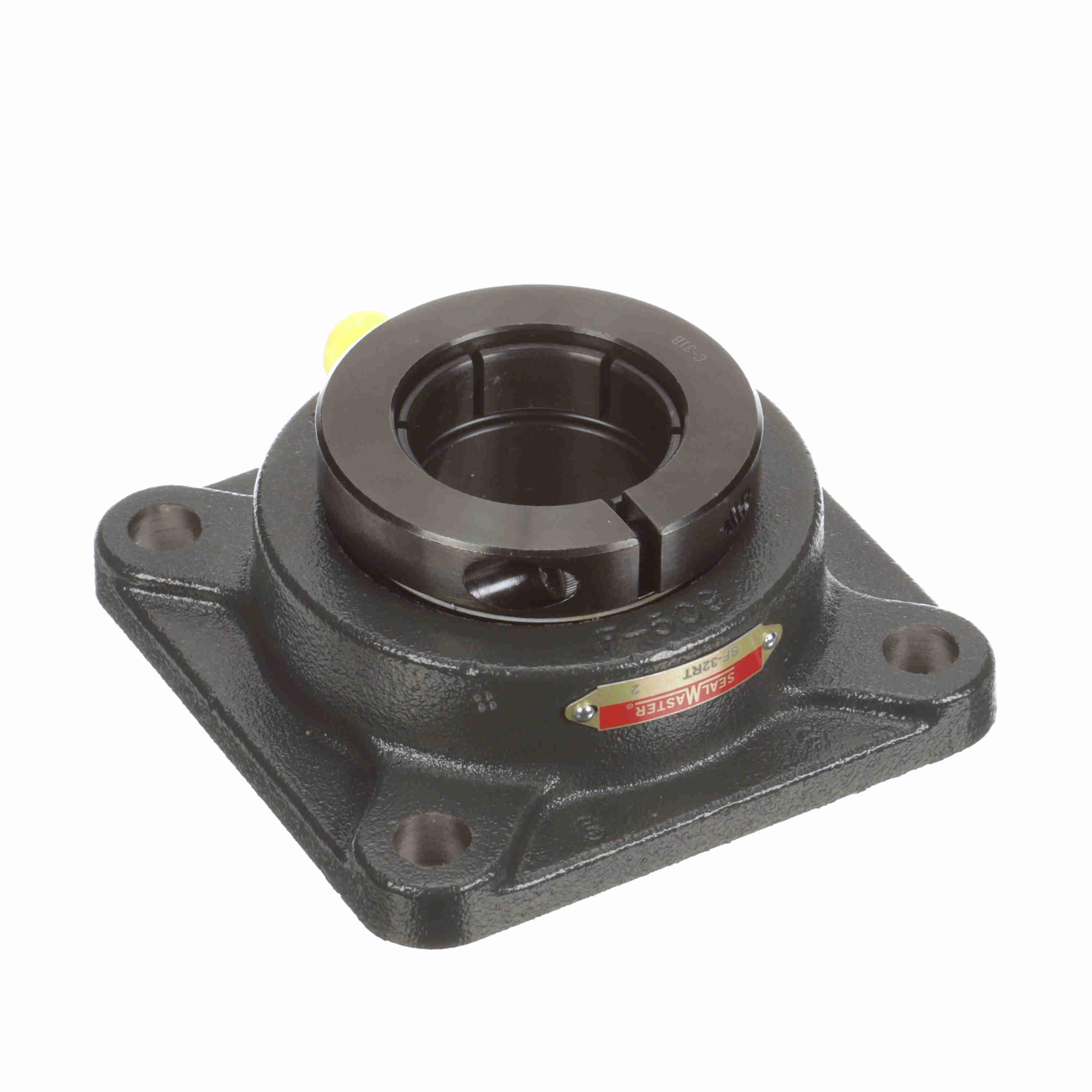

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Straight Standard Duty, Series: SF-T, 2 in Bore, 4-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 2-7/32 in Overall Depth, 5-5/8 in Overall Height, Skwezloc® Locking Device, Steel Bearing, Felt Seal, 7889 lb Dynamic/5216 lb Static Load, 5000 rpm Maximum, -20 to 250 deg F, Uncoated

• Wide outer ring
• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Zone hardened inner race
• GoldPlex-HP grease
• 52100 black oxide coated steel bearing
• Stamped steel rubber mounted flange
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc concentric locking for near perfect concentricity
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
