Boston Gear® F872B-63K-B5-M1 F872B-63K-B5 BGW
Send NoImagePrint
  1. pin-int

Boston Gear®
F872B-63K-B5-M1

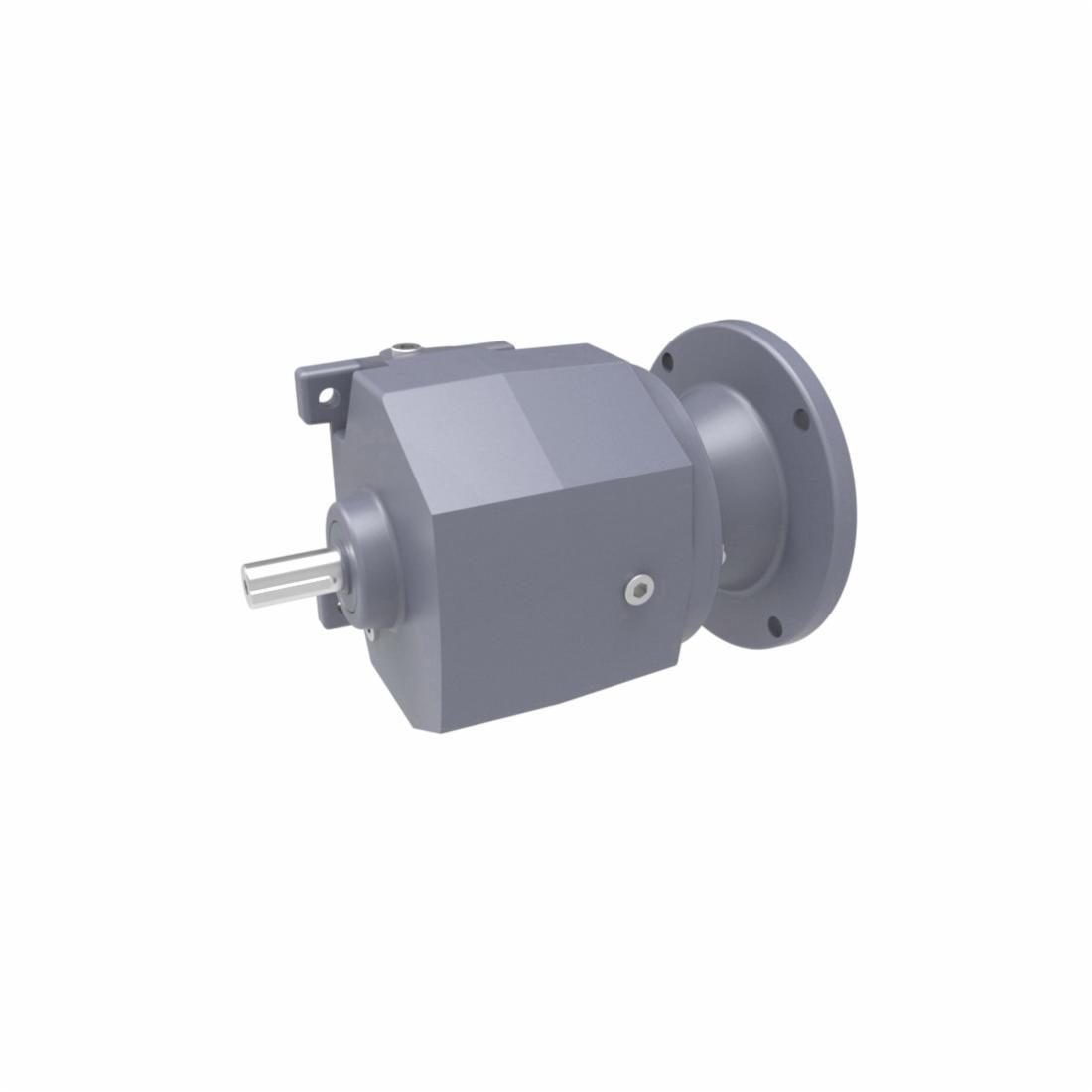

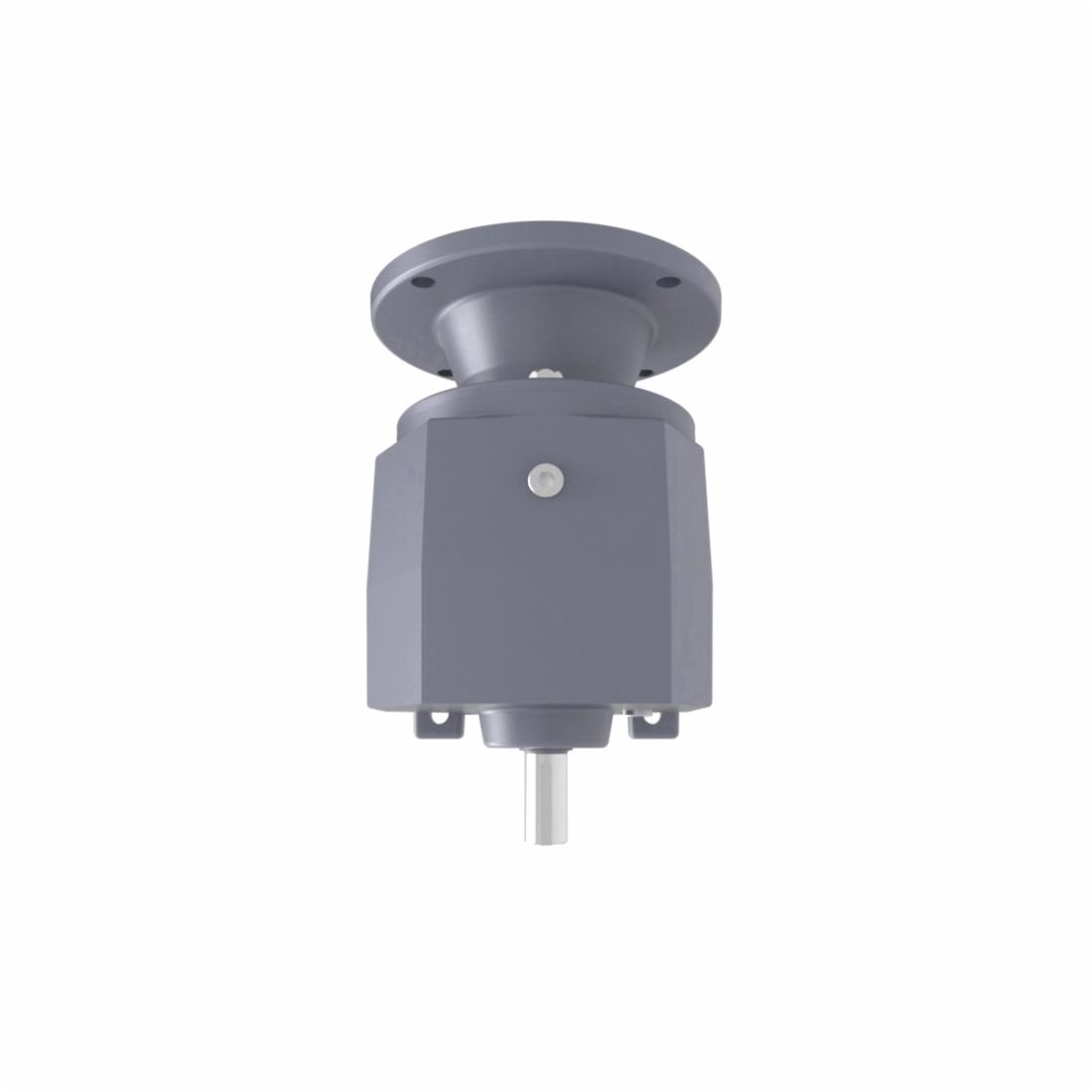

Boston Gear® F872B-63K-B5-M1 800B Heavy-Duty Double Reduction In-Line Helical Gear Drive, Quill Input, Solid Projecting Shaft Output, 2.64 hp Input/2 hp Motor, 63:1 Gear Ratio, 27 rpm Maximum Output, 5300 in-lb Torque Rating

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: F872B-63K-B5 BGW
  • MPN: F872B-63K-B5-M1
  • UPC: 884107030630
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Boston Gear® 800 series contains a focused selection of compact, heavy duty helical gear drives that offer long-life performance and simplified maintenance. A broad range of reduction ratios suit an even broader range of specifications, while a variety of input shaft configurations maximize flexibility. In addition, the number of products that complement this series of gear drives make it an ideal choice for today's industrial distributor. The 800 series provides a functional interchange for SEW Eurodrive and other European manufacturer's helical gear drives, making it uniquely practical for replacement applications.

Boston Gear® In-Line Helical Gear Drive, Heavy-Duty Double Reduction, Series: 800B, 63:1 Gear Ratio, 2.64 hp Input/2 hp Motor, Quill Input, Solid Projecting Shaft Output, 5/8 in Input, 1-5/8 in Output, 27 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5300 in-lb, 3/16 x 3/32 in Keyway, 96 % Efficiency, Klubersynth UH1 6-460 Lubrication, C-Face Foot/Base Mount, Cast Iron, Standard Gray Painted, 15.15 in L x 9.81 in W x 10.83 in H

  • Because the 800 series is dimensionally interchangeable with many US and European in-line helical gear drives, it offers maximum flexibility
  • The standard NEMA C-face design will accept any standard NEMA motor, making it exceptionally versatile
  • Ratios up to 70:1 in just two stages means increased efficiency and reduced case size
  • Accessible oil seals simplify routine product maintenance
  • 800 series drives come pre filled with synthetic lubrication for your specific mounting position
  • Lubricated for life which promotes trouble-free operation
  • Wash-down duty units in white or stainless steel epoxy coatings make these gear drives ideal for the most severe wash-down environments
  • 7-frame size
  • Standard input oil seal
  • Standard carbon steel output shaft
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_832B11KM1_Catalog.pdf
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_832B15KM1_Manual.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_S832BR100KM1_Specification_Sheet.pdf
Standard/Approvals      :      AGMA Class I|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
