Sealmaster®
703534

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

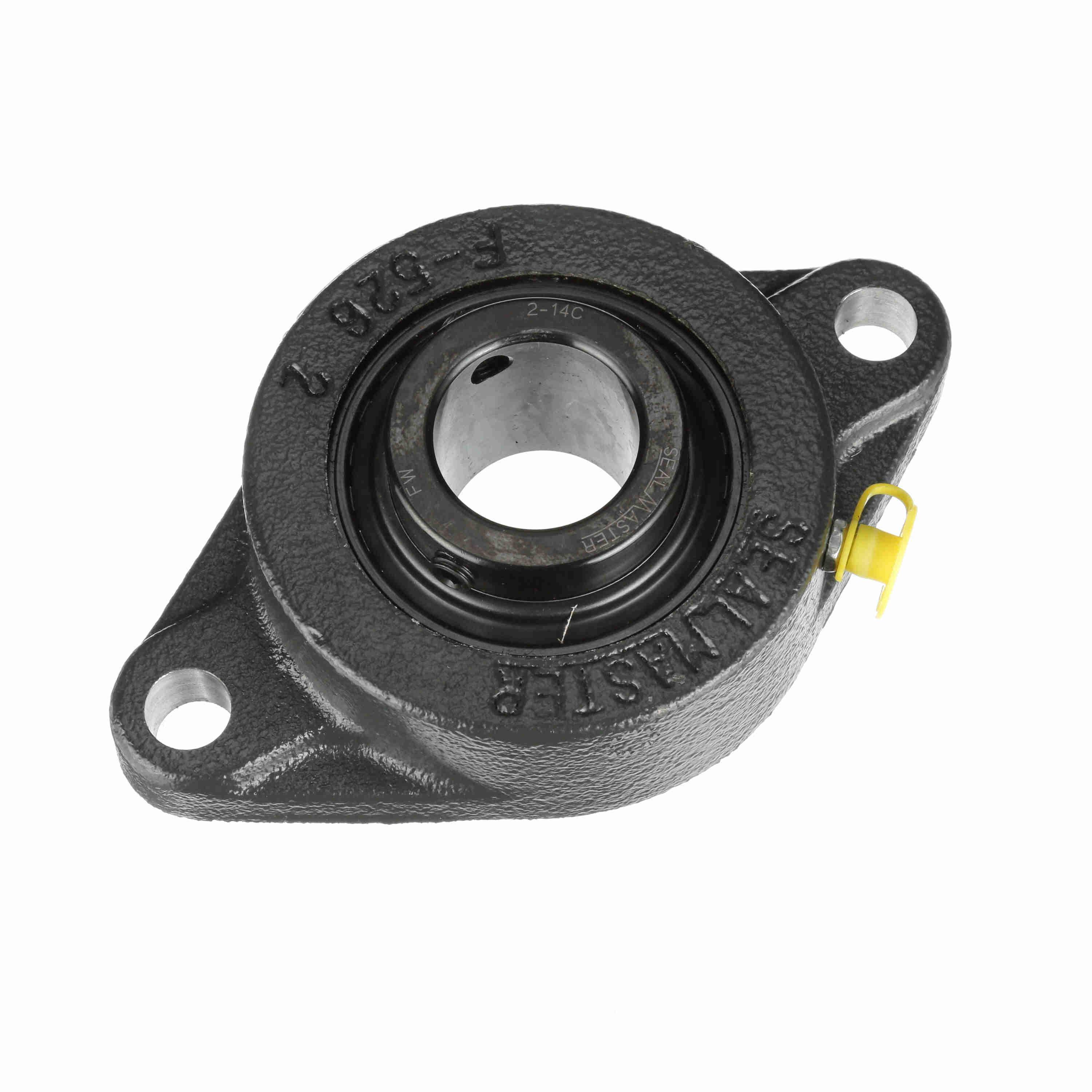

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Standard-Duty, Series: SFT, 1-3/8 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-3/4 in Overall Depth, 6-1/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 5782 lb Dynamic/3493 lb Static Load, 4650 rpm Maximum, -20 to 220 deg F, Uncoated

• Wide outer ring
• Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
• 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• 52100 black oxide coated steel bearing
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
