Browning®
767895

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

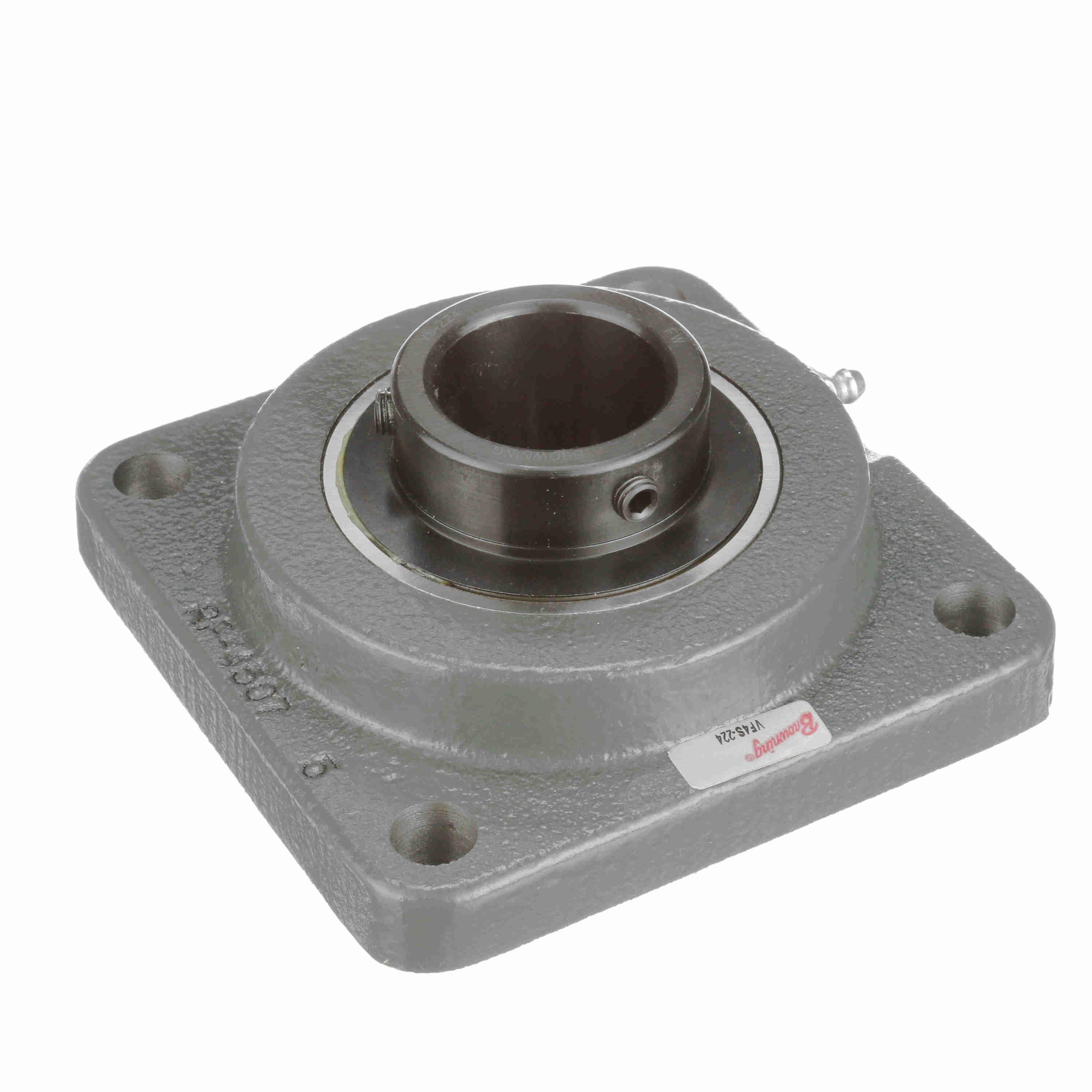

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion Round/Straight Bore, Series: VF4S 200, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 2-1/64 in Overall Depth, 5-1/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 7340 lb Dynamic/4467 lb Static Load, 3500 rpm Maximum, -20 to 200 deg F, Gray Painted

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• 52100 steel insert
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF4S232S_Specification_Sheet.pdf
