TB Wood's®
6C118

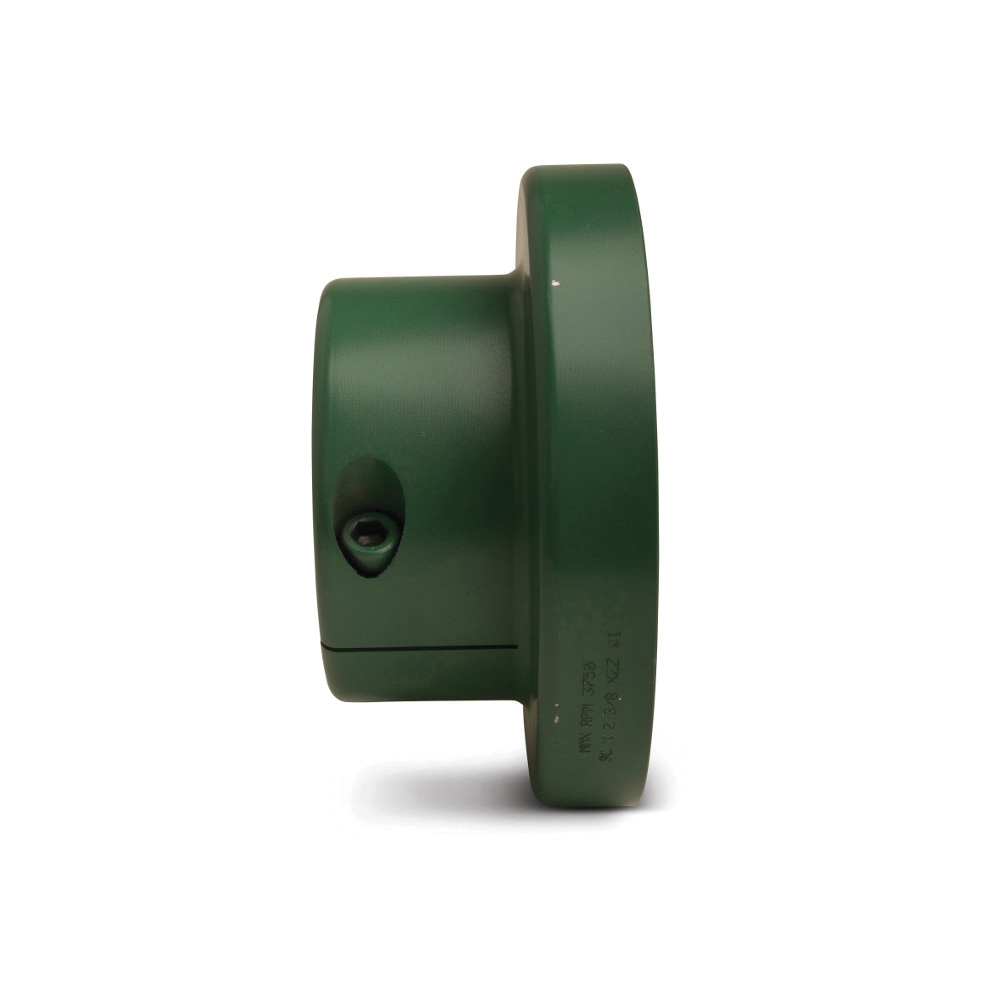

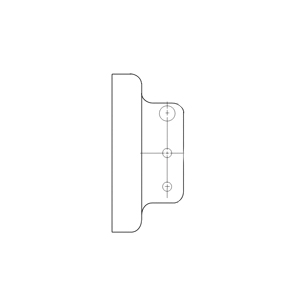

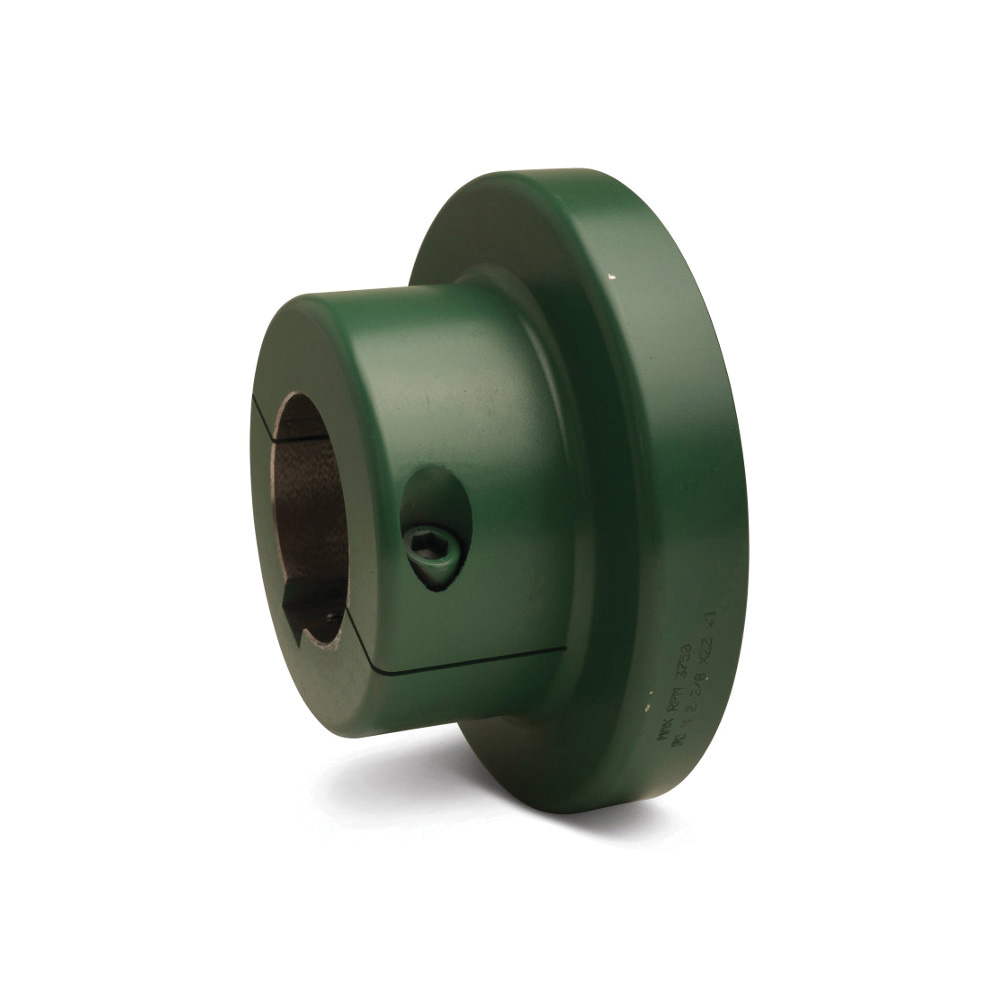

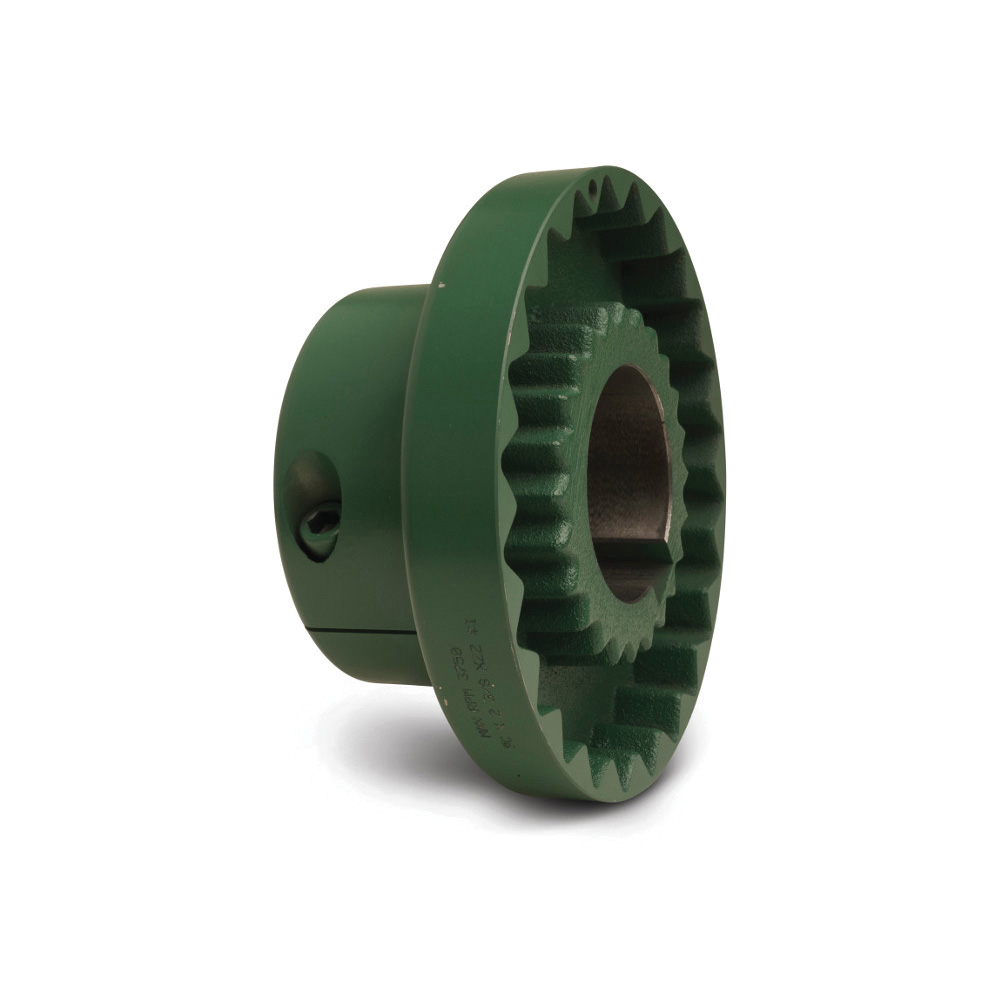

TB Wood's® Sure-Flex® Plus 6C118 Type-C Clamp Hub Flange, 06 Coupling, 1-1/8 in Bore Dia, 1-15/16 in Length Through Bore, 3 in Hub Dia, Cast Iron

  • Manufacturer: Regal Rexnord
  • Brand: TB Wood's®
  • BSC Item#: 6C1-1/8 WOOD
  • MPN: 6C118
  • UPC: 698672650250
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Sure-Flex Plus® Type C clamp hub flanges employ integral locking collars and screws to assure a secure shaft connection without marring the shaft surface. One setscrew is furnished over the key. The clamp hub flange is often used in applications that require easy seal replacement on equipment using face seals, as the clamp hub eliminates the need for a second set screw at 90 deg from the key.

TB Wood's® Sure-Flex® Plus Clamp Hub Flange, Type-C, 06 Coupling, 1-1/8 in Bore Dia, 3 in Hub Dia, 1.16 in Hub Length, 1/4 x 1/8 in Keyway, 6000 rpm Maximum, 1-15/16 in Length Through Bore, 5/16-18 UNC x 1/2 in L Setscrew/1/4-20 NC x 1-1/4 in Clamping Screw Screw, Cast Iron

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TB_Woods_1020T12_Catalog.pdf
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TB_Woods_10_Manual.pdf
Standard/Approvals      :      ATEX Compliant|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      For use with Sure-Flex Plus® elastomeric clamp hub coupling
