Rollway®

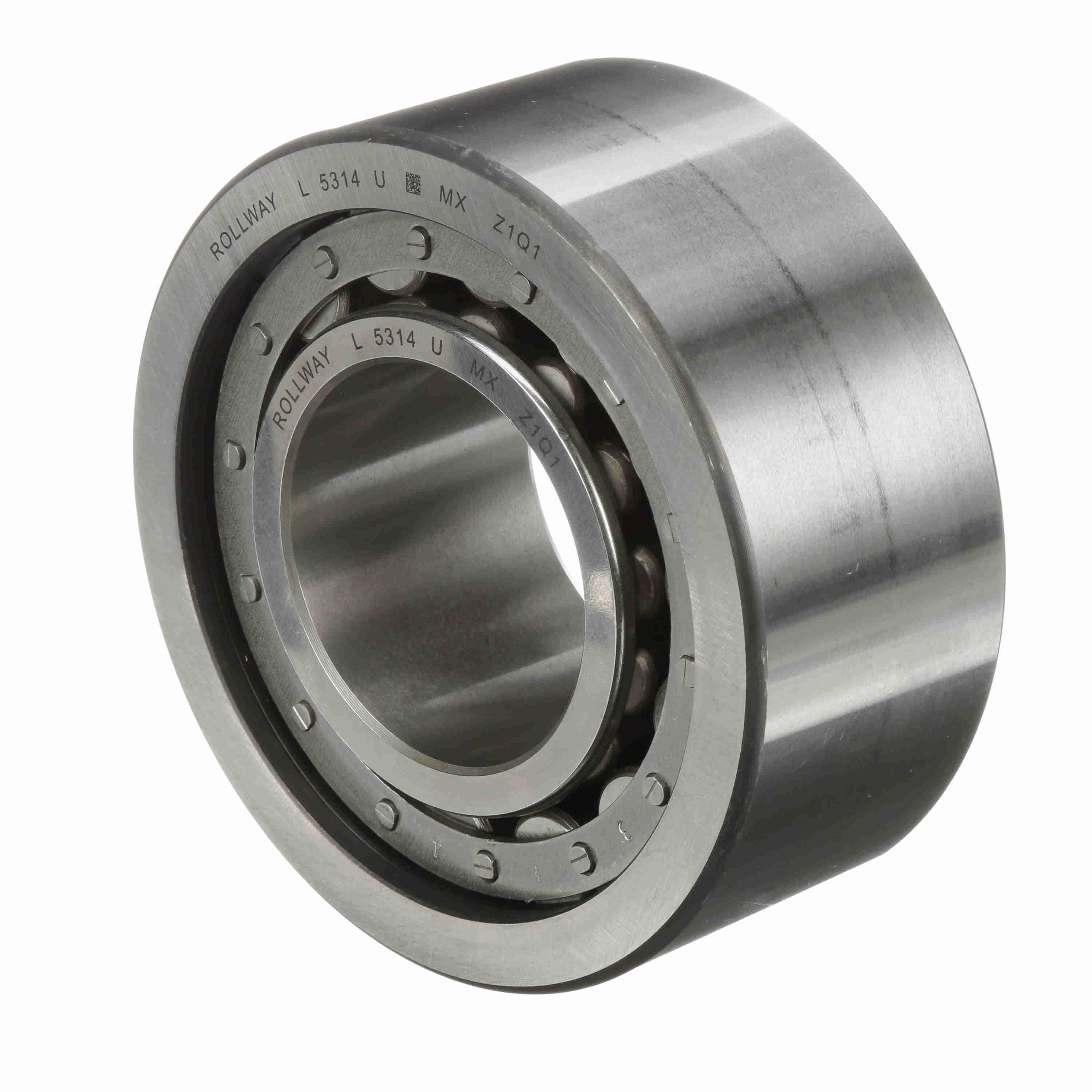

L5314U

Cylindrical roller bearings are manufactured in a number of designs, the predominant type being the single row roller. The roller and cage assembly are guided axially by the integral flanges (ribs) on one of the bearing rings. This design facilitates ease of mounting and dismounting, particularly where both races are an interference fit on their seating. Roller bearings with flanges (ribs) on one race only do not provide any end location.

Rollway® Radial Roller Bearing, Cylindrical Straight Bore Unmounted, Series: 5300, 70 mm Bore Dia, 150 mm Outside Dia, 1 Row, 63.5 mm W, Open Closure, 316064 N Dynamic/412160 N Static, Steel Bearing, Steel Cage, 6860 rpm Maximum

• Unmounted internal clearances
• Matched precision crowned rollers
• A built-up type of retainer utilizing steel segments rigidly held between stamped, steel end plates
• Precision machined outer race with two flanges, non-separable
• Through hardened bearing grade steel
• Surfaces precision ground to RBEC 1 tolerances

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_E5215B_Specification_Sheet.pdf
