Warner Linear®

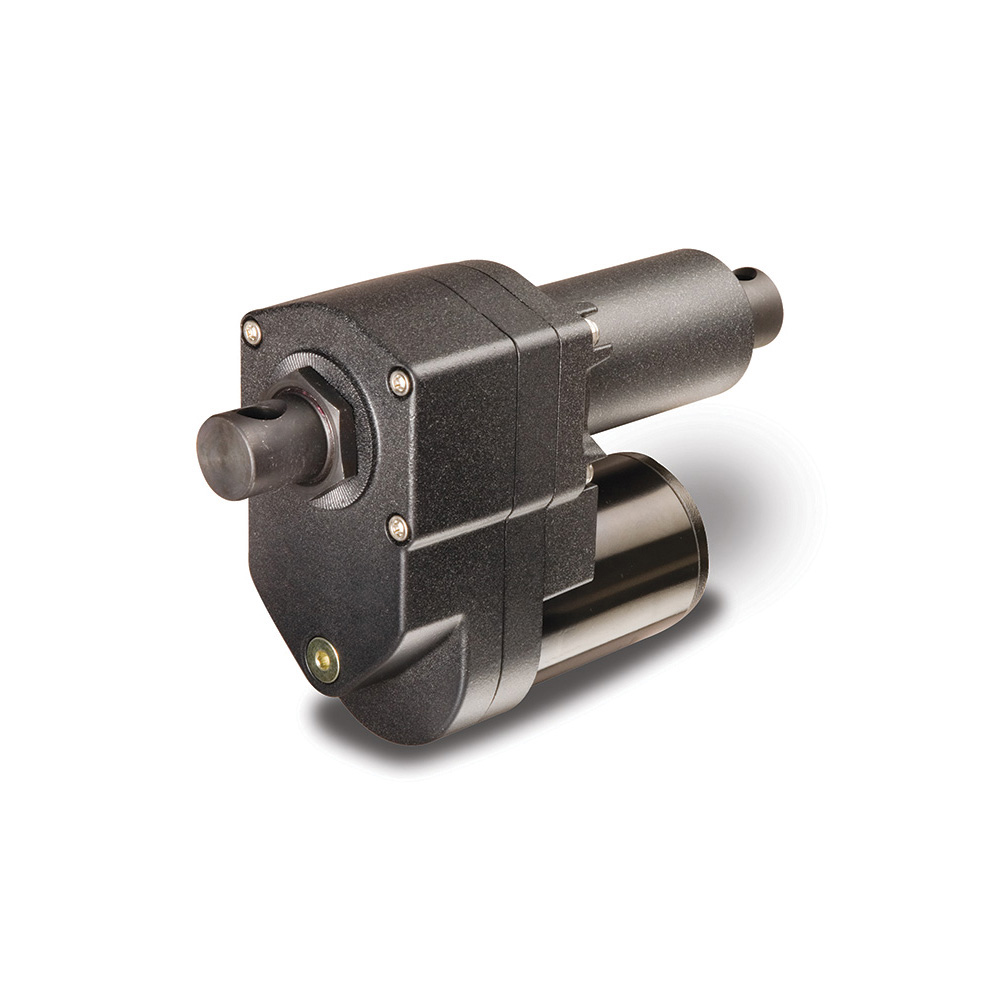

K2VLG10-12V-BR-04-R90

The K2vL uses a flange bronze bearing configuration for internal load transfer, offering the lowest cost while maintaining the rugged-duty performance capabilities of the B-track family. This unit has a gear ratio of 10:1, stroke length of 4 in (100 mm) and a 90 deg fitting base alignment. With a load capacity of 300 lb (1335 N), this unit is well suited for tough applications not needing the full load capacity of standard K2 model K2vL units are weatherproofed with Nitrotec® corrosion protection and high performance powder coat paint.

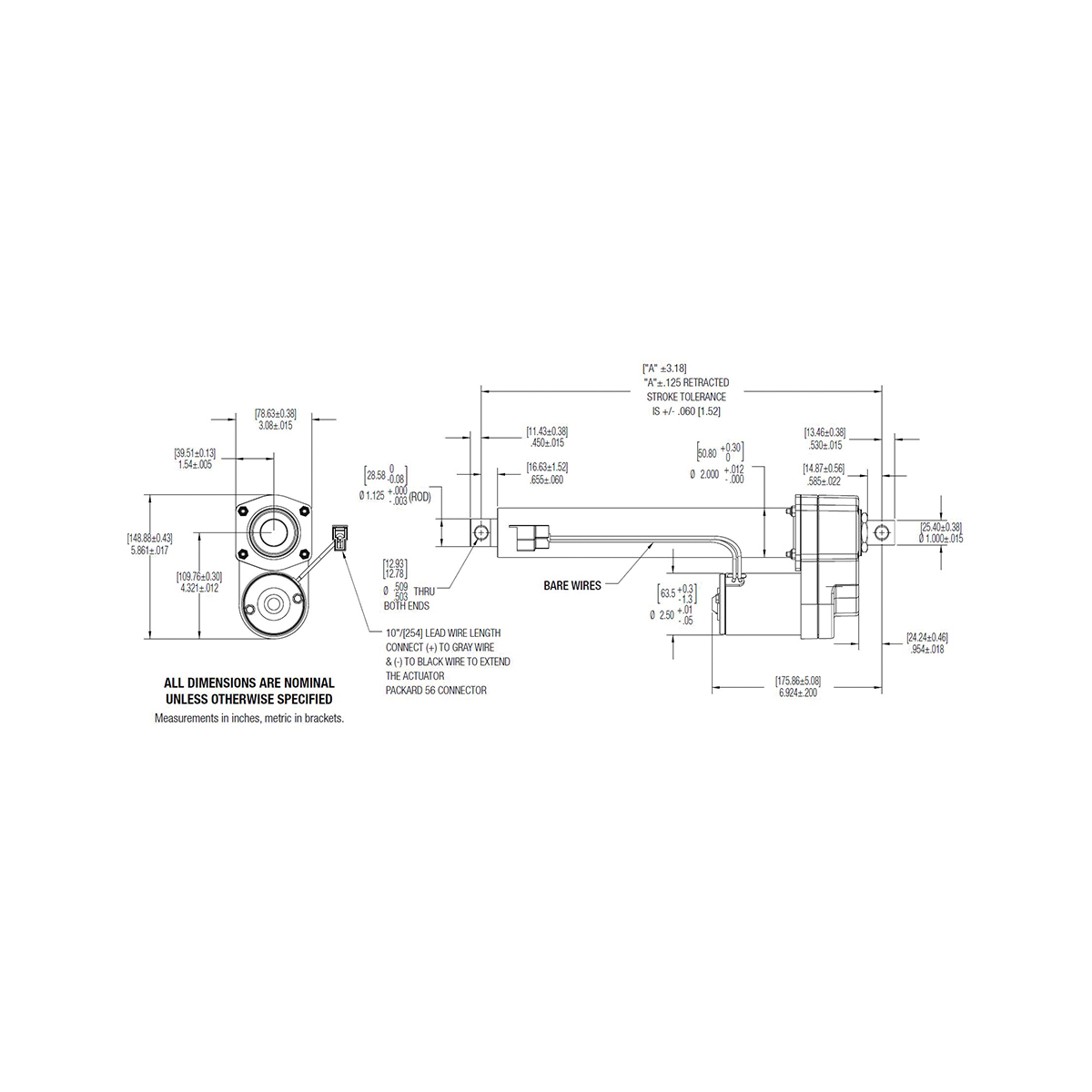

Warner Linear® Electric Linear Actuator, General Duty, Series: B-Track K2vL, 1335 N Dynamic/13345 N Static Load, 100 mm Maximum Stroke, 25 mm/s Maximum, 25% Maximum Duty Cycle, 12 VDC, 30 A, Hybrid ACME Drive, 10.32 in Retracted Length, 11.3 in L x 3.08 in W x 5.861 in H Dimensions

• Protective coatings and O-ring seals throughout
• Hybrid nut and screw design and no brake needed
• Ball detent overload clutch
• Thermal overload incorporated into the motor
• Heavy wall construction
• Double ball bearing motors
• Heat treated gears
• Rugged extension rod bearing support
• -29 to 65 deg C operating temperature
• IP69K static, IP65 dynamic load
• Without potentiometer and limit switch
