Martin 8MX45S36-2012

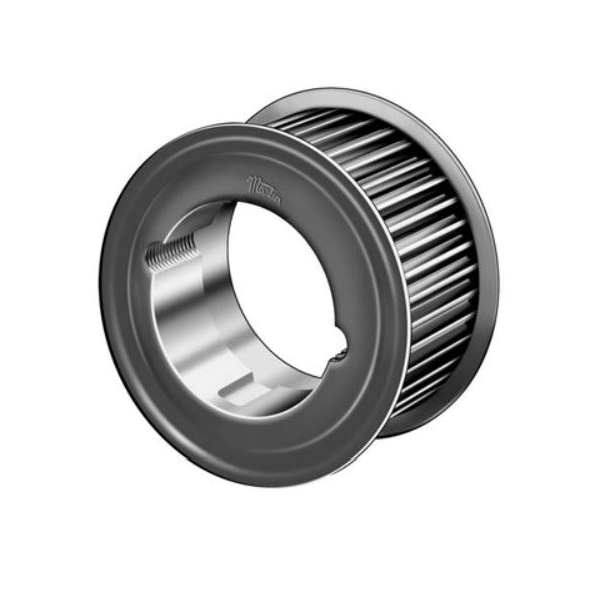

Martin MPC® 8MX45S36-2012 Solid Type AF-1 High Torque Belt Drive Sprocket, 1/2 to 2 in TB Bushed Bore, 4.448 in OD, 45 Grooves, 4.511 in Dia Pitch, 1.86 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 8MX45S36-2012 MART
- MPN: 8MX45S36-2012
- UPC: 697950720463
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Martin MPC® sprockets are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin MPC® High Torque Belt Drive Sprocket, Solid Type AF-1, TB Bushed Bore, 1/2 to 2 in Bore Dia, 4.448 in Outside Dia, 4.511 in, 45 Grooves, 8 mm Pitch, 1.86 in Face Width, 4.91 in Flange Dia, 2012 Bushing, 1.83 in Overall Length, For Use With: Polychain GT2® Belts and Falcon Pd® Belts, Steel, Protective Coating
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
