Sealmaster®
701842

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.

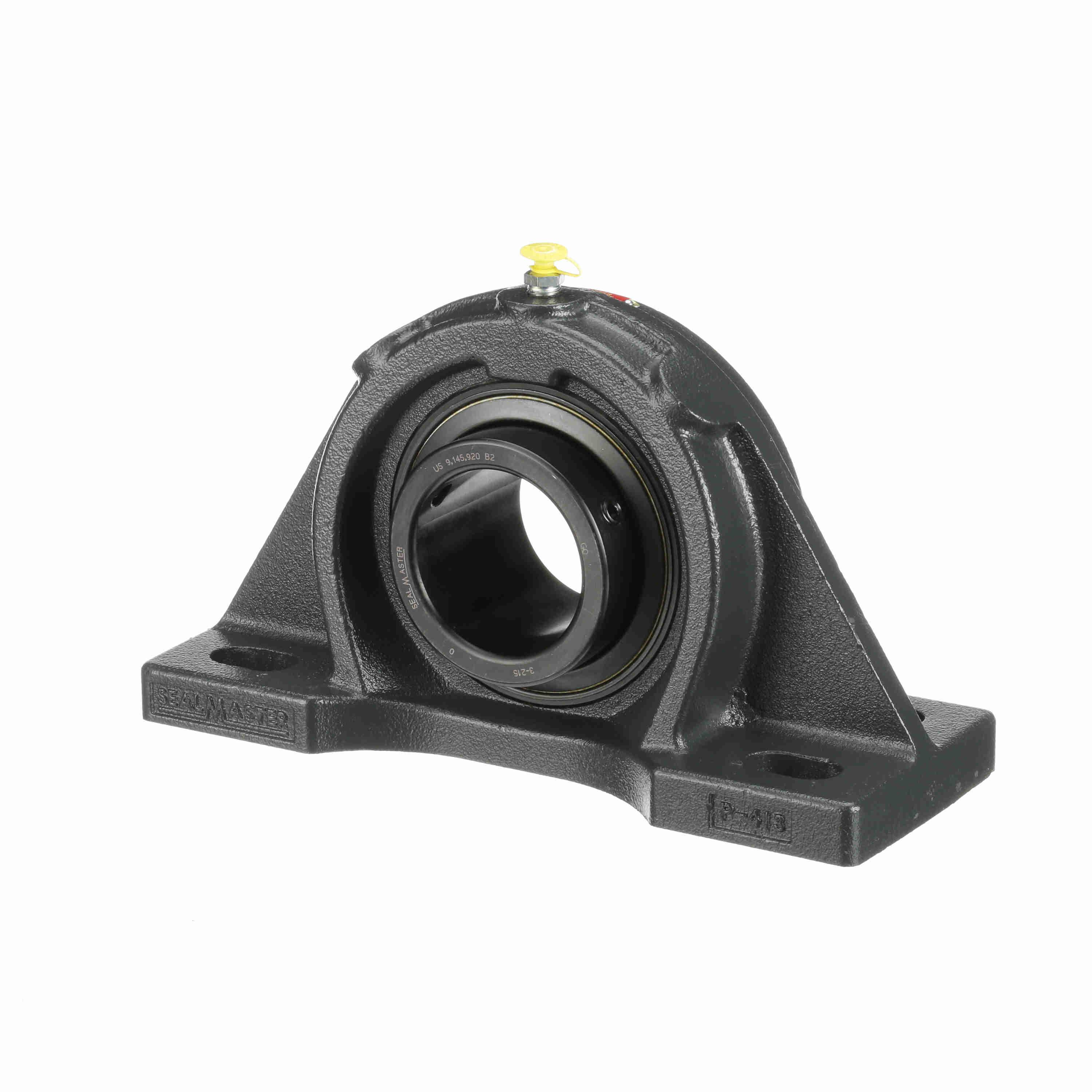

Sealmaster® Pillow Block Ball Bearing Unit, Medium Duty, Series: MFP, 2-3/16 in Bore, 6-7/8 to 8-1/8 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 10-1/4 in Overall Length, 2-9/16 in Overall Width, 5-13/16 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4-1/8 in Base Width, Set Screw Locking Device, Felt Seal, Non-Expansion (Fixed) Expansion, 11789 lb Dynamic Load, 250 deg F, 3000 rpm Maximum, Cast Iron, Uncoated

• Wide outer ring
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Alemite fitting lubrication
• 52100 black oxide coated steel bearing
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_701840_Specification_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Manual.pdf
