LEESON®
107033.00

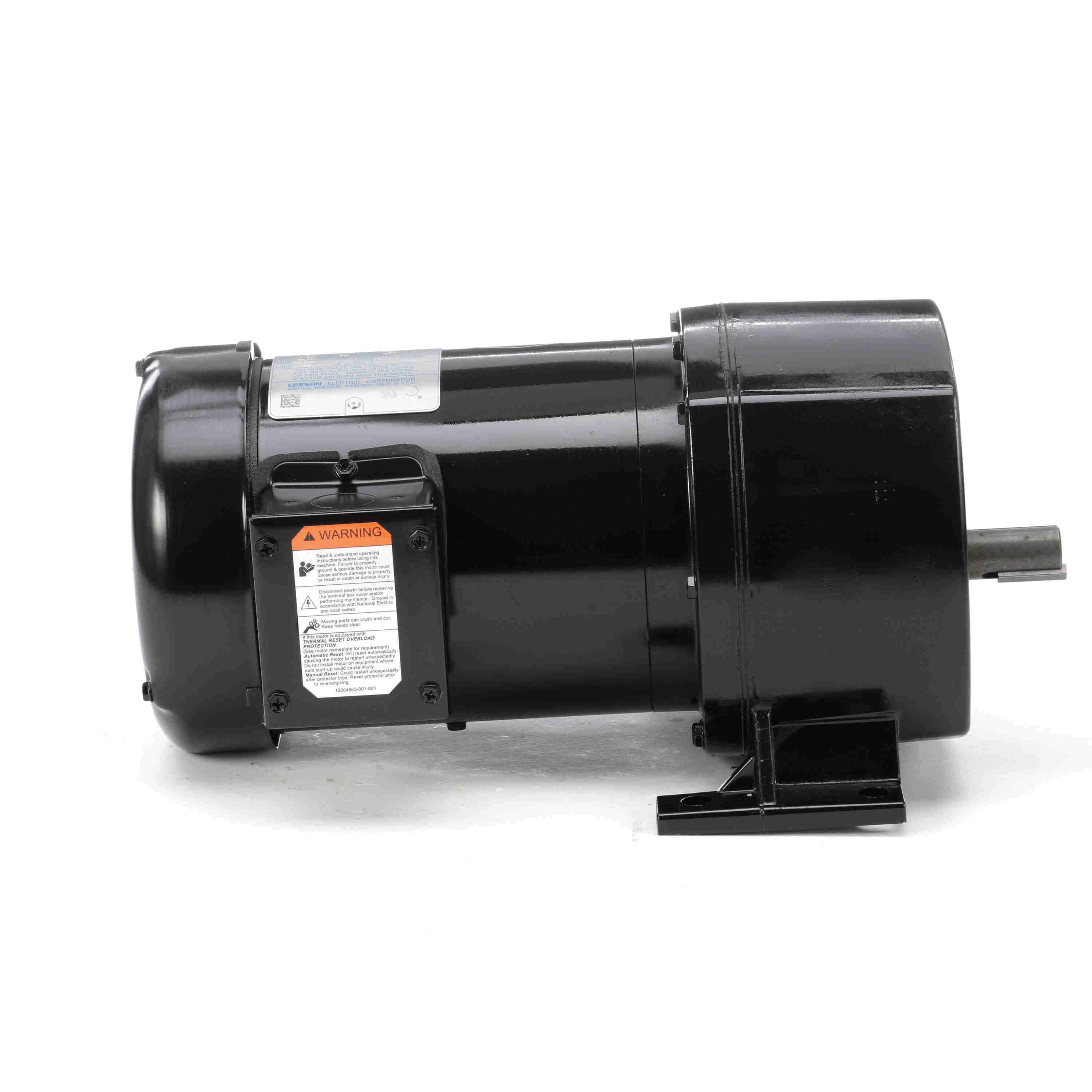

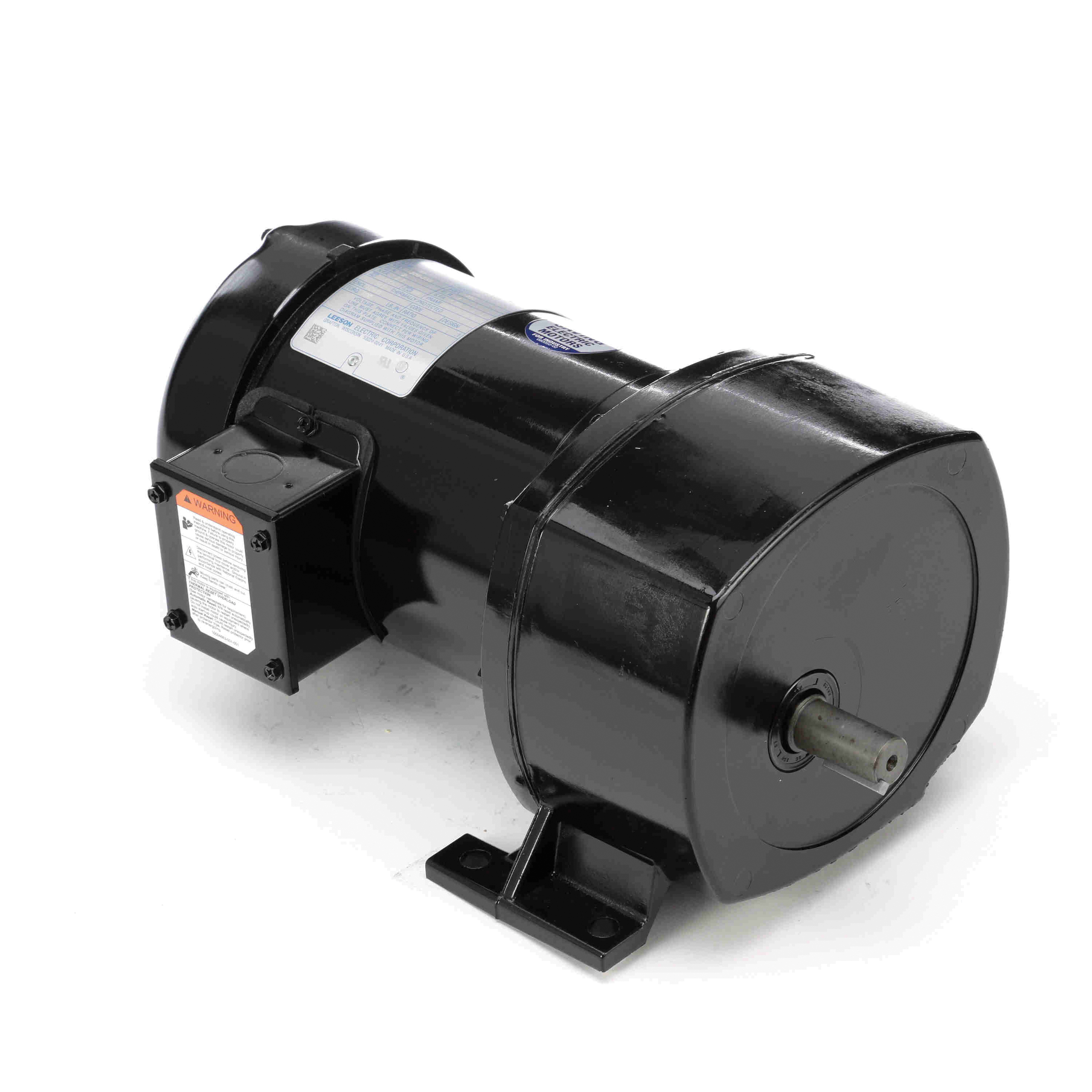

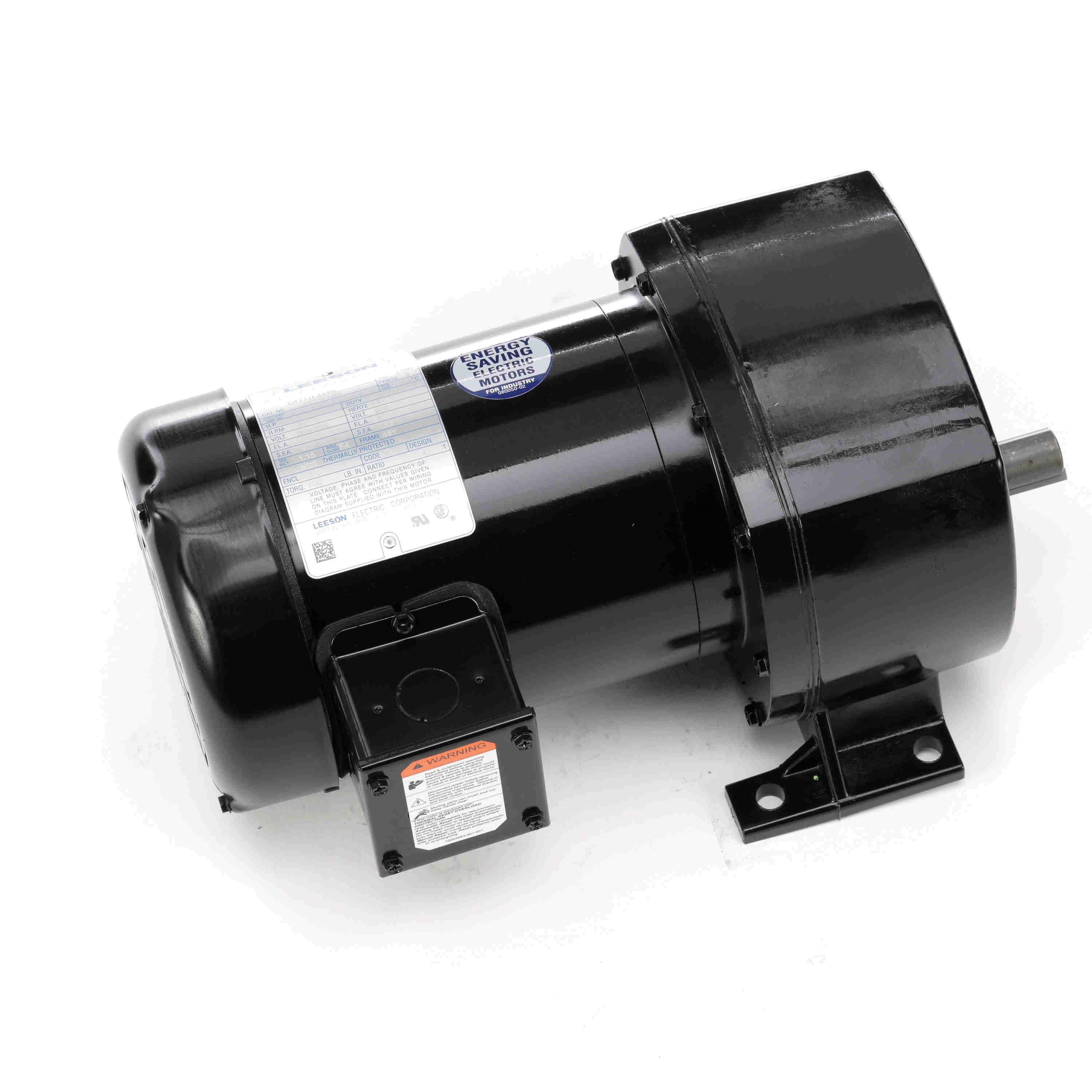

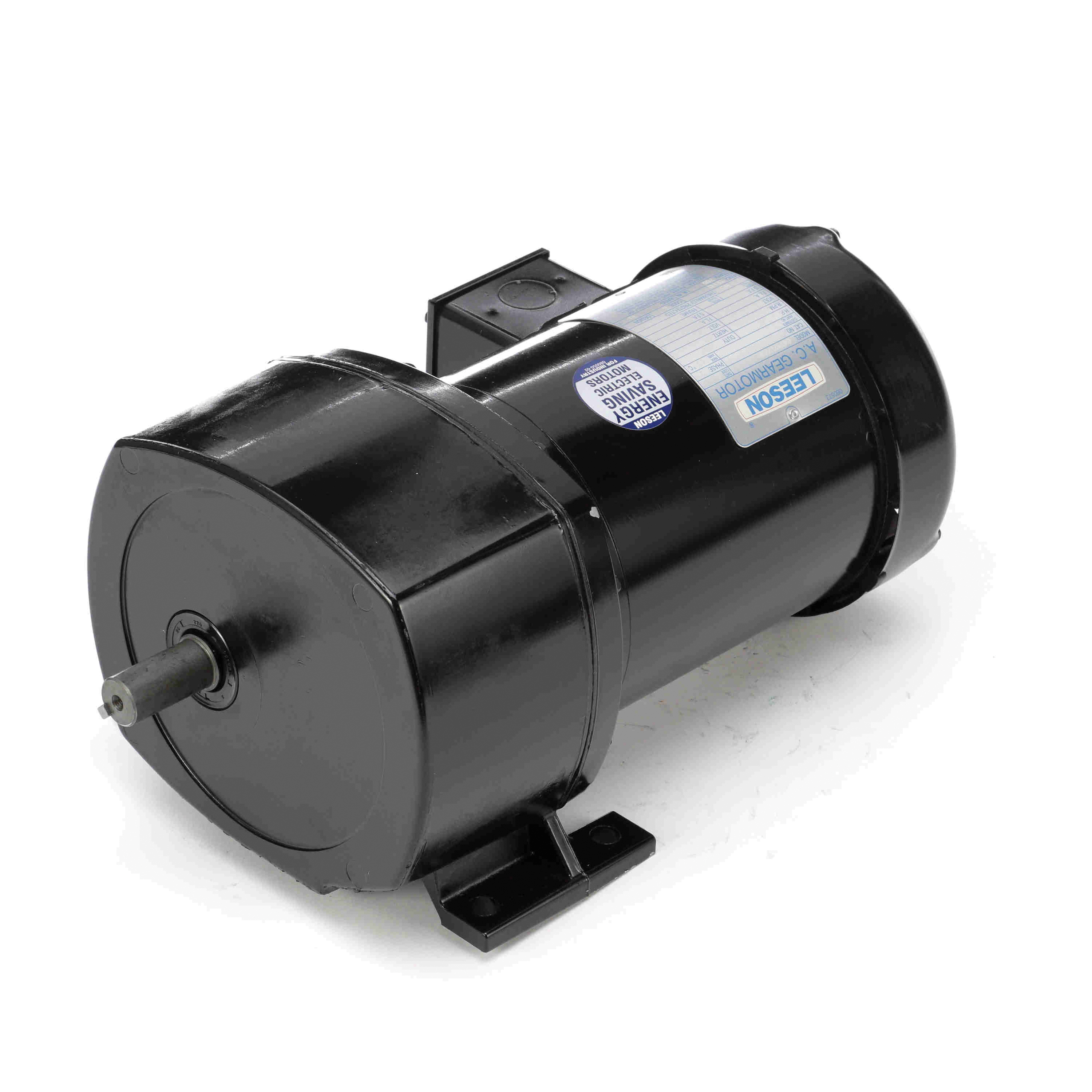

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P1100, 208 to 230/460 VAC, 2/1 A Full Load Amperage, 0.5 hp, 60/50 Hz Frequency, 3 ph, 41 rpm Maximum, 3/4 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 700 in-lb Torque, 42:1 Gear Ratio, Right-Angle Capacitor Start Motor, Ball Bearing, 650 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Die Cast Aluminum Housing Material, 13.42 in L x 8.13 in W x 7.69 in H Dimensions

• Rugged die cast aluminum gear housing for maximum gear and bearing support
• Precision machined gearing and hardened for maximum load capability
• All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%
• Oversized output bearings for greater overhung load capacity and long life
• High carbon alloy output shaft provides maximum strength and rigidity
• All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
• Heavy duty industrial oil seals keep lubricant in and dirt out
• Gears and bearings are splash lubricated with permanent, heavy duty gear oil
• Fractional horsepower AC motors
