Browning®
767912

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

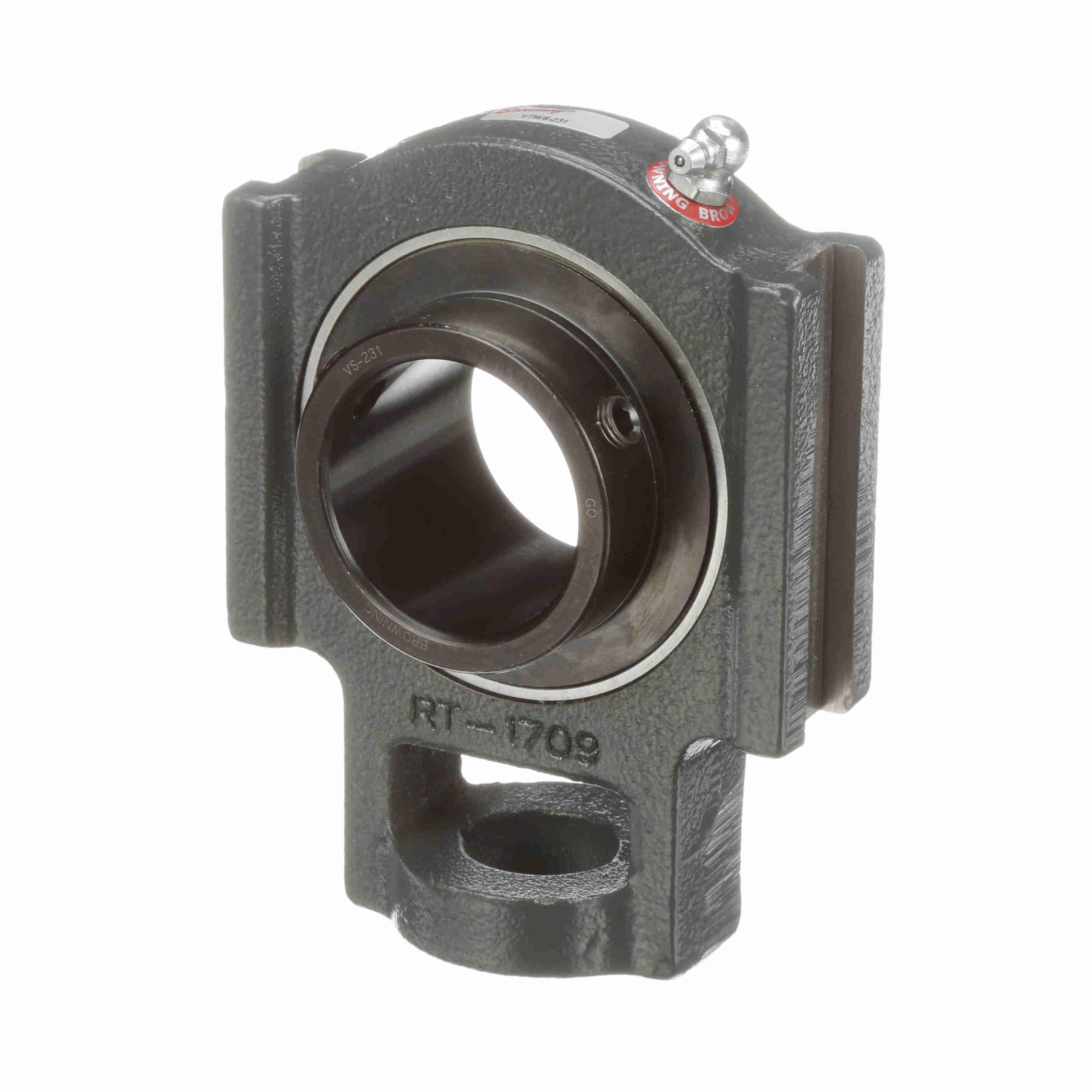

Browning® Take-Up Ball Bearing Unit, Non-Expansion Normal Duty, Series: VTWS 200, 1-15/16 in Bore Dia, 5-29/32 in Length, 2-1/8 in Width, 4-1/2 in Height, 7889 lb Dynamic/5216 lb Static, For Use With: 18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frame, Steel Bearing, -20 to 200 deg F, Gray Painted

• Spherical outer diameter bearing insert
• 120 deg spaced, balanced 3-point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation, within the housing
• The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Semi-solid housing base
• Wide slot take-up housing type
• Sealmaster® has the industry's widest outer ring
• The Sealmaster® exclusive locking pin and dimple system provides a direct lubricant path into the bearing cavity and ball path instead of around a lubrication groove
• Sealmaster® incorporates a unique heat treat process that hardens the inner race only where it is needed under the ball path
• The Sealmaster® unique land riding metal retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
