DICHTOMATIK 5X16X6SM 5X16X6SM TCOM
Send NoImagePrint
  1. pin-int

DICHTOMATIK
5X16X6SM

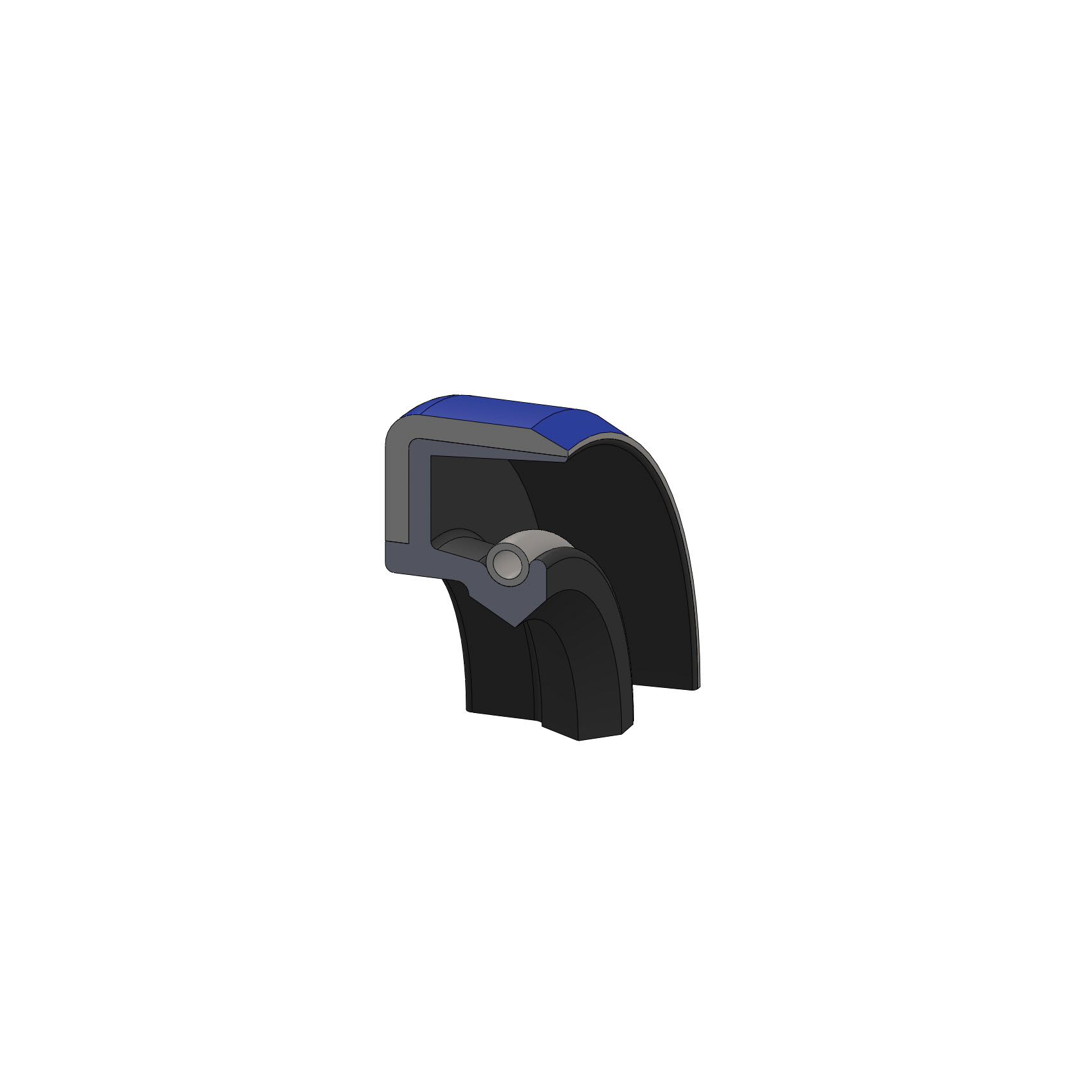

Dichtomatik 5X16X6SM SM Oil Seal, 0.197 in ID x 0.63 in OD x 0.236 in W, Nitrile Lip, 70 Durometer, Import

  • Manufacturer: Freudenberg Sealing Technologies
  • Brand: DICHTOMATIK
  • BSC Item#: 5X16X6SM TCOM
  • MPN: 5X16X6SM
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Oil seals or shaft seals cover a wide variety of applications including axles, engines, trailers and high-pressure environments. Generally oil seals are used to seal around a rotating shaft and provide protection from dirt intrusion while retaining an oil-based lubricant within the shaft.

Dichtomatik Oil Seal, SM, 0.197 in Inside Dia, 0.63 in Outside Dia, 70 Durometer, 0.236 in Width, -40 to 225 deg F, Nitrile Lip, Import

  • Low-pressure single lip with garter spring without protection from contaminates
  • Precision ground OD surface with a lead-in chamfer with an additional inner rubber lining
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TCM_20231SM_Catalog.pdf
Standard/Approvals      :      ISO 9001 Certified|UL Listed
Application      :      Gearboxes, Pumpjacks, Pumping Units and Artificial Lift Systems
