Boston Gear®
G466Y

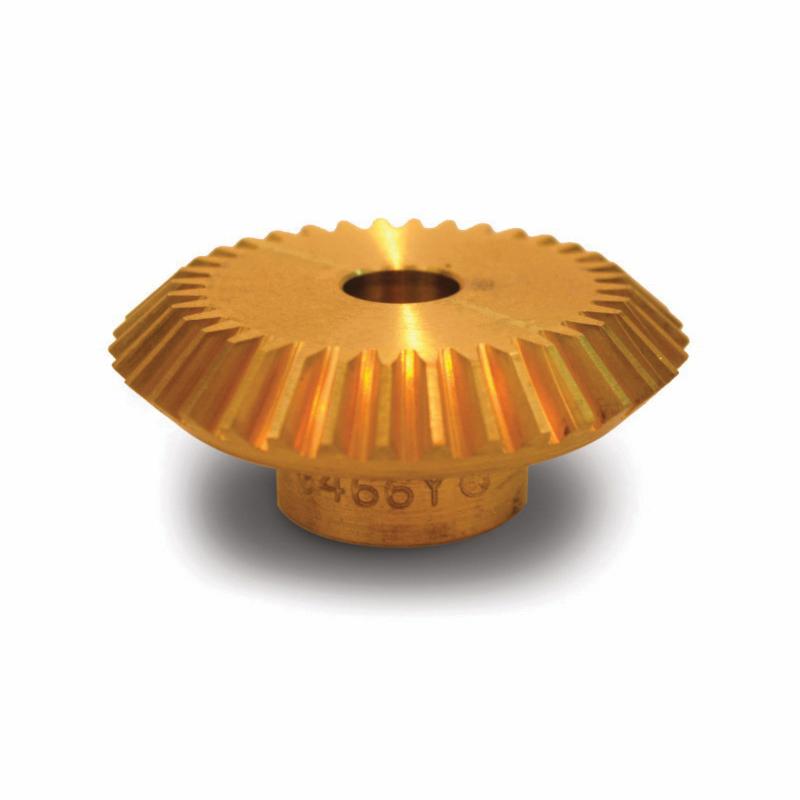

Boston Gear® G466Y Straight Tooth Miter Gear Without Keyway or Setscrews, 24 Pitch, Right Hand Rotation, 20 deg Angle, 36 Teeth, 1-1/2 in Pitch, 0.23 in Face, 0.313 in Bore, Brass

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: G466Y BGW
  • MPN: G466Y
  • UPC: 781711121047
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.

Boston Gear® Miter Gear Without Keyway or Setscrews, Straight Tooth, 0.313 in Bore Dia, 1.56 in Outside Dia, 1:1 Gear Ratio, 36 Teeth, 24 Diametral Pitch, 1-1/2 in, 0.23 in Face Width, Right Hand Direction of Rotation, 0.69 in Hub Dia, 0.31 in Hub Projection, 20 deg Pressure Angle, Brass

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_1118AF12_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_G478YG_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      For use with 90 deg intersecting shaft
