TB Wood's®
5S1116

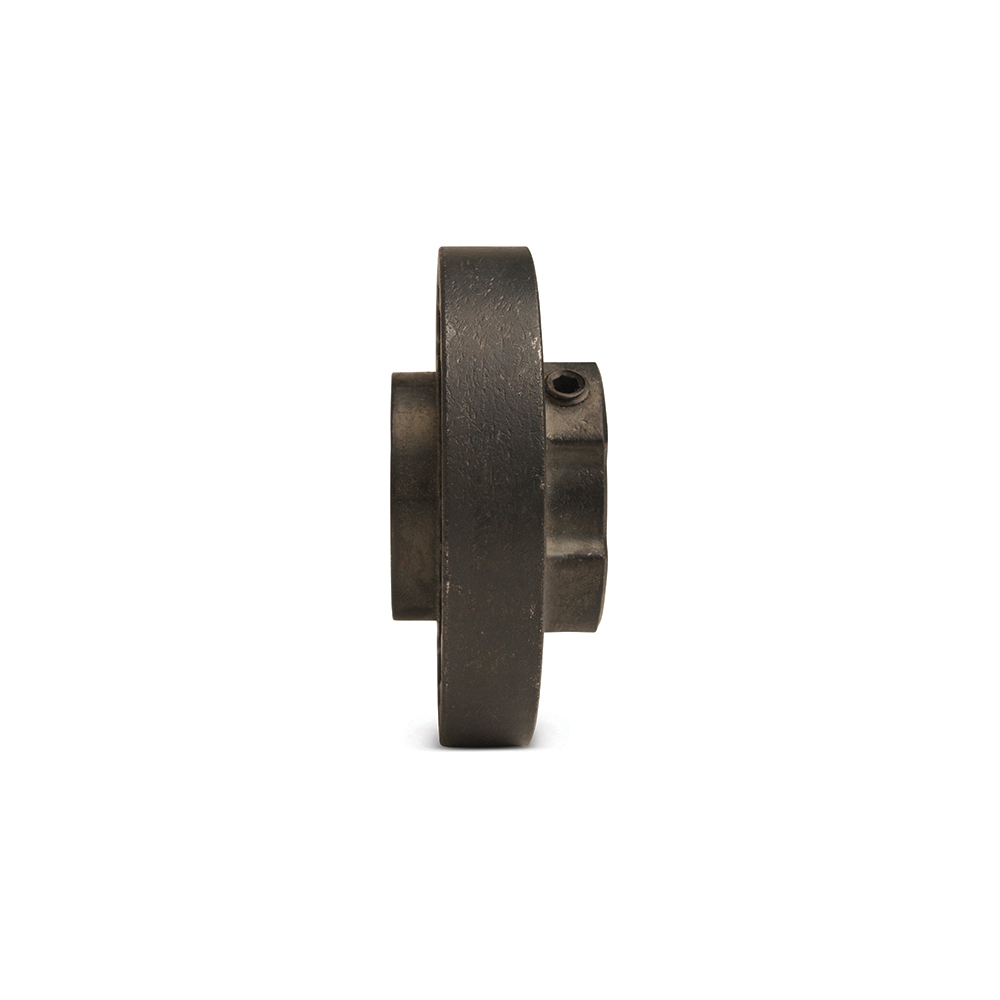

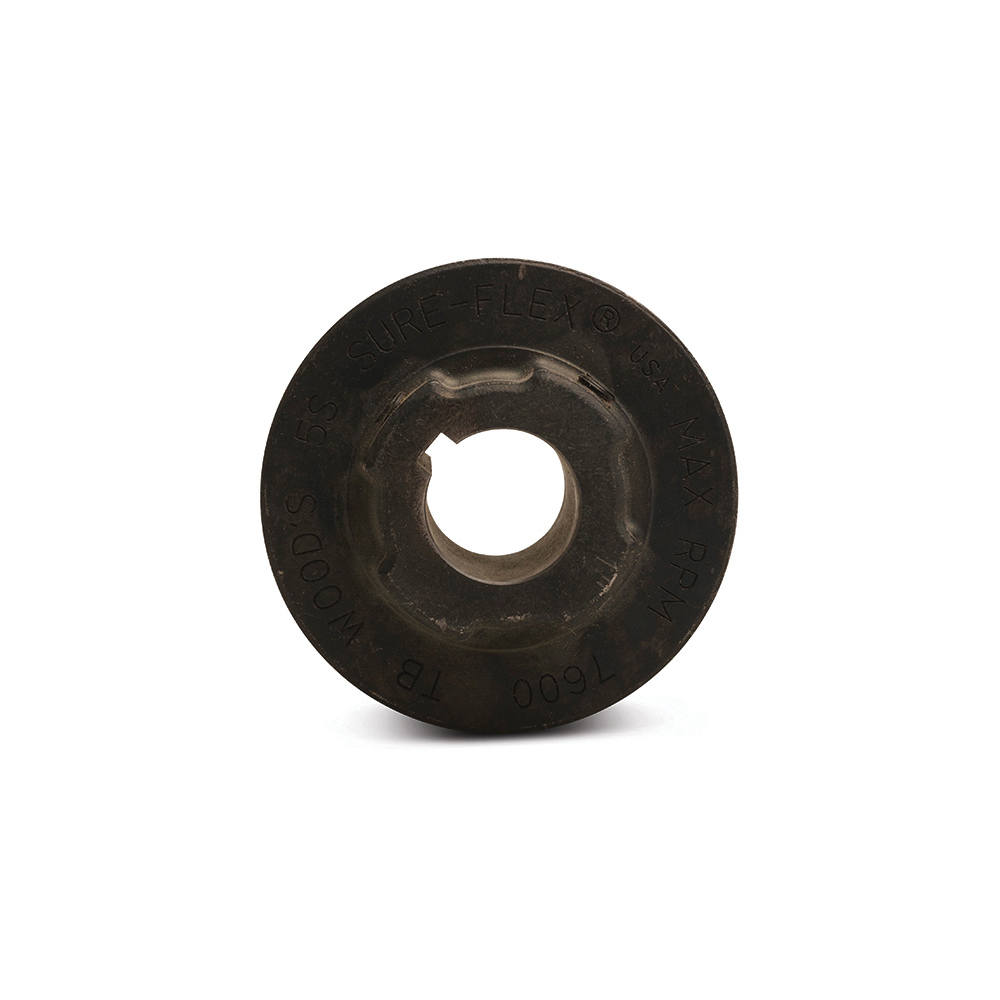

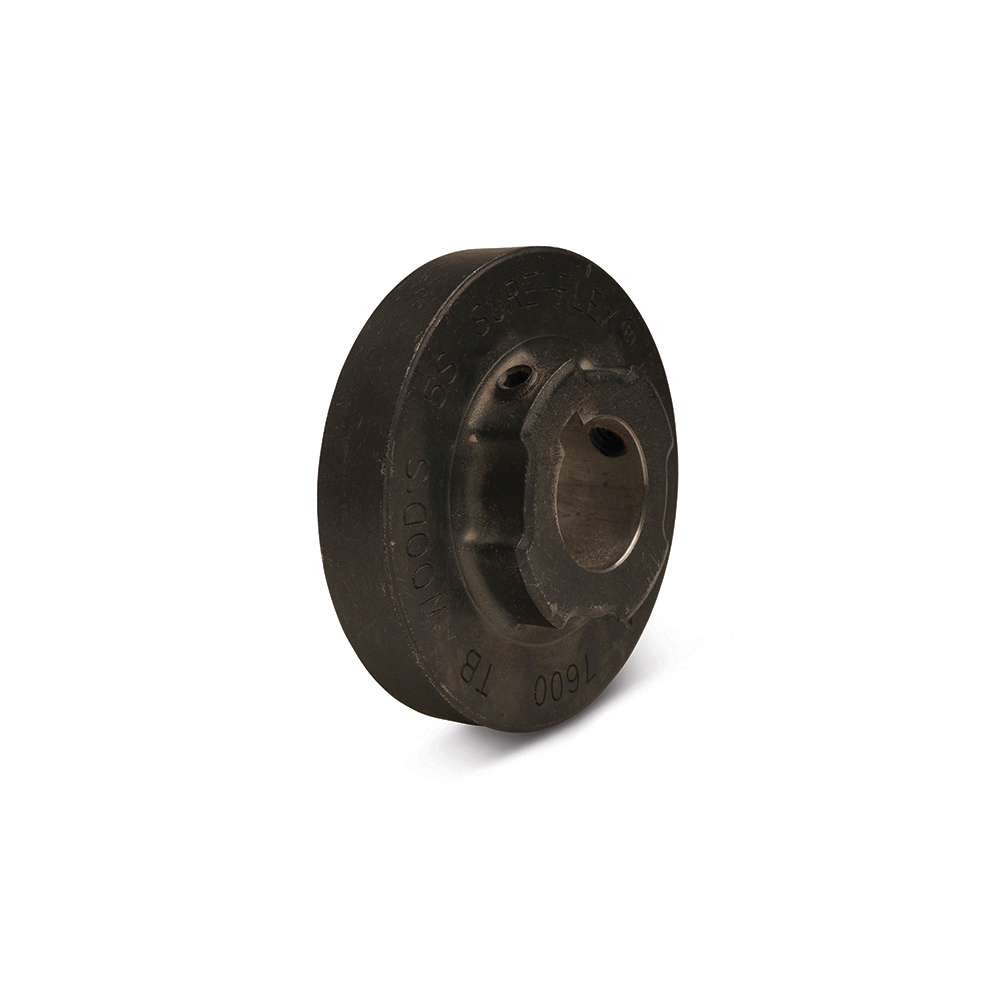

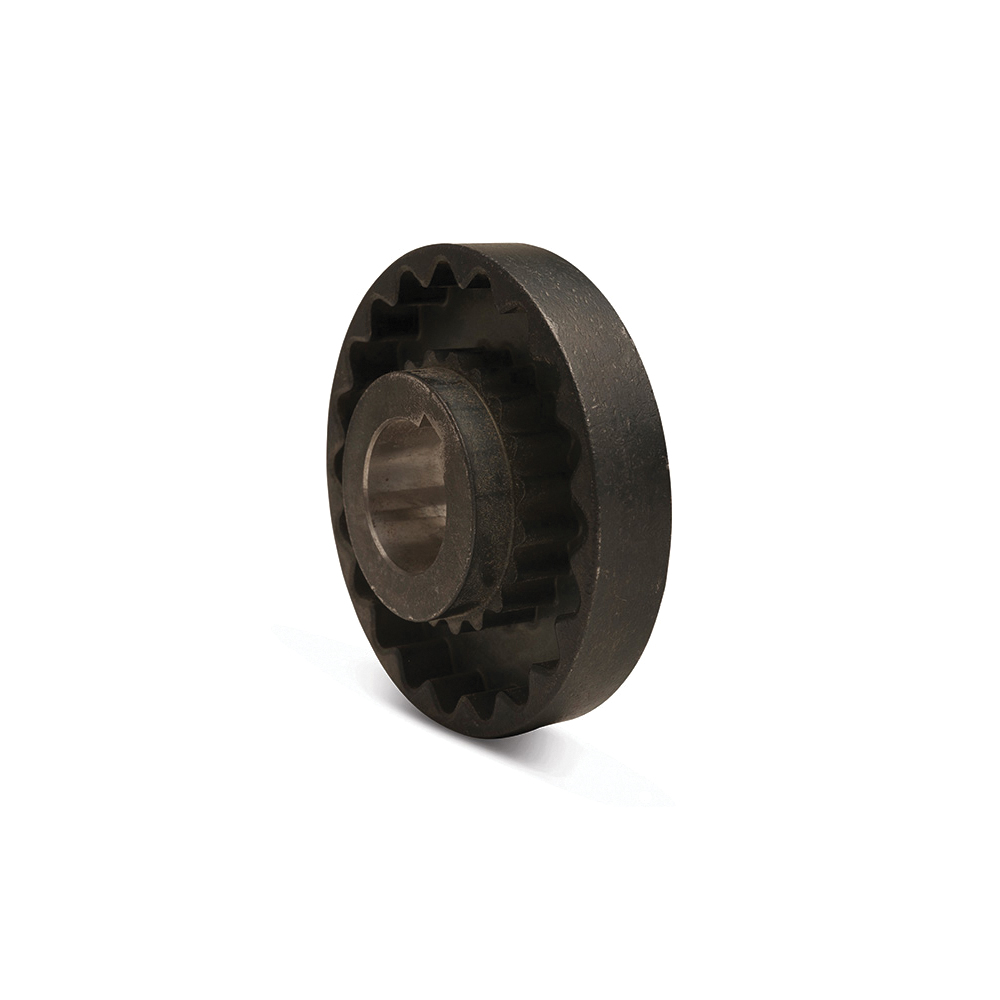

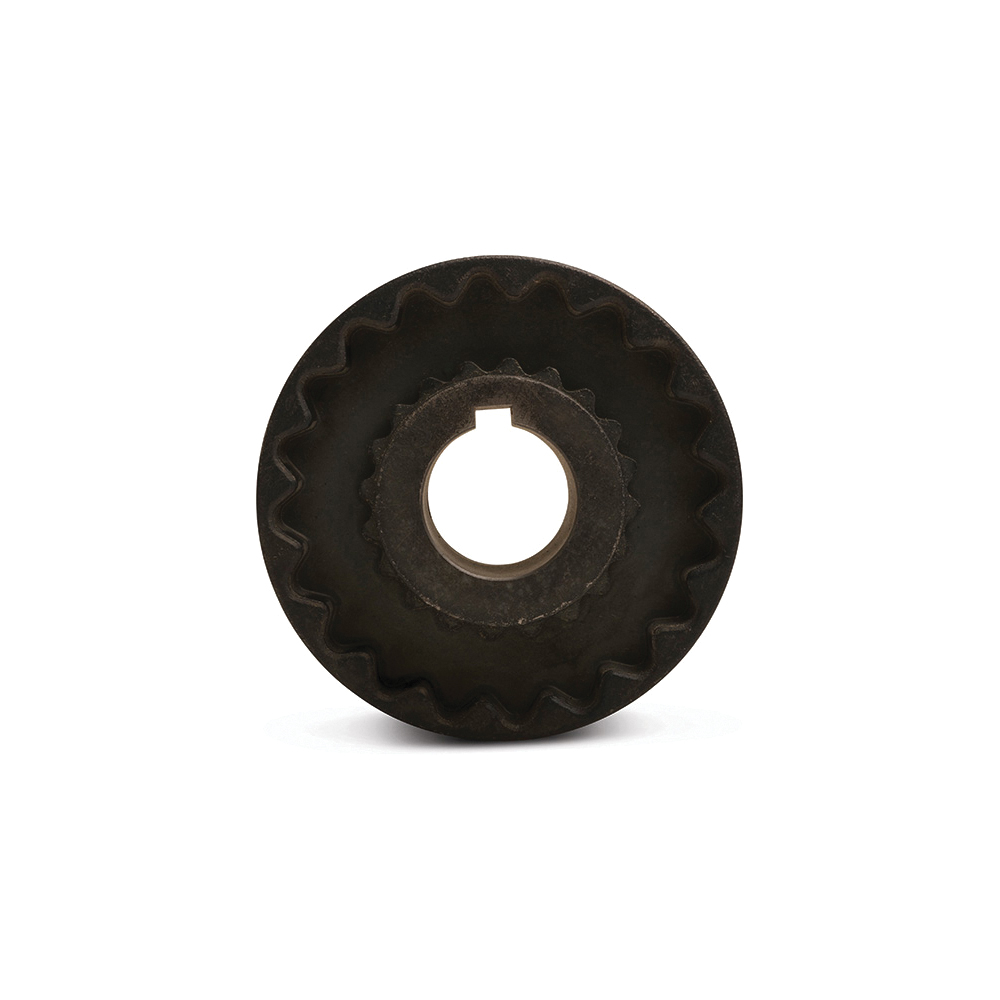

TB Wood's® Sure-Flex® Plus 5S1116 Bore-To-Size Type S Sleeve Coupling Flange, 05 Coupling, 1-1/16 in Bore Dia, 1-11/32 in Length Through Bore, 1-7/8 in Hub Dia, Sintered Carbon Steel

  • Manufacturer: Regal Rexnord
  • Brand: TB Wood's®
  • BSC Item#: 5S1-1/16 WOOD
  • MPN: 5S1116
  • UPC: 698672640084
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Type S flanges sizes 6 through 16 are manufactured of high strength cast iron then bored-to-size for slip fit on standard shafts. Size 5 is made of sintered carbon steel. Flanges are easy to install and remove, and are stocked in a wide range of bore sizes. All sleeve materials may be used with type S flanges.

TB Wood's® Sure-Flex® Plus Sleeve Coupling Flange, Bore-To-Size Type S, 05 Coupling, 1-1/16 in Bore Dia, 1-7/8 in Hub Dia, 29/64 in Hub Length, 1/4 x 1/8 in Keyway, 7600 rpm Maximum, 1-11/32 in Length Through Bore, 5/16-18 UNC x 5/16 in L Setscrew Screw, Sintered Carbon Steel

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TB_Woods_1020T12_Catalog.pdf
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TB_Woods_10_Manual.pdf
Standard/Approvals      :      ATEX Compliant|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      For use with Sure-Flex Plus® elastomeric couplings and close coupled applications
