Browning® 1111863 50T45L26 BRWN
Send NoImagePrint
  1. pin-int

Browning®
1111863

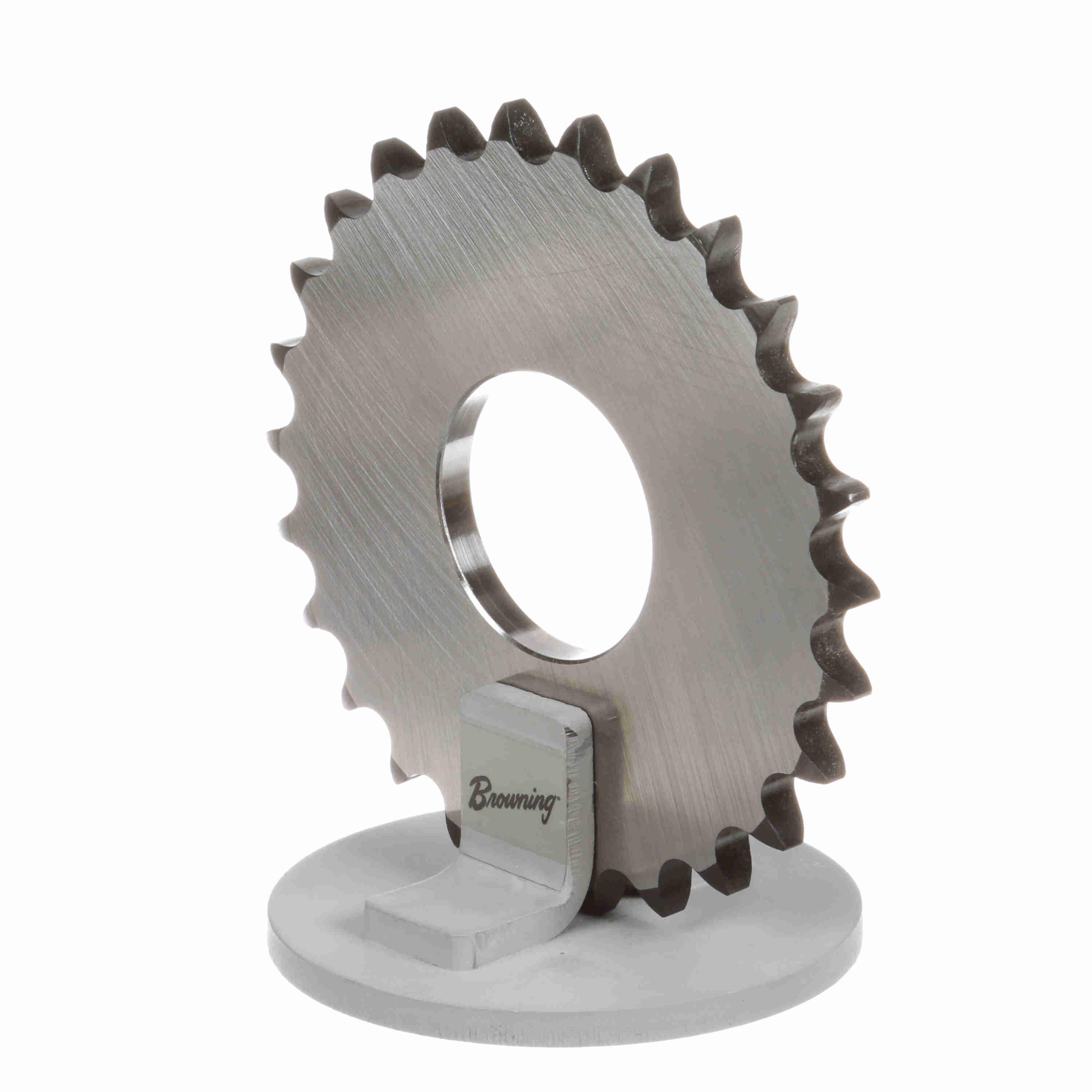

Browning® 1111863 A Plate Sprocket, 50 Chain, 26 Teeth, For Use With T45L Torque Limiters, 5.52 in OD

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 50T45L26 BRWN
  • MPN: 1111863
  • UPC: 662289242139
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® Sprocket, A Plate, 50 Chain Number, 26 Teeth, For Use With: T45L Torque Limiters, 5.52 in OD, 5.185 in Pitch Diameter, 0.343 in Thickness

  • Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
  • Stock sprockets supplied with ground faces to fit the Browning torque limiter
  • Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
  • Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1296433_Installation_Manual.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
