Martin 5 5V 1400 TB

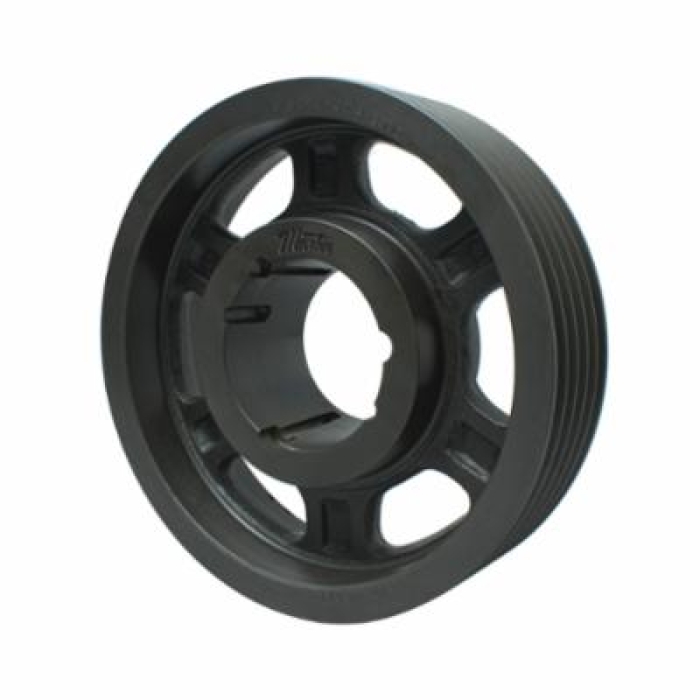

Martin Hi-Cap® 5 5V 1400 TB Web Wedge Stock Sheave, 1.188 to 3.5 in TB Bushed Bore, 14 in OD, 5 Grooves, 13.9 in Dia Pitch, 3-3/4 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 5/5V1400TB
- MPN: 5 5V 1400 TB
- UPC: 697950156965
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 65 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 50 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Web, TB Bushed Bore, 1.188 to 3.5 in Bore, 14 in OD, 13.9 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, 3535 Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron
| Type | : | Web |
| Bore Type | : | TB Bushed |
| Bore Diameter | : | 1.188 to 3.5 in |
| Outside Diameter | : | 14 in |
| Pitch Diameter | : | 13.9 in |
| Number of Grooves | : | 5 |
| Face Width | : | 3-3/4 in |
| Bushing Type | : | 3535 |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Material | : | Cast Iron |
