Sealmaster®
700512

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

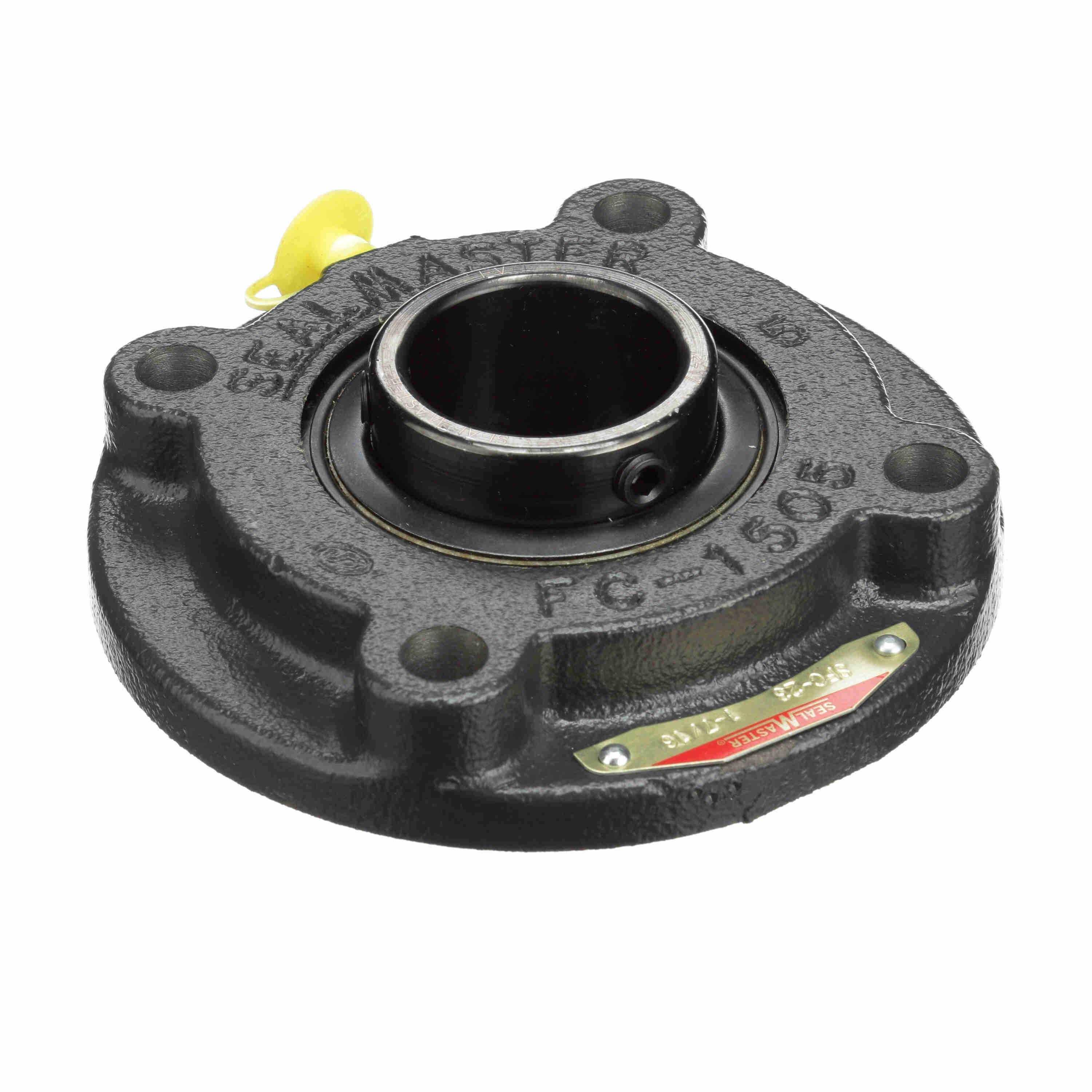

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Straight Standard-Duty, Series: SFC, 1-7/16 in Bore, 4-1/8 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 5 in Overall Length/Diameter, 1-5/16 in Overall Depth, Set Screw Locking Device, Steel Bearing, Felt Seal, 5782 lb Dynamic/3493 lb Static Load, 4650 rpm Maximum, -20 to 250 deg F, Uncoated

• Wide outer ring
• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• GoldPlex-HP grease
• 52100 black oxide coated steel bearing
• Stamped steel rubber mounted flange
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700171_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_SFC19_Specification_Sheet.pdf
