Formsprag Clutch®
AS12

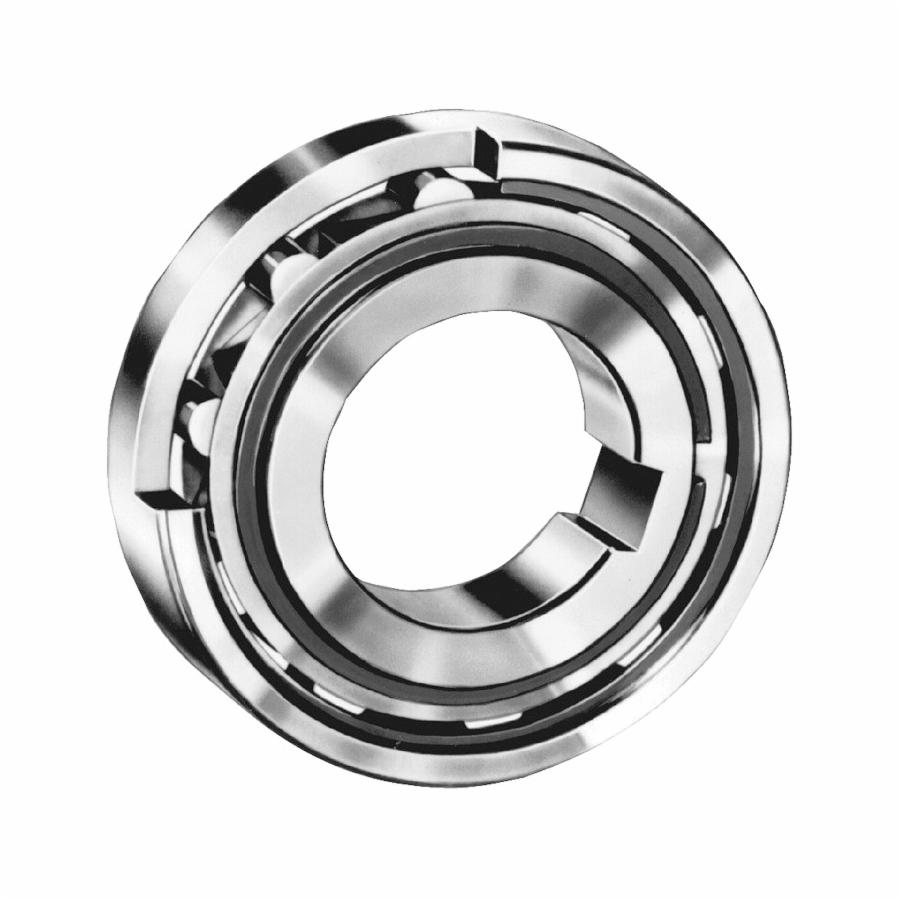

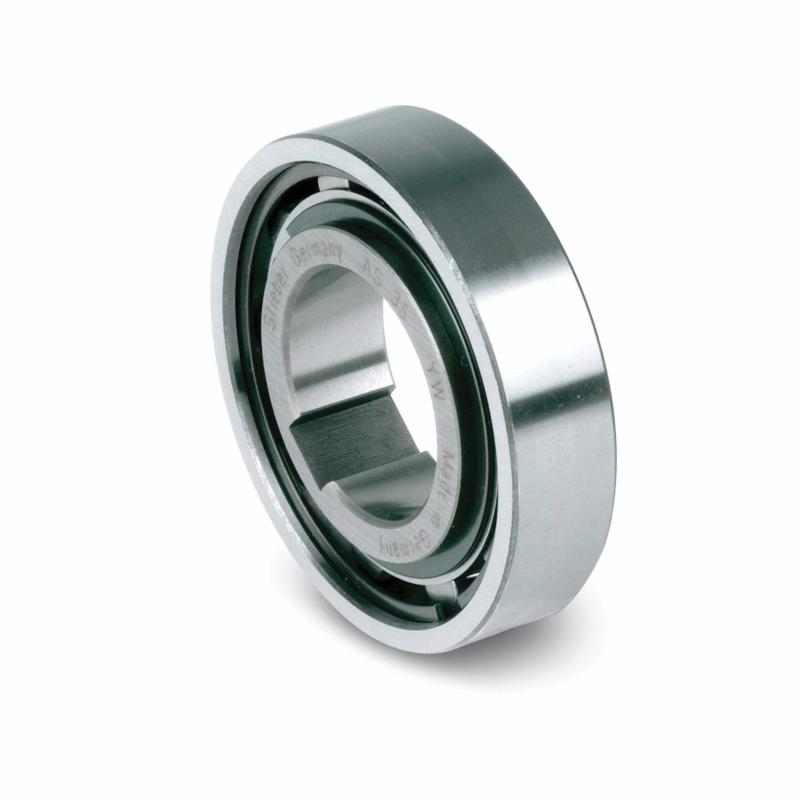

Model AS is a ramp and roller type clutch, non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing are required. Nominal outside dimensions are the same as a series 62 ball bearing.

Formsprag Clutch® Ramp and Roller Clutch, Series: AS Series, 12 mm Bore, 32 mm OD, 10 mm Overall Length, 10 ft-lb Torque, 3200 rpm Inner/4800 rpm Outer Race Maximum, Vertical (Zero-U) Mounting

• The outer race has positive n6 tolerance, to give a press fit in a H7 housing, additional side notches in the outer race provide positive torque transmission
• Can accept an axial misalignment of inner and outer race of +/- S/2
• These clutches are oil dipped at the factory but must be filled to the proper level before operation
• This clutch is designed for oil lubrication
• External bearing required design
• Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg
• The inner race is keyed to the shaft
