Sealmaster®
700740

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.

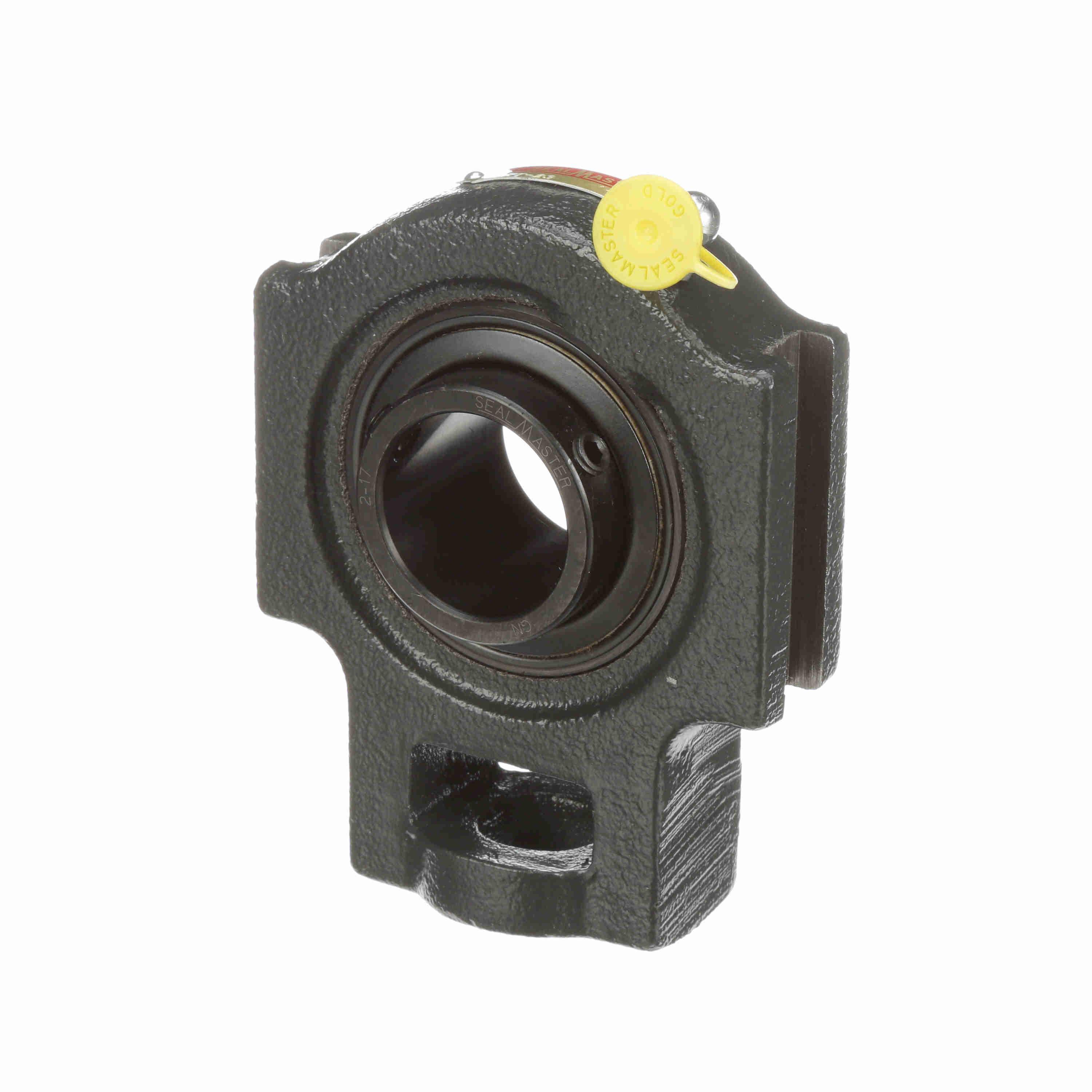

Sealmaster® Take-Up Ball Bearing Unit, Non-Expansion Standard Duty, Series: ST Series, 1-7/16 in Bore Dia, 5-1/16 in Length, 1-3/4 in Width, 4 in Height, 5782 lb Dynamic, For Use With: STH-23 Center Pull Take Up Frames, Steel Bearing, -20 to 220 deg F, Uncoated

• Sealmaster® has the industry's widest outer ring, the black oxided outer ring is 20 to 30% wider than industry standard outer rings
• 120 deg spaced, balanced 3-point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Solid housing base
• Take up housing type
• The Sealmaster® exclusive locking pin and dimple system provides a direct lubricant path into the bearing cavity and ball path instead of around a lubrication groove
• The standard felt seal provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Sealmaster® incorporates a unique heat treat process that hardens the inner race only where it is needed under the ball path
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews
