Brewer Universal Drive Tensioner
SO1

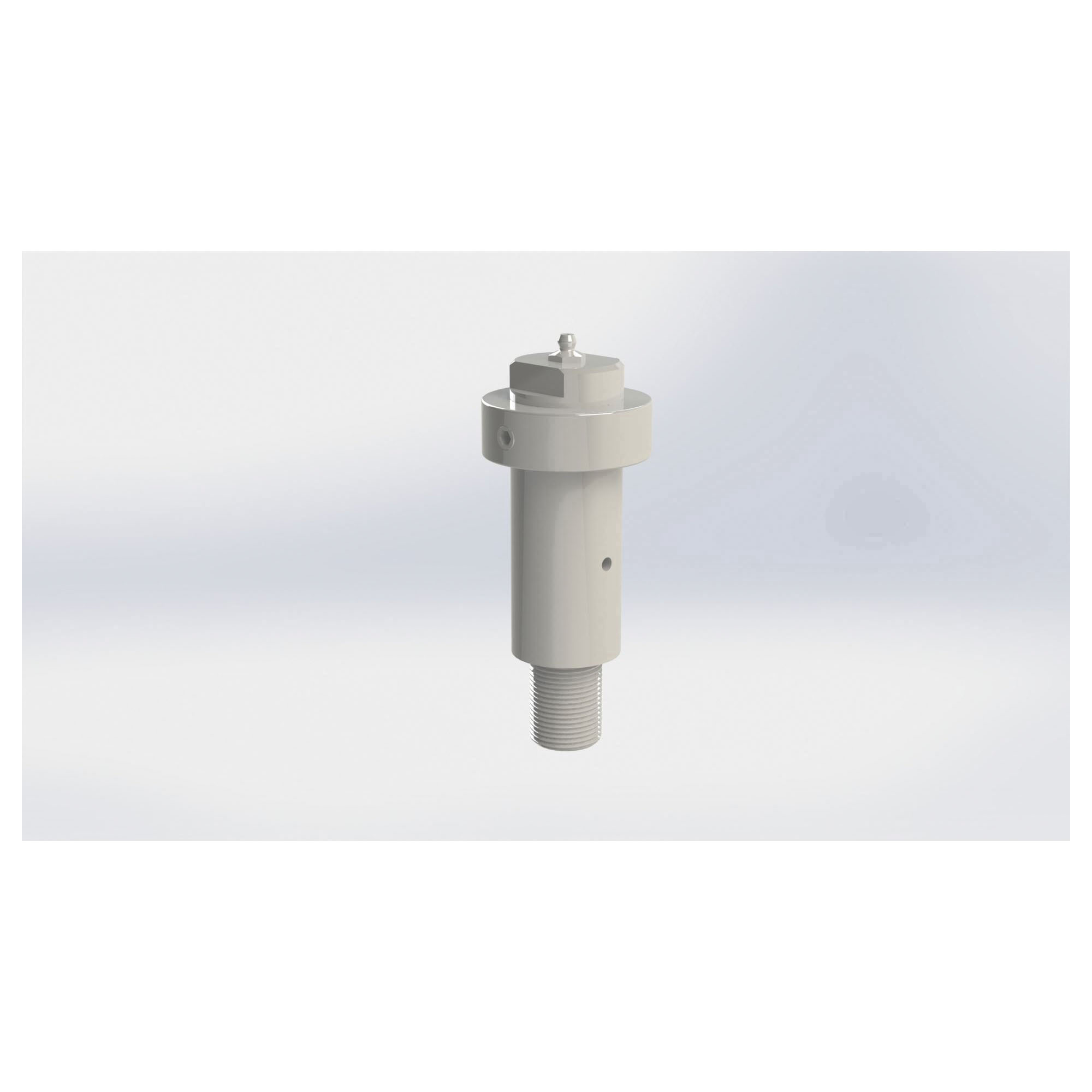

Brewer Universal Drive Tensioner SO1 Idler Shaft, 1/2 in Dia x 1-1/2 in L Shaft, 2.288 in OAL

  • Manufacturer: Brewer Machine and Gear
  • Brand: Brewer Universal Drive Tensioner
  • BSC Item#: SO1 BREW
  • MPN: SO1
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Brewer idler shafts are hardened and ground for maximum idler life. To ensure maximum rigidity, they are shouldered and threaded into units and locked with a setscrew.

Brewer Universal Drive Tensioner Idler Shaft, Series: SO Series, 1-1/2 in Shaft Length, 1/2 in Shaft Diameter, 2.288 in Overall Length, 3/8-16 UNF Thread, 7/16 in Thread Length, For Use With: Model SS S Series Base Mount Drive Tensioners, Model AS A Series Shaft Mount Drive Tensioners, Model HS H Series Screw Adjustment Drive Tensioners, Model LS L Series Slide Adjustment Drive Tensioners, Model GS G Series Flange Mount Drive Tensioners and Model RS R Series Angle Mount Drive Tensioners, Steel
