Sealmaster®
704265

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

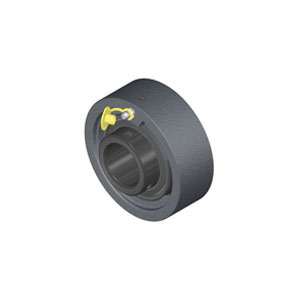

Sealmaster® Ball Bearing Cartridge, Medium Duty Non-Expansion, Series: MSC, 1-3/4 in Bore, 4.563 in OD, 2.031 in Width, 7889 lb Dynamic/5216 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 3550 rpm Maximum, 250 deg F, Black Oxide Coated

• Cylindrical cartridge housing unit
• Setscrew locking
• Zone hardened inner race
• Wide outer race
• Lock pin and dimple system
• Land riding retainer
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Cast iron housing
• Single lip contact seal type
• Without seal flinger

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
