Browning®
1070192

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

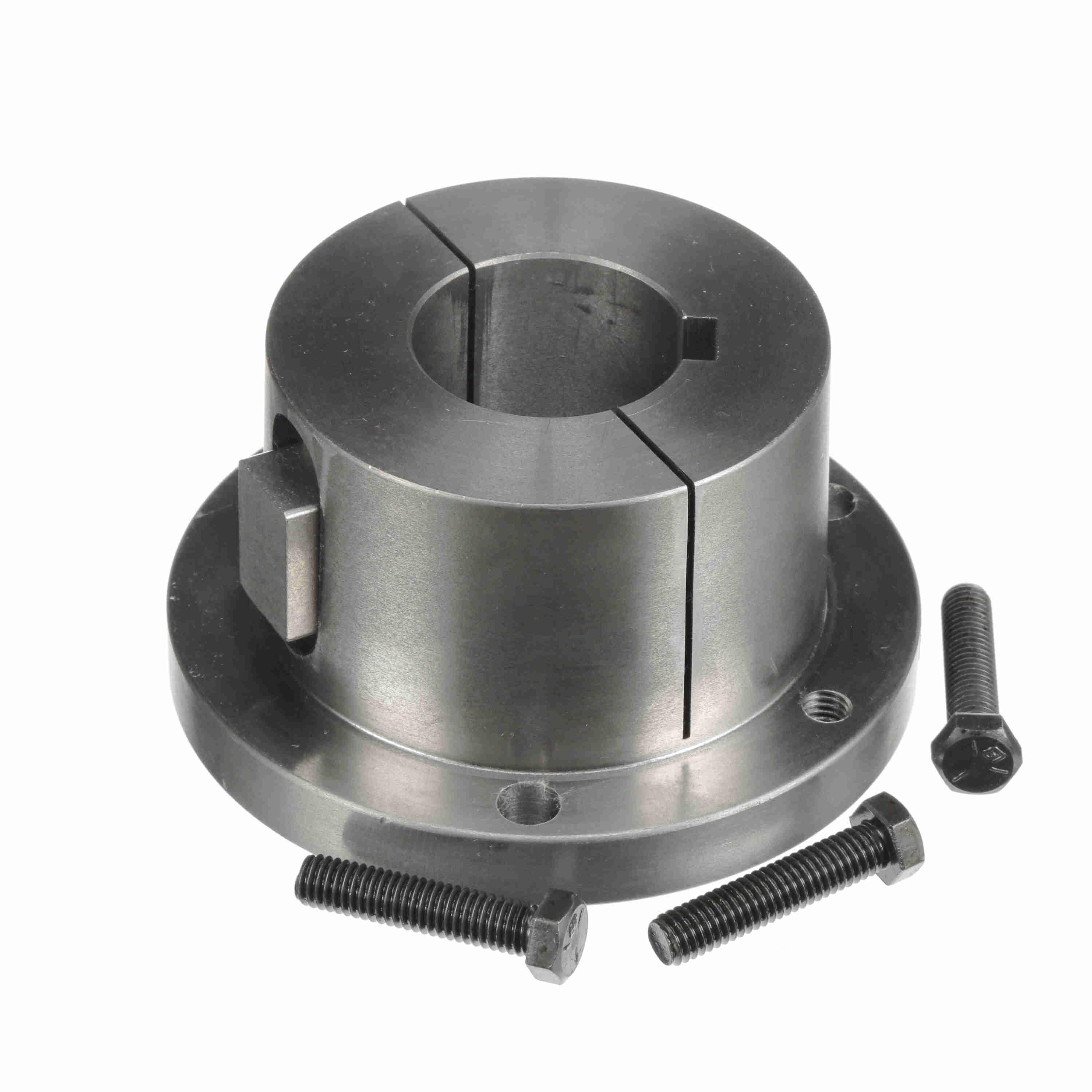

Browning® Split Taper Bushing, 1-7/8 in Bore Dia, 3-7/8 in Small End/4 in Large End Barrel Dia, 4-5/8 in Bolt Circle, 5-3/8 in Flange Dia, 5/8 in Flange Thickness, 3 Bolt Holes, 3/8 x 1-3/4 in Screw, For Use With: Browning® Multiple Groove Sheave, 2-7/8 in Overall Length, 1/2 x 1/4 in Keyway, Steel

• Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
• Highest torque carrying capacity in the Browning® bushing product line
• Double split barrel assures true concentricity grips the shaft with positive clamp fit
• 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1071505_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3694726_Specification_Sheet.pdf
