Browning®
767589

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

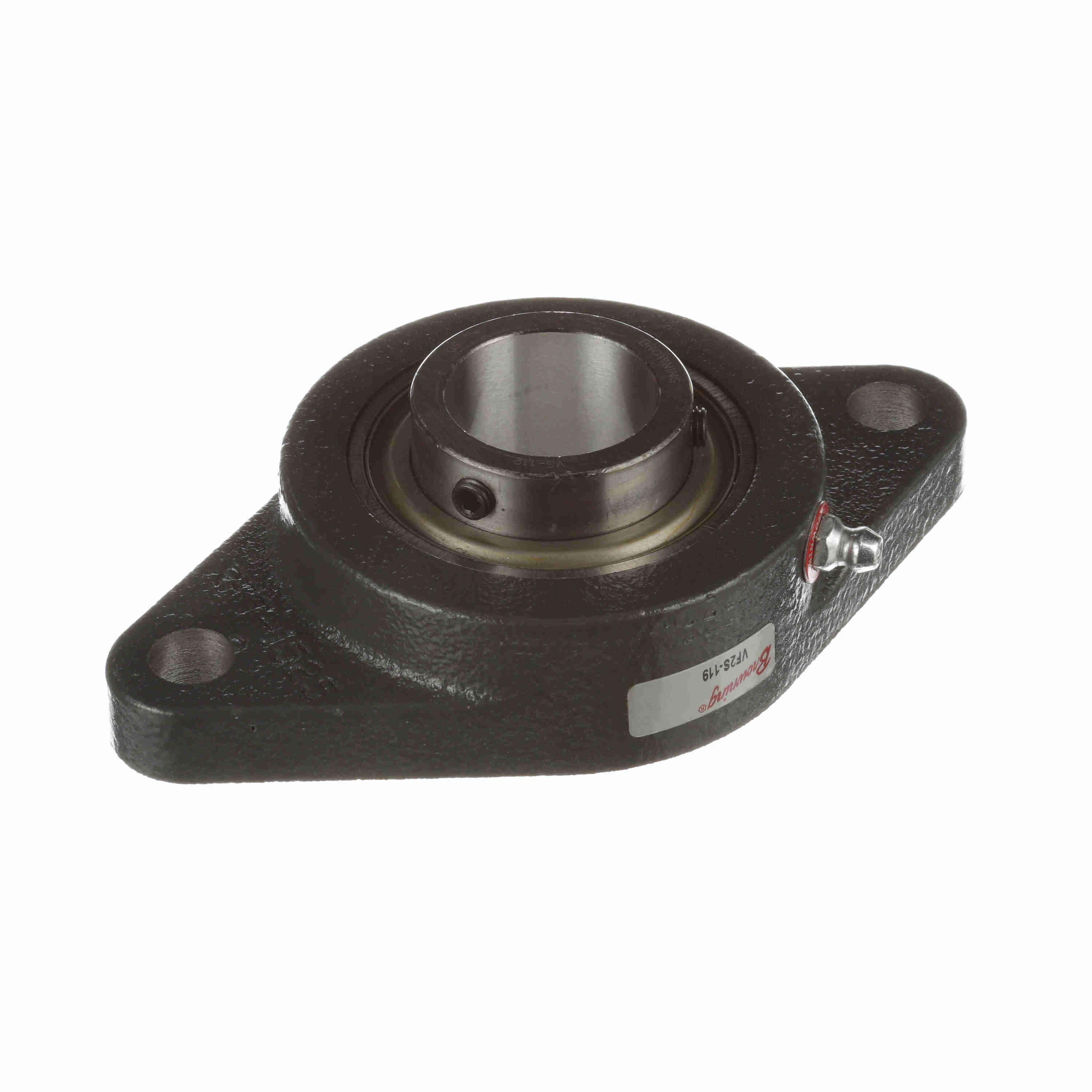

Browning® Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion, Series: VF2S 100, 1-3/16 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-1/8 in Overall Length/Diameter, 1-15/32 in Overall Depth, 5-9/16 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 3000 rpm Maximum, -20 to 200 deg F, Gray Painted

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Zone hardened inner race
• NLGI #2 lithium complex grease
• 52100 steel insert
• Powder coat epoxy cast iron housing
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2S124_Specification_Sheet.pdf
