Sealmaster®
703142

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

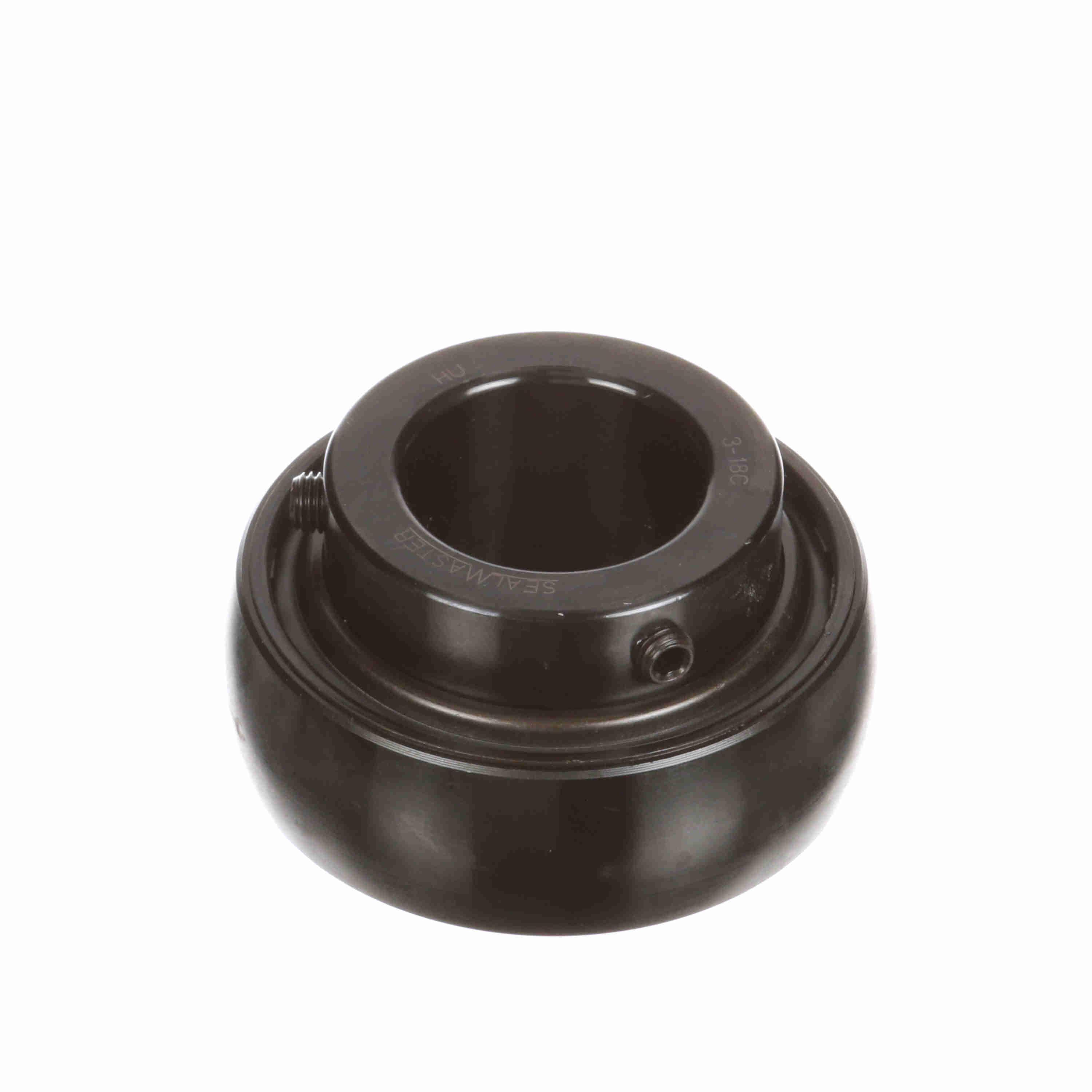

Sealmaster® Ball Bearing Insert, Medium Duty Non-Expansion Straight Bore, 1-1/2 in Bore, 3.347 in OD, 1.938 in Width, Double Seal Closure, 7340 lb Dynamic/4467 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 3800 rpm Maximum, 250 deg F, Black Oxide Coated

• Setscrew locking
• Contact seal type
• Lithium complex NLGI #2 grease with an EP additive
• Zone hardened inner race
• Wide outer race
• Lock pin and dimple system
• Land riding retainer
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Without seal flinger

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
