LEESON®
111953.00

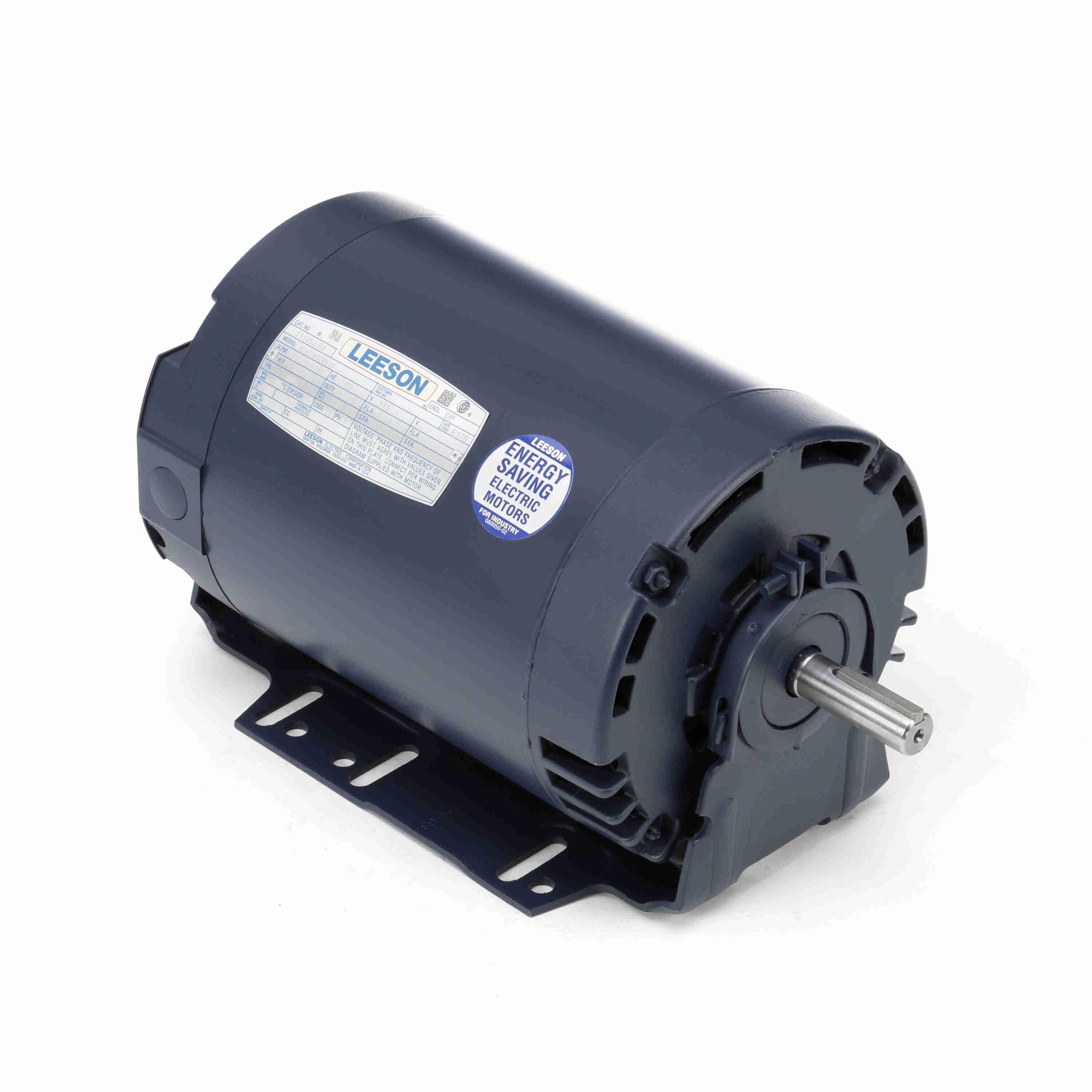

LEESON® AC Motor, 4 and 6 Pole Continuous Duty, Application Type: General Purpose HVAC Motors, 0.5 hp, 115 VAC, 7.8 A, 60 Hz, 1 ph, 1725 rpm, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, 24 ft-lb, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 6.53 in Dia x 12.32 in L x 6.73 in H

• Can be mounted within or outside the fans airstream
• Split phase design
• Continuous duty cycle design allows maximum operation at the rated power specifications
• Cradle base offers flexibility when mounting and repositioning the motor
• Suitable for variable torque applications
• Durable rolled steel construction
• NEMA design B performance
• Double shielded ball bearings
• Thermally Protected

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_111953_00_Specification_Sheet.pdf
