Brewer Universal Drive Tensioner
NO2

Brewer idler shafts are hardened and ground for maximum idler life. To ensure maximum rigidity, they are shouldered and threaded into units and locked with a setscrew.

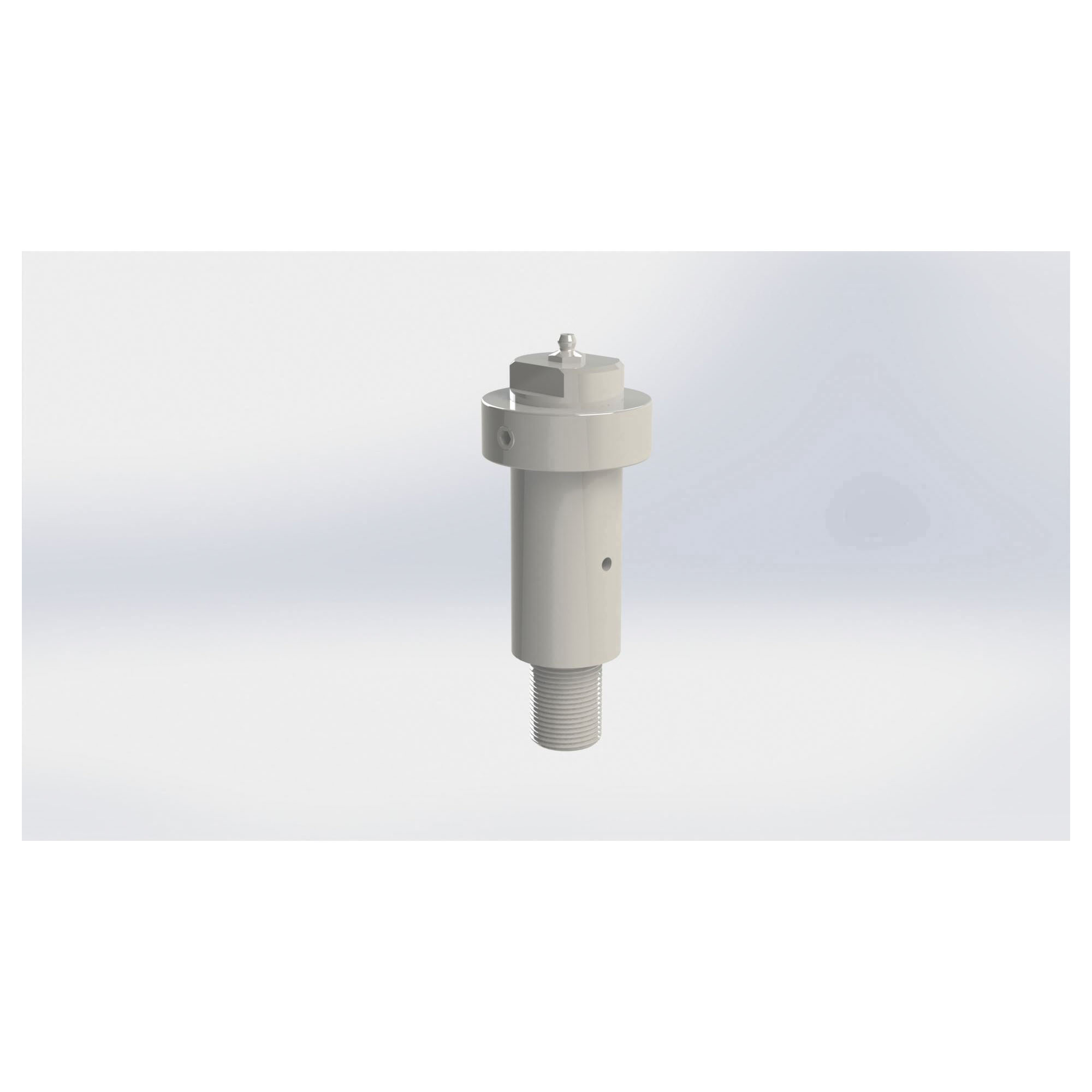

Brewer Universal Drive Tensioner Idler Shaft, Series: NO Series, 2-1/8 in Shaft Length, 1 in Shaft Diameter, 3.349 in Overall Length, 3/4-10 UNC Thread, 7/8 in Thread Length, For Use With: Model AM-3/4-10 A Series Shaft Mount Drive Tensioners, Model GM-3/4-10 G Series Flange Mount Drive Tensioners, Model RM-3/4-10 R Series Angle Mount Drive Tensioners, Steel

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_NO2_Specification_Sheet.pdf
