Formsprag Clutch®
DC7969C(5C)

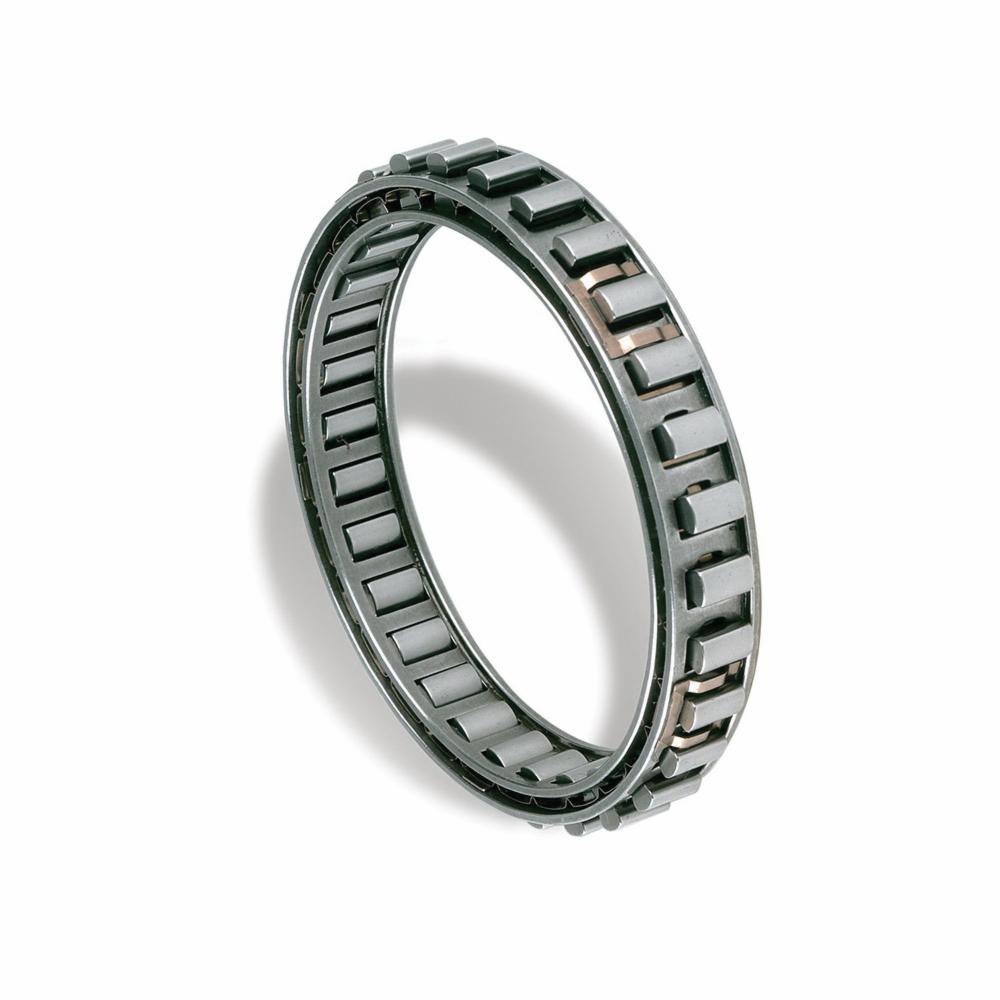

Model DC is a sprag-type dual cage retainer assembly without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

Formsprag Clutch® Sprag Clutch, Series: DC Series, 53 mm Bore, 124 mm OD, 25.4 mm Overall Length, 1504 ft-lb Torque, 2400 rpm Inner/1200 rpm Outer Race Maximum, 79.698 mm ID Inner Race x 96.358 mm OD Outer Race Dimensions

• External bearing support required
• Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_DC2776_Specification_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_HSB7503000_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_HSB7503000_Manual.pdf
