Martin 50BS19 1 1/2 50B19-1-1/2
Send NoImagePrint
  1. pin-int

Martin
50BS19 1 1/2

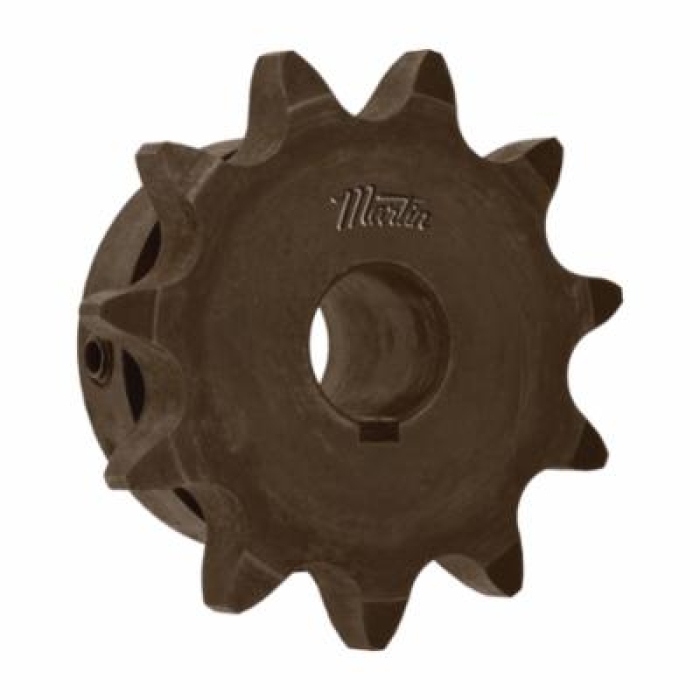

Martin 50BS19 1 1/2 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Keyway, 1-1/2 in Dia Bore, 4.12 in OD, #50 Chain, 19 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 50B19-1-1/2
  • MPN: 50BS19 1 1/2
  • UPC: 697950011486
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1-1/2 in Bore Dia, 4.12 in Outside Dia, #50 Chain, 19 Teeth, 5/8 in Pitch, 3.797 in, 3 in Hub Dia, 3/8-16 x 3/8 in Screw, 3/8 x 3/16 in Keyway, 1 in Length Through Bore, Steel

Type      :      Bored-to-Size Type BS
Bore Diameter      :      1-1/2 in
Outside Diameter      :      4.12 in
Chain Size      :      #50
Number of Teeth      :      19
Pitch      :      5/8 in
Pitch Diameter      :      3.797 in
Hub Diameter      :      3 in
Screw Size      :      3/8-16 x 3/8 in
Keyway Size      :      3/8 x 3/16 in
Length Through Bore      :      1 in
Material      :      Steel
  • Keyway is on center line of tooth
  • Stock finished bores
  • Non-hardened teeth
  • pdf Catalog https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
